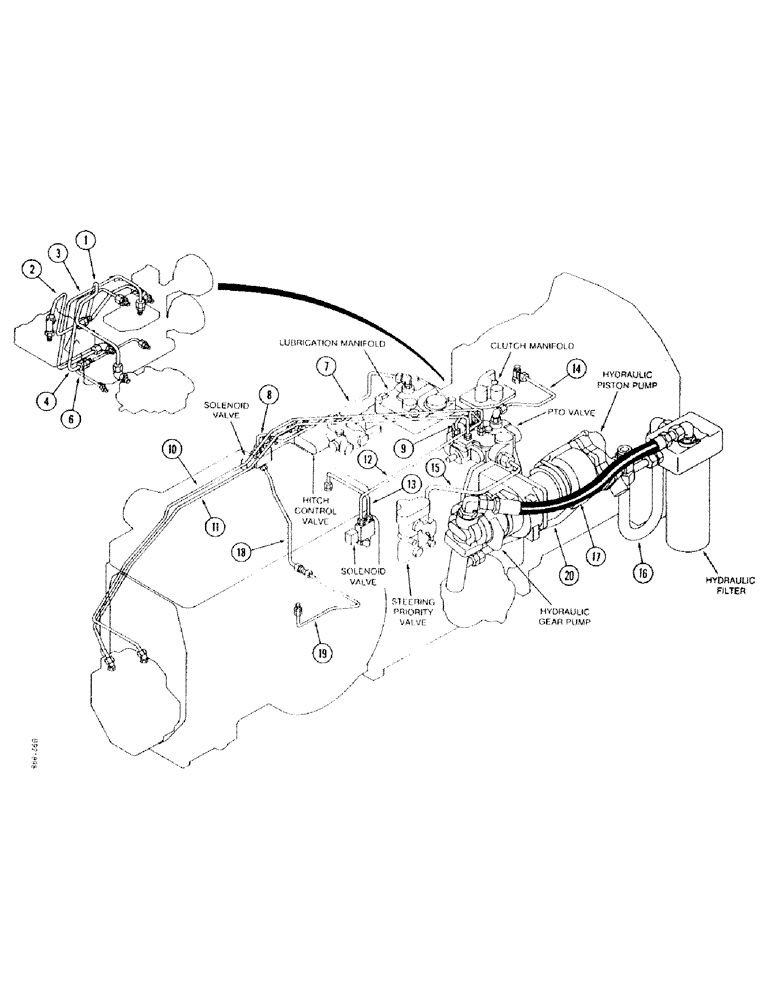

Запчасти Case IH 7110 (1-12) - PICTORIAL INDEX, MAIN HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0044915 (00) - PICTORIAL INDEX

1

Valve Inlet Tube, Pg 6-55

1шт.

2

Master Clutch Tube, Pg 6-55

1шт.

3

Odd Clutch Tube, Pg 6-55

1шт.

4

Even Clutch Tube, Pg 6-55

1шт.

6

Jumper Tube, Pg 6-55

1шт.

7

Valve Return Tube, Pg 8-21

1шт.

8

Valve Supply Tube, Pg 8-21

1шт.

9

PTO Jump Tube, Pg 8-11

1шт.

10

PTO Clutch Tube, Pg 8-11

1шт.

11

PTO Brake Tube, Pg 8-11

1шт.

12

Differential Lock Supply Tube, Pg 8-23

1шт.

13

Differential Lock Return Tube, Pg 8-23

1шт.

14

PTO Drain Tube, Pg 8-11

1шт.

15

PTO Inlet Tube, Pg 8-11

1шт.

16

Pump Inlet Tube, Pg 8-27

1шт.

17

Pump to Filter Hose, Pg 8-27

1шт.

18

Valve Pressure Tube, Pg 8-21

1шт.

19

Transmission Pressure Tube, Pg 6-31

1шт.

20

Reservoir Return Tube, Pg 8-3

1шт.
