Запчасти Case IH 7110 (5-27A) - STEERING PUMP ASSEMBLY, P/N 1542616C2, EATON PUMP, IF EQUIPPED, TWO WHEEL DRIVE (05) - STEERING

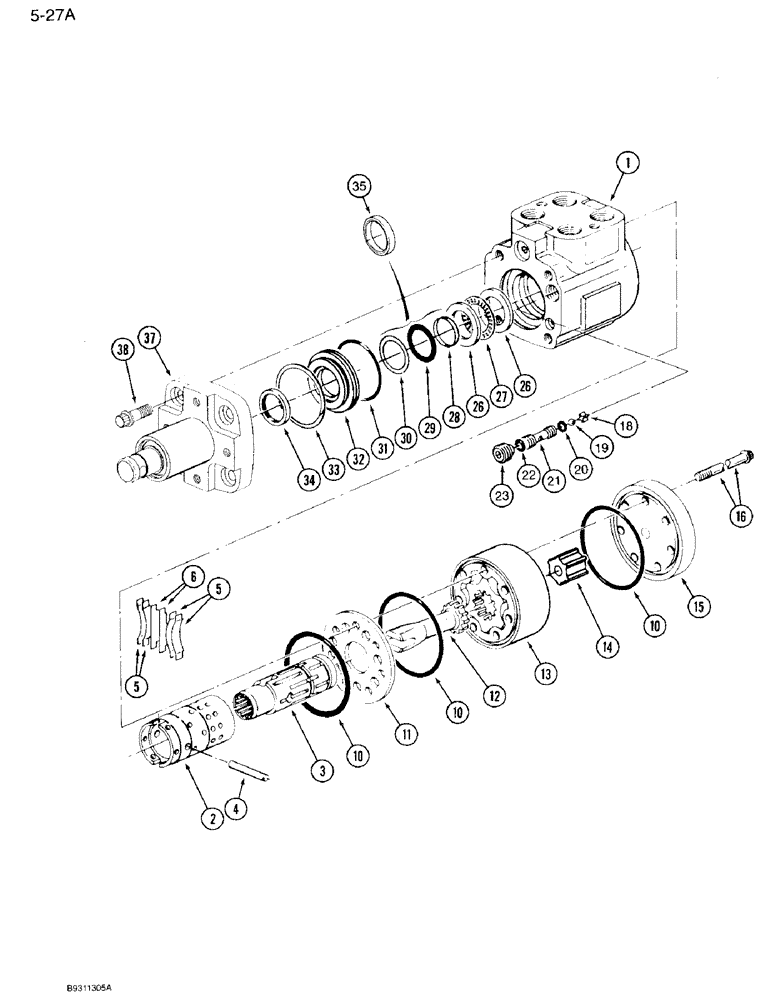

Схема запчастей Case IH 7110 - (5-27A) - STEERING PUMP ASSEMBLY, P/N 1542616C2, EATON PUMP, IF EQUIPPED, TWO WHEEL DRIVE (05) - STEERING
6
22
21
3
10
26
23
5
28
5
4
14
19
31
27
1
10
15
11
37
13
20
32
18
34
33
35
2
12
26
16
38
29
30
10

Артикул

Название

Примечание

Количество

1542616C2

PUMP

ASSEMBLY - steering, Replaces: 92849C2, 1978324C1 and 1542616C1, Includes: Ref. 1 - 35

1шт.

When replacing 1978324C1 pump with 1542616C2 pump, also order (1) 201-303 elbow and (1) 1542766C1 hose, ref. 12 and 20 on Figure 5-12.

1шт.

NSS

NOT SOLD SEPARAT

HOUSING AND CONTROL ASSEMBLY - pump, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump, includes check valves below

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering, not shown

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet, not shown

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - centering

1шт.

NSS

NOT SOLD SEPARAT

SPRING KIT - centering, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering, set of 6 springs

4шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL - end cap

3шт.

Part of Seal Kit, P/N 1343658C2

1шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

DRIVE - gerotor

1шт.

13

1343636C1

ROTOR

GEROTOR ASSEMBLY - pump

1шт.

14

1343644C1

SPACER

- gerotor

1шт.

15

D82809

COVER

CAP - end

1шт.

16

1343639C1

12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8

BOLT - 12 point flange, 5/16 NC x 2 inch

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-208

BALL,5/16" Dia

- check

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL, 7/16 x 5/16 x 1/16 in

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

21

D82806

VALVE SEAT

SEAT - check ball

1шт.

22

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - 3/8 inch ID

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

- thrust bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Assy - Needle

1шт.

28

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon, if used

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

29

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

(Replaces: L1540), if used -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

30

N13314

RING

- backup, if used

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

31

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - 1-7/8 inch ID, Replaces: N14515

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

A28211

OIL SEAL

- 1 inch ID

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - shaft, if used

1шт.

Part of Seal Kit, P/N 1343658C2

1шт.

37

1343647C1

HOUSING

COLUMN ASSEMBLY - pump, not included with pump, order separately

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.

1343658C2

SEAL KIT

SEAL KIT - pump, Includes: Ref. 10, 20, 22, 28, 29, 30, 31, 34, and 35

1шт.

S/B NTR SB 059 88 FOR CONNECTORS

1шт.
