Запчасти Case IH 7110 (5-22) - STEERING PUMP ASSEMBLY, TRW PUMP, IF EQUIPPED, TWO WHEEL DRIVE (05) - STEERING

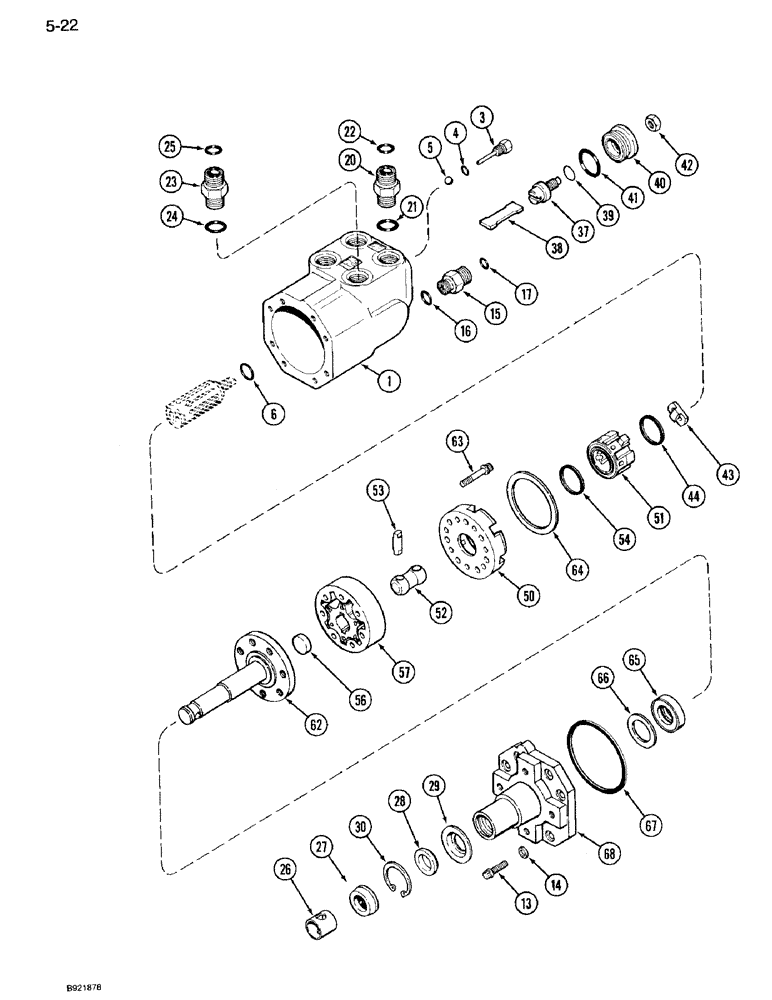

Схема запчастей Case IH 7110 - (5-22) - STEERING PUMP ASSEMBLY, TRW PUMP, IF EQUIPPED, TWO WHEEL DRIVE (05) - STEERING
56
25
54
21
62
38
39
44
3
41
13
23
68
43
6
24
40
27
29
63
51
5
26
1
66
15
17
20
50
28
67
57
64
4
42
22
52
53
30
37
16
14
65

Артикул

Название

Примечание

Количество

92849C2

PUMP

ASSEMBLY - steering, order 1542616C2 pump on Figure 5-27A, Includes: Ref. 1 - 68

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - steering, order 92849C2

1шт.

3

1301867C91

PIN ASSY.

PIN ASSEMBLY - guide, Includes: Ref. 4

1шт.

4

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

5

17009R1

BALL

- 9/32 inch diameter

1шт.

6

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 ID x 1/16 inch

1шт.

13

1957916C1

BOLT (SPREADER),1/4" - 28 x 1"

BOLT - cap retaining

8шт.

14

1957917C1

WASHER

- retaining bolt

8шт.

15

1957910C1

VALVE

ASSEMBLY - check, Includes: Ref. 16 and 17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

20

1957911C1

VALVE

ASSEMBLY - inlet check, Includes: Ref. 21 and 22

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

23

1957912C1

VALVE

ASSEMBLY - outlet check, Includes: Ref. 24 and 25

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

26

1957915C1

COLLAR CLAMP

COLLAR - input shaft

1шт.

1957914C3

SEAL KIT

KIT - shaft, Replaces: 1957914C2, Includes: Ref. 27 - 30

1шт.

27

1986512C1

SEAL

- shaft

1шт.

28

1986530C1

WASHER

- backup

1шт.

29

1986513C1

SEAL

- shaft

1шт.

30

338835R1

SNAP RING,1.125", Int, #112

Ring, Snap, 1.125", Int, #112

1шт.

37

A45194

ADJUSTMENT SCREW

SCREW ASSEMBLY - adjusting, Includes: Ref. 38

1шт.

38

1971540C1

FAN

BLADE - torsion

2шт.

39

A45195

O-RING,0.556" ID x 0.073"

- adjusting screw

1шт.

40

A47006

PLUG

ASSEMBLY - adjusting screw, Includes: Ref. 41

1шт.

41

A47005

O-RING,1.053" ID

- 1-3/64 ID x 7/64 inch

1шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex jam, 3/8 inch NC

1шт.

43

A47668

RING

- drive

1шт.

44

A47421

SEALING RING

ASSEMBLY - sleeve

1шт.

A47419

MANIFOLD

ASSEMBLY - pump, Includes: Ref. 50 and 51

1шт.

50

NSS

NOT SOLD SEPARAT

MANIFOLD - pump, order A47419

1шт.

51

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump, order A47419

1шт.

52

A48140

LINK

- drive

1шт.

53

F19636

PIN

- lock

2шт.

54

A47421

SEALING RING

ASSEMBLY - manifold

1шт.

56

A48141

SPACER

- rotor

1шт.

57

1971544C1

ROTOR

SET - pump

1шт.

62

1971541C1

SHAFT

- input

1шт.

63

A48132

SCREW,1/4" x 1 5/8"

- cap, manifold, stator and shaft

7шт.

64

A160850

WASHER

- manifold

1шт.

65

1971545C1

BALL BEARING,0.878" ID x 1.515" OD x 0.38"

BEARING - thrust, needle

1шт.

66

1971546C1

SPACER

WASHER KIT - thrust, contains 10 washers

1шт.

67

A47004

RING

- seal, square section, 2-63/64 ID x 1/16 inch

1шт.

68

1971543C1

HOUSING

COVER - upper pump and valve

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

Выбрано товаров: 46
