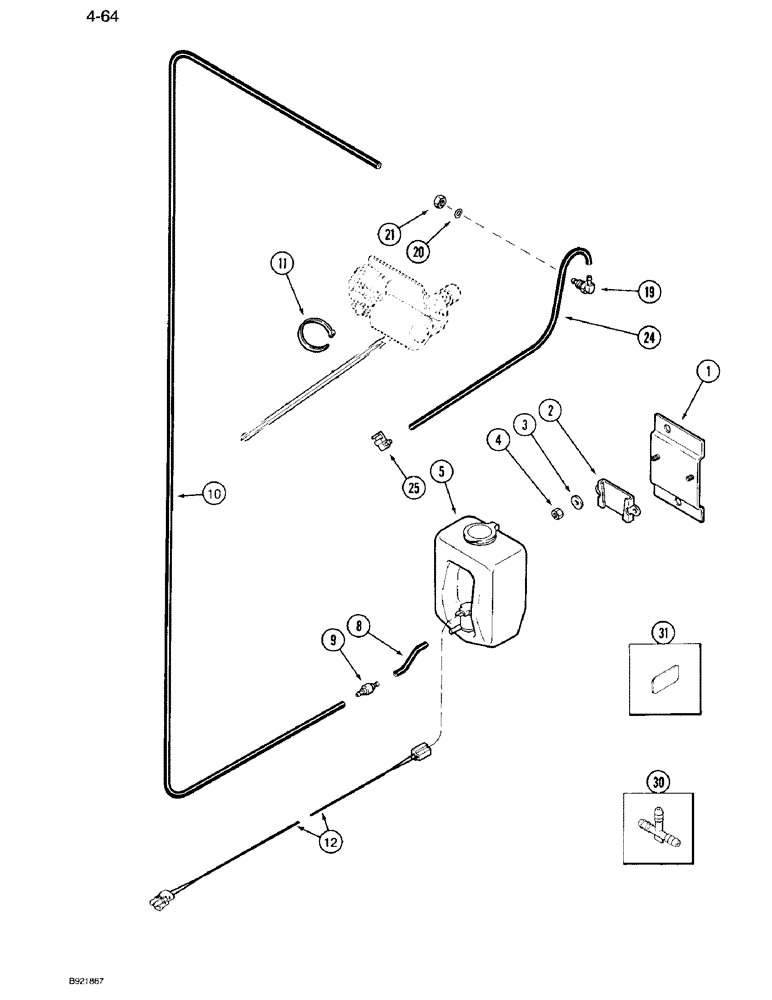

Запчасти Case IH 7110 (4-64) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

1968022C1

SUPPORT

BRACKET - mounting

1шт.

2

K304597

SUPPORT

BRACKET - reservoir mounting

1шт.

3

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

5

K304596

RESERVOIR

AND PUMP ASSEMBLY - washer fluid

1шт.

8

1968057C1

HOSE

TUBING - washer, 100 mm, order 1968141C1 and cut to length, see below

1шт.

9

K307050

VALVE

- non-return

1шт.

10

1968058C1

HOSE

TUBING - washer, 3600 mm, order 1968141C1 and cut to length, see below

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, harness

9шт.

12

1964673C1

HARNESS

- wiring, washer pump

1шт.

19

1968053C1

ELBOW

CONNECTOR - bulkhead, 90 degree, mounts to 1968052C1 bracket, Ref. 32

1шт.

20

N8361

SPRING WASHER

- spring, 8 mm

1шт.

21

825-1408

NUT,M8, Cl 8

1шт.

24

1968059C1

HOSE

TUBING - washer, 500 mm, order 1968141C1 and cut to length, see below

1шт.

25

1968054C1

JET

NOZZLE - windshield washer

1шт.

30

1968129C1

FITTING

TEE - nylon, barb ends, converting for rear washer

1шт.

31

1968130C1

CLIP

- nozzle, converting for rear washer

2шт.

32

1968052C1

BRACKET

- connector to bulkhead, not shown

1шт.

1968141C1

HOSE

TUBING - 5/32 ID x 50 foot bulk roll

1шт.
