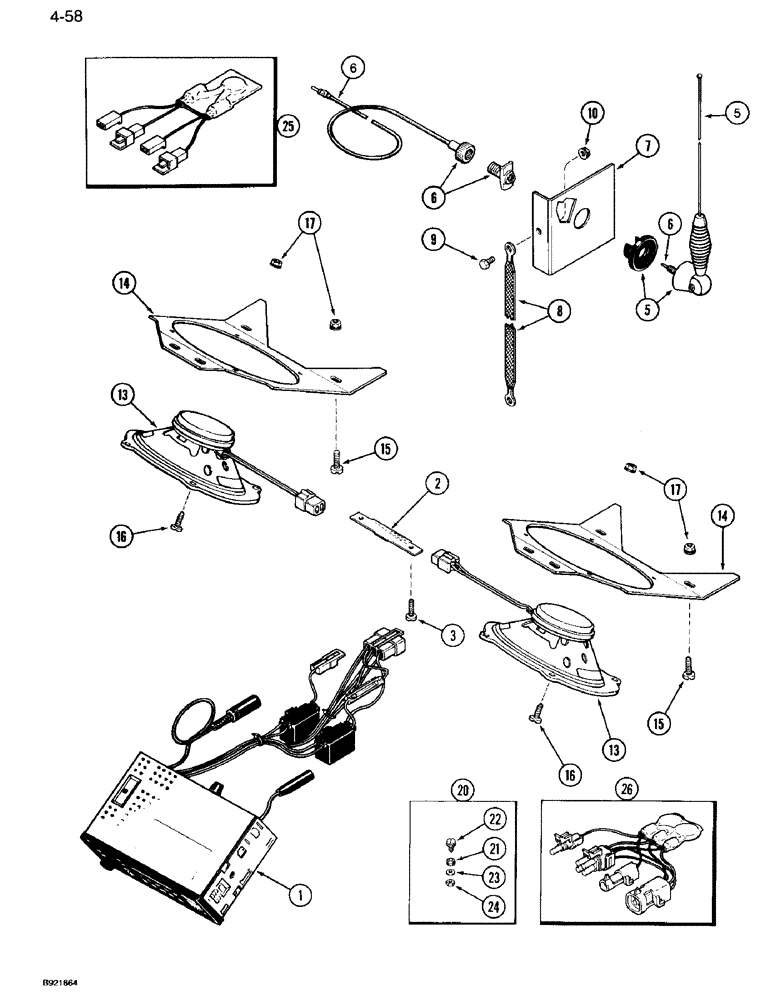

Запчасти Case IH 7110 (4-58) - RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

1

1983602C1

RADIO

KIT - AM-FM stereo, Replaces: A186177 and ZAE90ST

1шт.

1

1983603C1

RADIO

KIT - AM-FM stereo with cassette tape player, Replaces: A186178 and ZAE90CAS

1шт.

2

97127C3

SUPPORT ASSY.

SUPPORT - radio

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

5

97080C1

ANTENNA

radio, includes all parts with ref 5 and 6, see 7140 Figure 4-60, Includes: Ref. 6

1шт.

6

191842A2

ANTENNA

- antenna base flat head special

1шт.

7

97073C1

SUPPORT

BRACKET - mounting, antenna

1шт.

8

97074C1

STRAP

- ground, antenna

1шт.

9

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

245343C3

SPEAKER

- radio, 5 x 7 40 Hm, Replaces: 245343C2

2шт.

14

97051C1

PLATE ASSY.

PLATE - support, speaker

2шт.

15

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

16

27093R1

SCREW

- pan head, No. 10-24 x 5/8 inch

8шт.

17

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24

8шт.

20

1964958C1

KIT

SUPPORT KIT - radio, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - rubber

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT - hex, 5 x 15 mm

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - flat, 5 mm

1шт.

24

NSS

NOT SOLD SEPARAT

NUT - hex lock, 5 mm

1шт.

25

1987508C1

SUPPRESSOR

- blower frequency

1шт.

26

1987509C1

SUPPRESSOR

- wiper frequency

1шт.
