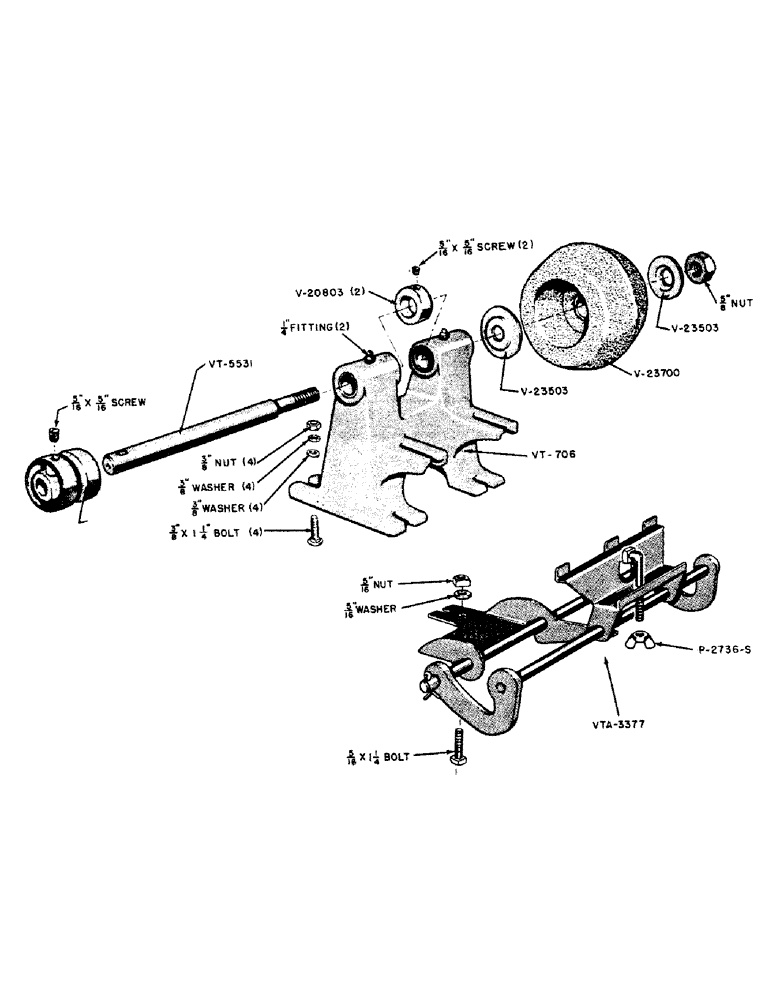

Запчасти Case IH VAI-SERIES (112) - SICKLE GRINDER HEAD AND GUIDE ARM (88) - ACCESSORIES

P2736S

NUT - wing, 5/16"

1шт.

V14363

BOLT - sickle clamp

1шт.

V20803

X

COLLAR - thrust

2шт.

5/16" - 18 x 5/16" screw, set, slotted head, U.N.C.

2шт.

V23503

ELECTRIC CABLE

FLANGE - grinding wheel

2шт.

V23700

WHEEL - grinding (5-1/2 x 3-1/2" with 5/8" bore)

1шт.

VT706

BASE - sickle grinder, with bearings and grease fittings

1шт.

3/8 x 1-1/4" bolt, carriage, U.N.C. with hexagon nut and lockwasher

4шт.

1/4" fitting, grease, str. drive

2шт.

3/8" washer, plain, S.A.E. standard

4шт.

VT707

PULLEY "V" BELT DRIVE

1шт.

5/16" - 18 x 5/16" screw, set, slotted head, U.N.C.

1шт.

VT5526

ROD - sickle holder

1шт.

VT5527

ARM - sickle holder guide

2шт.

VT5528

CLAMP - sickle

1шт.

VT5529

ROD - sickle holder guide

1шт.

3/32 x 3/4" pin, cotter

1шт.

VT5530

BRACKET - sickle holder mounting

1шт.

5/16 x 1-1/4" bolt, machine, square head, U.N.C. with square nut

1шт.

5/16" washer, plain, S.A.E. standard

1шт.

VT5531

SHAFT - grinding wheel and pulley

1шт.

5/8" nut, hexagon, U.N.C.

1шт.
