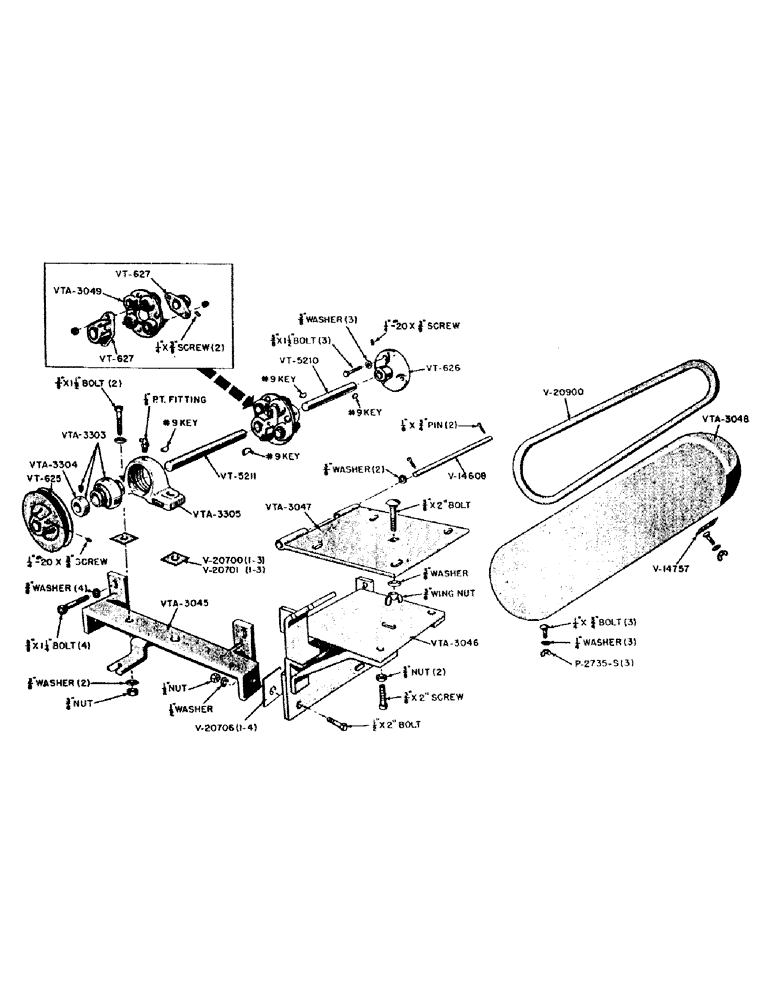

Запчасти Case IH VAI-SERIES (110) - SICKLE GRINDER MOUNTING FRAME AND DRIVE ASSEMBLY (88) - ACCESSORIES

P2735S

X

NUT - wing, 1/4"

3шт.

V14608

PIN - grinder pivot base

1шт.

1/8 x 3/4" pin, cotter

2шт.

3/8" washer, plain

2шт.

V14757

STIFFNER - belt guard

1шт.

V20700

OPERATOR MANUAL

SHIM - pillow block bearing (.0598")

1-3шт.

V20701

SHIM - pillow block bearing (.0359")

1-3шт.

V20706

SHIM - mounting bracket

1-4шт.

V20900

HOUSING

BELT - "V" drive

1шт.

VT625

PULLEY "V" BELT DRIVE

1шт.

1/4" - 20 x 3/8" screw, set, socket head, N.C.

1шт.

No. 9 key, Woodruff

1шт.

VT626

FLANGE - drive shaft coupling

1шт.

3/8 x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

3шт.

1/4" - 20 x 3/8" screw, set, socket head, N.C.

1шт.

No. 9 key, Woodruff

1шт.

VT527

FLANGE - coupling

2шт.

1/4" - 20 x 3/8" screw, set, socket head, N.C.

2шт.

No. 9 key, Woodruff

2шт.

VT5210

SHAFT - drive flange (Rear)

1шт.

VT5211

SHAFT - drive flange (Front)

1шт.

VTA3045

BEARING BASE ASSEMBLY (Drive shaft support)

1шт.

1/2 x 1-3/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

5/8 x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VTA3046

GRINDER STAND ASSEMBLY

1шт.

3/8 x 2" bolt, carriage, U.N.C.

1шт.

1/2 x 2" bolt, hexagon head, U.N.F. with hexagon nut and lockwasher

1шт.

5/8 x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

5/8 x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

1шт.

3/8 x 2" screw, set, square head, C.P., N.C. with hexagon nut

2шт.

3/8" nut, wing, U.N.C.

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VTA3047

BASE - grinder pivot

1шт.

VTA3048

GUARD - drive belt

1шт.

1/4 x 3/4" bolt, carriage, U.N.C.

3шт.

1/4" washer, plain, S.A.E. standard

3шт.

VTA3049

COUPLING - center, assembly (With self-locking nuts)

1шт.

VTA3303

BEARING - (Fafnir LAK 3/4" no. G1012KLLB) w/lockcollar and wrench

1шт.

VTA3304

COLLAR - lock w/headless setscrew, (For VTA3303 bearing)

1шт.

1/4 x 1/4" screw, set, headless socket, C.P., N.C.

1шт.

1/8" wrench, ell ("Allen hexagon type)

1шт.

VTA3305

PILLOW BLOCK - bearing (Fafnir no. T16602) (With 1/8 x 1/4" headless slotted pipe plug, for shipping only)

1шт.

3/8 x 1-1/2" bolt, hexagon head, U.N.F. with hexagon nut and lockwasher

2шт.

1/8" P.T. fitting, grease, 90 degree (Lincoln no. 5400)

1шт.

3/8" washer, plain, S.A.E. standard

2шт.
