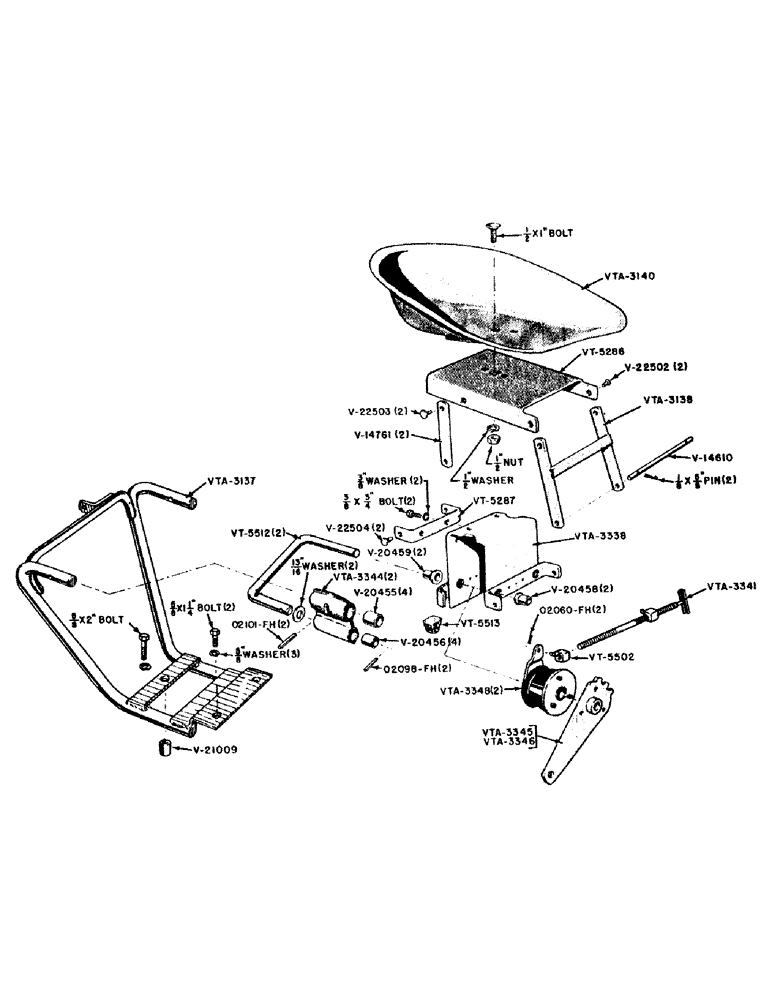

Запчасти Case IH VAI-SERIES (108) - EASY RIDE SEAT (09) - CHASSIS/ATTACHMENTS

O2060FH

X

ROLL PIN - 1/8 x 3/4" for VT5502 and VTA3341

2шт.

O2098FH

X

ROLL PIN - 1/4 x 1" for VT5512

2шт.

O2101FH

X

ROLL PIN - 5/16 x 1-1/2" for VTA3137

2шт.

V14610

PIN - pivot

1шт.

1/8 x 5/8" pin, cotter

2шт.

V14761

LINK - seat pivot, rear

2шт.

V20455

BUSHING - bearing, upper

4шт.

V20456

BUSHING - bearing, lower

4шт.

V20458

X

BUSHING - flange, front

2шт.

V20459

X

BUSHING - flange, rear

2шт.

V21009

SPARE PART

SPACER

1шт.

V22502

PLUG

RIVET - shoulder, front

2шт.

V22503

RIVET - shoulder, rear upper

2шт.

V22504

PIN

RIVET - shoulder, rear lower

2шт.

VT5286

CHANNEL - seat mounting

1шт.

VT5287

BRACKET - pivot, rear

1шт.

3/8 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT5502

NUT - adjuster, right-hand

1шт.

VT5512

SHAFT - suspension

2шт.

13/16" I.D. x 1-1/4" O.D. x no. 16 gage washer, plain

2шт.

VT5513

X

BUMPER - rubber

1шт.

VTA3135

X

SEAT SUSPENSION ASSEMBLY (Includes: VTA3338, VTA3341, (2) VTA3344, VTA3345, VTA3346, (2) VTA3348, VT5287, VT5502, (2) VT5512, etc.)

1шт.

VTA3137

SUPPORT - seat

1шт.

5/8 x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

5/8 x 2" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VTA3138

ARM - front pivot

1шт.

VTA3139

SEAT PIVOT ARMS AND CHANNEL (Includes: (2) V14761, (2) V22502, (2) V22503, (2) V22504, VT5286 and VTA3138)

1шт.

VTA3140

SEAT PAN

1шт.

1/2 x 1" bolt, carriage, U.N.C. with hexagon nut and lockwasher

1шт.

VTA3338

HOUSING - with bushings, for rubber springs and gear arms

1шт.

VTA3341

ADJUSTING STUD WITH LEFT-HAND NUT

1шт.

VTA3344

LEVER - suspension, short, with bushings

2шт.

VTA3345

ARM - gear, left-hand

1шт.

VTA3346

ARM - gear, right-hand

1шт.

VTA3348

X

RUBBER SPRING - moulded

2шт.
