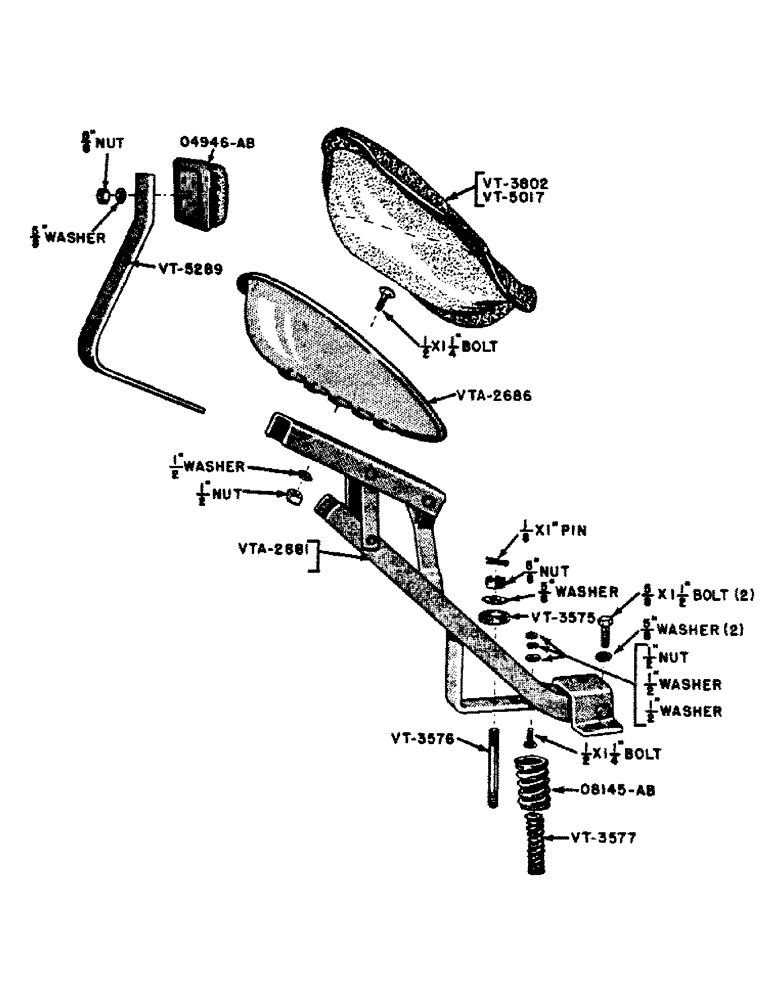

Запчасти Case IH VAI-SERIES (048) - SEAT ASSEMBLY (09) - CHASSIS

O4946AB

REST - back

1шт.

5/8" nut, hexagon, U.N.C. with lockwasher

1шт.

O4947AB

SPRING - back rest (Use VT5289)

1шт.

O8145AB

SPRING

- large

1шт.

VT3575

X

WASHER - seat channel

1шт.

VT3576

STUD - 5/8" x 5-1/4"

1шт.

5/8" nut, hexagon, slotted, U.N.C.

1шт.

1/8" x 1" pin, cotter

1шт.

5/8" washer, plain, U.S. standard

1шт.

VT3577

X

SPRING - small

1шт.

VT3802

CUSHION - seat (For VTA377 seat) (Machinery item)

1шт.

VT5017

X

CUSHION - seat (For VTA2686 seat) (Machinery item)

1шт.

VT5289

SPRING - back rest

1шт.

VTA374

SUPPORT ASSEMBLY - seat (Use VTA2881)

1шт.

VTA377

SEAT PAN ASSEMBLY (Use VTA2686)

1шт.

VTA2686

SEAT PAN ASSEMBLY

1шт.

1/2" x 1-1/4" bolt, carriage, N.C. with hexagon nut and lockwasher

1шт.

VTA2881

SUPPORT ASSEMBLY - seat

1шт.

1/2" x 1-1/2" bolt, carriage, N.C. with hexagon nut and lockwasher

1шт.

5/8" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

2шт.

1/2" washer, plain, S.A.E. standard

2шт.
