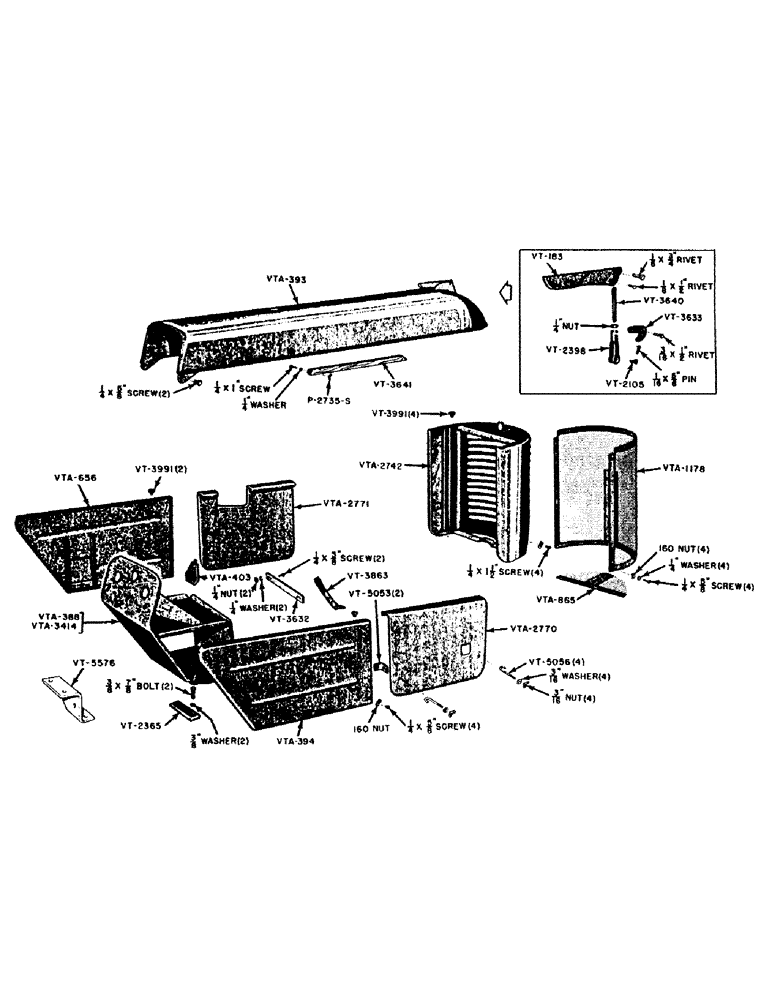

Запчасти Case IH VAI-SERIES (046) - HOOD, GRILLE, AND SIDE SHEETS (09) - CHASSIS

P2735S

X

NUT - wing, 1/4" N.C. (Hood support screw)

1шт.

VT183

ARM - locking

1шт.

1/8" x 1/2" rivet, round head (Arm to lock yoke rod)

1шт.

1/8" x 3/4" rivet, round head (Arm to hood assembly)

1шт.

VT2105

X

RIVET - drilled

1шт.

1/16" x 5/8" pin, cotter

1шт.

VT2365

REINFORCEMENT - instrument panel (Tractors before no. 5169026)

1шт.

VT2398

X

YOKE - lock

1шт.

VT3632

BRACE - side sheet

1шт.

1/4" x 5/8" screw, machine, round head, U.N.C. with square nut and lockwasher

2шт.

VT3633

LOCK - hood

1шт.

3/16" x 1/2" rivet, round head

1шт.

VT3640

ROD - lock yoke

1шт.

VT3641

SUPPORT - hood

1шт.

1/4" x 1" screw, machine, round head, U.N.C. with lockwasher

1шт.

VT3829

BRACKET - engine side cover (For VTA570 and VTA571 side sheets)

2шт.

VT3833

CLIP - spring (For VTA570 and VTA571 side sheets)

2шт.

VT3863

BRACE - side sheet

1шт.

VT3991

CUSHION - rubber

4шт.

VT5053

BRACKET - engine side cover (For VTA2770 and VTA2771 side sheets)

2шт.

1/4" x 5/8" screw, machine, round head, U.N.C. with square nut and lockwasher

2шт.

VT5056

BOLT - hook, side sheet bracket (For VTA2770 and VTA2771 side sheets)

4шт.

3/16" nut, wing, U.N.C.

4шт.

3/16" washer, plain, S.A.E. standard

4шт.

VT5576

SUPPORT - instrument panel (Tractors no. 6014292 thru no. 6014314)

1шт.

VTA388

PANEL - instrument assembly (Tractors before no. 6014292 and after no. 6014314)

1шт.

3/8" x 7/8" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VTA393

HOOD ASSEMBLY WITH LOCK AND SUPPORT (Complete)

1шт.

1/4" x 5/8" screw, self-tapping, hexagon head

2шт.

VTA394

SIDE SHEET ASSEMBLY - right-hand

1шт.

1/4" x 5/8" screw, machine, round head, U.N.C

2шт.

No. 160 nut, speed

2шт.

VTA403

PLATE - cover, ammeter and starter switch mountings

1шт.

1/4" x 5/8" screw, machine, round head, U.N.C. with square nut and lockwasher

1шт.

VTA570

COVER - engine, right-hand (Use VTA2770)

1шт.

VTA571

COVER - engine, left-hand (Use VTA2771)

1шт.

VTA631

X

GRILLE - radiator (Tractors before no. 5265953) (Use VTA2742)

1шт.

VTA656

SIDE SHEET ASSEMBLY - left-hand

1шт.

1/4" x 5/8" screw, machine, round head, U.N.C.

2шт.

No. 160 nut, speed

2шт.

VTA865

SCREEN - trash (Use VTA1178)

1шт.

VTA1178

TRASH AND GRILLE SCREEN ATTACHMENT (Machinery item)

1шт.

1/4" x 5/8" screw, machine, round head, U.N.C.

5шт.

1/4" washer, plain, S.A.E. standard

4шт.

No. 160 nut, speed

5шт.

VTA2742

X

GRILLE - radiator (Tractors after no. 526952)

1шт.

1/4" x 1-1/2" screw, machine, round head, U.N.C.

4шт.

No. 160 nut, speed

4шт.

VTA2770

COVER - engine side, right-hand

1шт.

VTA2771

COVER - engine side, left-hand

1шт.

VTA3414

PANEL - instrument (Tractors no. 6014292 thru no. 6014314)

1шт.

3/8" x 1" bolt, hexagon head, U.N.F. with hexagon nut and lockwasher

2шт.

3/8" washer, plain, S.A.E. standard

2шт.
