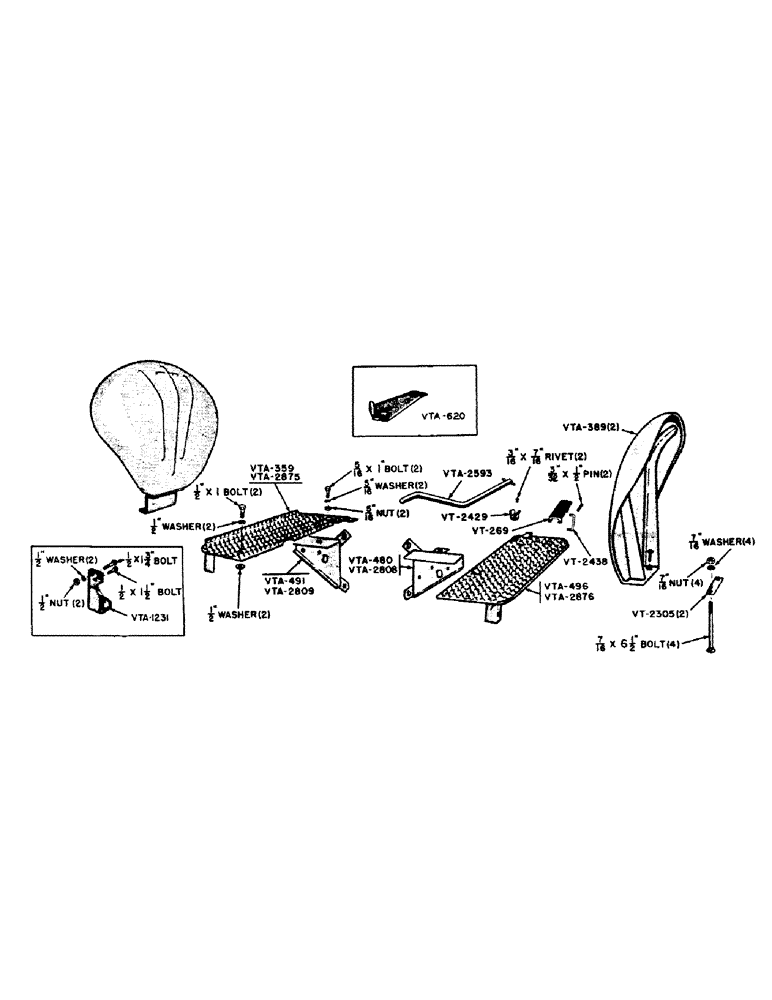

Запчасти Case IH VAI-SERIES (045) - FENDERS, STEP PLATES, AND CRANK (09) - CHASSIS

VT269

PEDAL - accelerator

1шт.

VT2305

CLAMP - fender

2шт.

7/16" x 6-1/2" bolt, carriage, U.N.C. with hexagon nut and lockwasher

4шт.

VT2429

CLIP - spring, crank holder (Tractors after no. 5450499)

1шт.

3/16" x 7/16" rivet - flat head

2шт.

VT2438

ROD - foot feed

1шт.

3/32" x 1/2" pin, cotter

2шт.

VT5190

STEP - tractor, use VTA1231

1шт.

VTA359

PLATE - step, left-hand (Tractors before no. 5450500) (See VTA2875)

1шт.

VTA389

FENDER

2шт.

VTA490

SUPPORT - step plate, right-hand (Tractors before no. 5450500) (See VTA2808)

1шт.

VTA491

SUPPORT - step plate, left-hand (Tractors before no. 5450500) (See VTA2809)

1шт.

VTA496

PLATE - step, right-hand (Tractors before no. 5450500) (See VTA2876)

1шт.

VTA620

HOLDER - crank (Tractors before no. 5450500)

1шт.

VTA1231

STEP - tractor (Machinery item)

1шт.

1/2" x 1-1/2" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

1/2" x 1-3/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VTA2593

CRANK - starting

1шт.

VTA2808

SUPPORT - step plate, right-hand (Tractors after no. 5450499) (See VTA490)

1шт.

VTA2809

SUPPORT - step plate, left-hand (Tractors after no. 5450499) (See VTA491)

1шт.

VTA2875

PLATE - step, left-hand (Tractors after no. 5450499) (See VTA359)

1шт.

5/16" x 1" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher)

1шт.

1/2" x 1" bolt, hexagon head, U.N.C. with lockwasher

1шт.

1/2" washer, plain, S.A.E. standard

1шт.

VTA2876

PLATE - step, right-hand (Tractors after no. 5450499) (See VTA496)

1шт.

5/16" x 1" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

1/2" bolt, hexagon head, U.N.C. with lockwasher

1шт.

1/2" washer, plain, S.A.E. standard

1шт.
