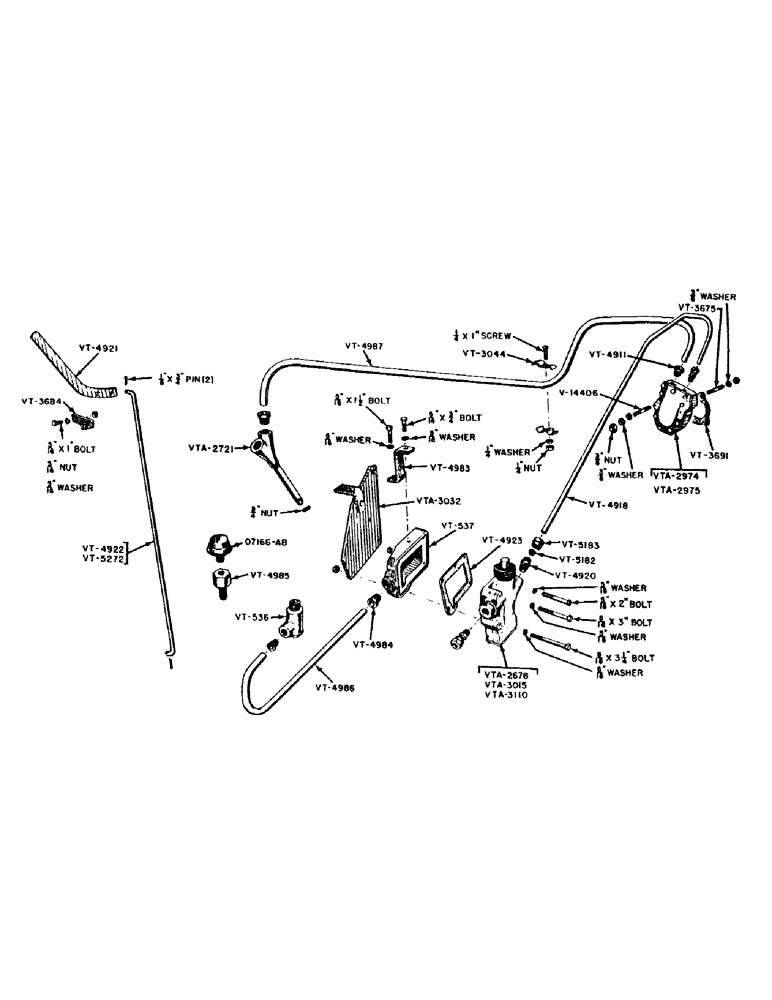

Запчасти Case IH VAI-SERIES (100) - HYDRAULIC PUMP AND LINES WITH SINGLE CONTROL, TRACTORS BEFORE NO. 5159895 (08) - HYDRAULICS

O7166AB

X

BREATHER

1шт.

V14406

STUD - 3/8" diameter x 5-1/4"

2шт.

3/8" nut, hexagon, U.N.C. with lockwasher

2шт.

VT536

FITTING - oil return and drain

1шт.

VT537

BASIN - catch

1шт.

5/16 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VT3044

CLAMP - tube

2шт.

1/4 x 1" screw, machine, round head, U.N.C. with hexagon nut and lockwasher

1шт.

VT3675

X

STUD - 3/8" diameter x 1-1/2" (Magneto ignition only)

1шт.

3/8" washer, Shakeproof, I.T.

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VT3684

BRACKET - control lever

1шт.

5/16 x 1" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

3шт.

VT3691

X

GASKET

1шт.

VT4505

NUT - hexagon N.C. (For VT3675) (Magneto ignition only)

1шт.

VT4911

NUT - tube

2шт.

VT4918

LINE - high pressure

1шт.

VT4920

BODY - connector

3шт.

VT4921

LEVER - control

1шт.

VT4922

ROD - contorl lever (Used with VTA2678 and VTA3015) (See VT5272)

1шт.

VT4923

X

GASKET - control housing

1шт.

VT4983

STOP - control lever

1шт.

5/16 x 1-1/2" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VT4984

NUT - tube

2шт.

VT4985

ADAPTER - breather

1шт.

VT4986

LINE - return

1шт.

VT4987

LINE - intake

1шт.

VT5182

SLEEVE - coupling

3шт.

VT5183

NUT - coupling

3шт.

VT5272

ROD - control lever (Used with VTA2678 and VTA3110) (See VT4922)

1шт.

1/8 x 3/4" pin, cotter

2шт.

VTA2678

SINGLE CONTROL VALVE (Use VTA3110)

1шт.

VTA2721

FITTING - inlet

1шт.

3/4" nut, lock conduit

1шт.

VTA2974

X

PUMP - hydraulic (Distributor ignition) (See VTA2975)

1шт.

VTA2975

PUMP - hydraulic (Magneto ignition) (See VTA2974)

1шт.

VTA3015

SINGLE CONTROL VALVE (Use VTA3110)

1шт.

VTA3032

PLATE ASSEMBLY - mounting

1шт.

VTA3110

SINGLE CONTROL VALVE

1шт.

5/16 x 2" bolt, hexagon head, U.N.C. with lockwasher

2шт.

5/16 x 3" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

5/16 x 3-1/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.
