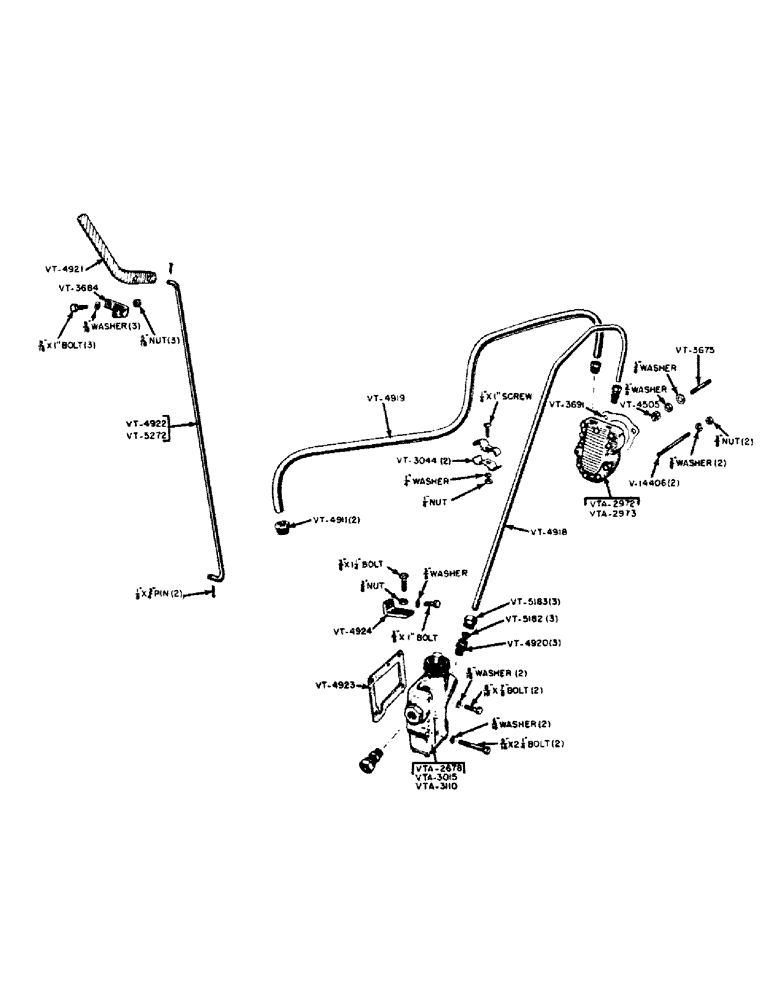

Запчасти Case IH VAI-SERIES (099) - HYDRAULIC PUMP AND LINES WITH SINGLE CONTROL, TRACTORS AFTER NO. 5159894 (08) - HYDRAULICS

V14406

STUD - 3/8 x 5-1/4"

2шт.

3/8" nut, hexagon, U.N.C. with lockwasher

2шт.

VT3044

CLAMP - tube

2шт.

1/4 x 1" screw, machine, round head, U.N.C. with hexagon nut and lockwasher

1шт.

VT3675

X

STUD - 3/8 x 1-1/2" (Magneto ignition)

1шт.

3/8" washer, Shakeproof, I.T.

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VT3684

BRACKET - control lever

1шт.

5/16 x 1" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

3шт.

VT3691

X

GASKET

1шт.

VT4505

NUT - hexagon, N.C. (For VT3675) (Magneto ignition only)

1шт.

VT4911

NUT - tube

2шт.

VT4918

LINE - high pressure

1шт.

VT4919

LINE - intake

1шт.

VT4920

BODY - connector

3шт.

VT4921

LEVER - control

1шт.

VT4922

ROD - control lever (Used with VTA2678 and VTA3015) (See VT5272)

1шт.

VT4923

X

GASKET - control housing

1шт.

VT4924

BRACKET - adjusting valve stop

1шт.

3/8 x 1" bolt, hexagon head, U.N.C. with lockwasher

1шт.

3/8 x 1-1/4" bolt, hexagon head, U.N.C. with hexagon nut

1шт.

VT5182

SLEEVE - coupling

3шт.

VT5183

NUT - coupling

3шт.

VT5272

ROD - control lever (Used with VT3110) (See VT4922)

1шт.

1/8 x 3/4" pin, cotter

2шт.

VTA2678

SINGLE CONTROL VALVE (Use VTA3110) (See page 98)

1шт.

VTA2972

HYDRAULIC PUMP (Distributor ignition) (See VTA2973)

1шт.

VTA2973

HYDRAULIC PUMP (Magneto ignition) (See VTA2972)

1шт.

VTA3015

SINGLE CONTROL VALVE (Use VTA3110) (See page 97)

1шт.

VTA3110

SINGLE CONTROL VALVE (See page 98)

1шт.

5/16 x 7/8" bolt, hexagon head, U.N.C. with lockwasher

2шт.

5/16 x 2-1/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.
