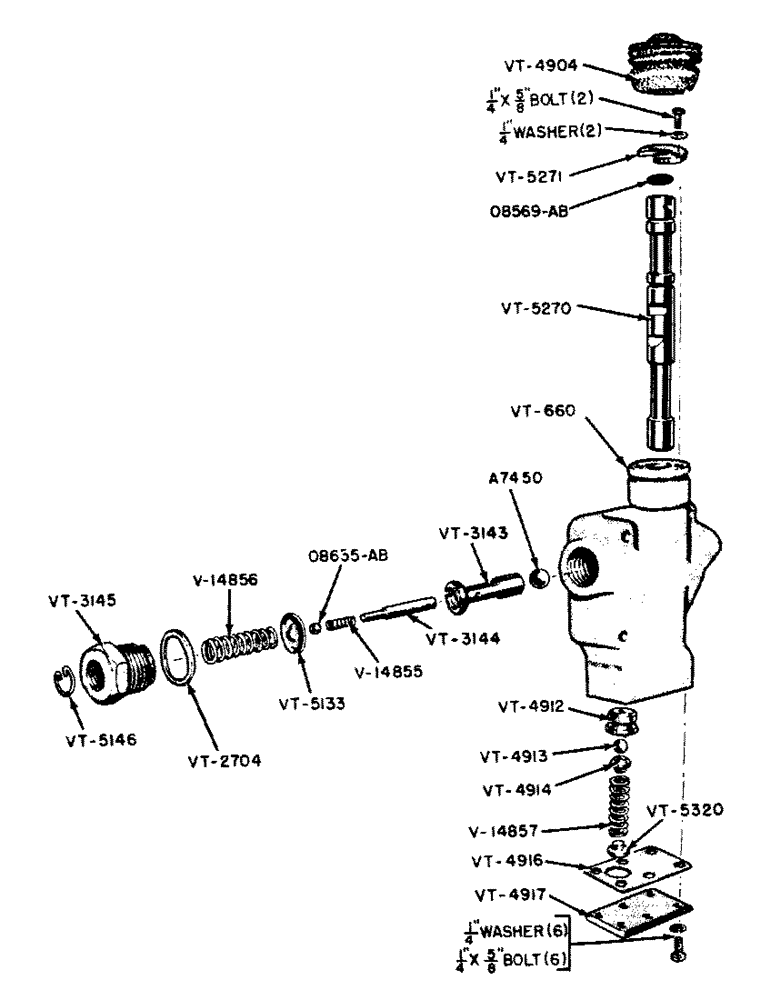

Запчасти Case IH VAI-SERIES (098) - VTA3110 SINGLE CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

O8569AB

X

"O" RING

1шт.

O8635AB

X

BALL - check valve, 1/4" diameter

1шт.

A7450

X

BALL - check valve, 7/16" diameter

1шт.

V14855

SPRING - check valve plunger

1шт.

V14856

HANDLE

SPRING - check valve plunger retainer

1шт.

V14857

HANDLE

SPRING - relief valve

1шт.

VT660

HOUSING - control

1шт.

VT2704

GASKET

1шт.

VT3143

VALVE - check

1шт.

VT3144

PLUNGER - check valve

1шт.

VT3145

PLUG - check valve

1шт.

VT4904

BOOT - dust

1шт.

VT4912

SEAT - relief valve

1шт.

VT4913

X

BALL - relief valve, 3/8" diameter

1шт.

VT4914

X

WASHER

1шт.

VT4916

GASKET - control cover

1шт.

VT4917

COVER - control

1шт.

1/4 x 5/8" bolt, hexagon head, U.N.C. with lockwasher

6шт.

VT5133

RETAINER - spring

1шт.

VT5146

SNAP RING

1шт.

VT5270

VALVE - control

1шт.

VT5271

WASHER, stop, slotted

1шт.

1/4 x 5/8" bolt, hexagon head, U.N.C.

2шт.

1/4" washer, Shakeproof, I.T.

2шт.

VT5320

SPACER - spring pressure

1шт.

VTA3110

SINGLE CONTROL VALVE ASSEMBLY

1шт.
