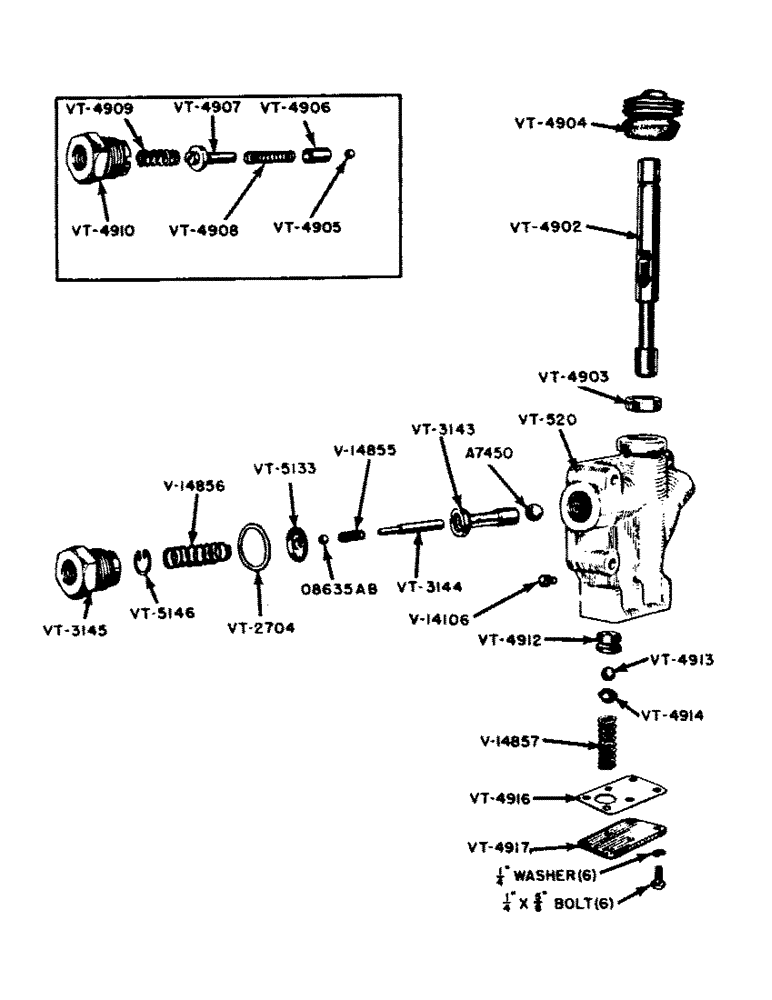

Запчасти Case IH VAI-SERIES (097) - SINGLE CONTROL VALVE ASSEMBLY, VTA2678 AND VTA3015 (08) - HYDRAULICS

O8635AB

X

BALL - check valve, 1/4" diameter

1шт.

A7450

X

BALL - check valve, 7/16" diameter

1шт.

V14106

BOLT

SCREW - set, dog point

1шт.

V14855

SPRING - check valve

1шт.

V14856

HANDLE

SPRING - check valve ball

1шт.

V14857

HANDLE

SPRING - relief valve

1шт.

VT520

HOUSING - control

1шт.

VT2704

GASKET

1шт.

VT3143

VALVE - check

1шт.

VT3144

PLUNGER - check valve

1шт.

VT3145

PLUG - check valve spring

1шт.

VT4902

VALVE - control

1шт.

VT4903

OIL SEAL

1шт.

VT4904

BOOT - dust

1шт.

VT4905

X

BALL - check valve, 5/16" diameter (Use VT4906 and VT4907)

1шт.

VT4906

LOCK - ball, check valve (Use VTA870)

1шт.

VT4907

VALVE - check (Use VTA870)

1шт.

VT4908

SPRING - ball lock

1шт.

VT4909

X

SPRING - check valve

1шт.

VT4910

PLUG - spring

1шт.

VT4912

SEAT - relief valve

1шт.

VT4913

X

BALL - relief valve, 3/8" diameter

1шт.

VT4914

X

WASHER

1шт.

VT4915

X

SPRING - relief valve (Use V14857)

1шт.

VT4916

GASKET - housing cover

1шт.

VT4917

COVER - housing

1шт.

1/4 x 5/8" bolt, hexagon head, U.N.C. with lockwasher

6шт.

VT5133

RETAINER - check valve spring

1шт.

VT5146

RING - snap

1шт.

VTA870

CHECK VALVE REPAIR KIT (Consists of: (1) A7450, (1) O8635AB, (1) V14855, (1) V14856, (1) VT2704, (1) VT3143, (1) VT3144, (1) VT3145, (1) VT5133)

1шт.

VTA2678

SINGLE CONTROL VALVE (Complete) (Use VTA3110)

1шт.

VTA3015

SINGLE CONTROL VALVE (Complete) (Use VTA3110)

1шт.
