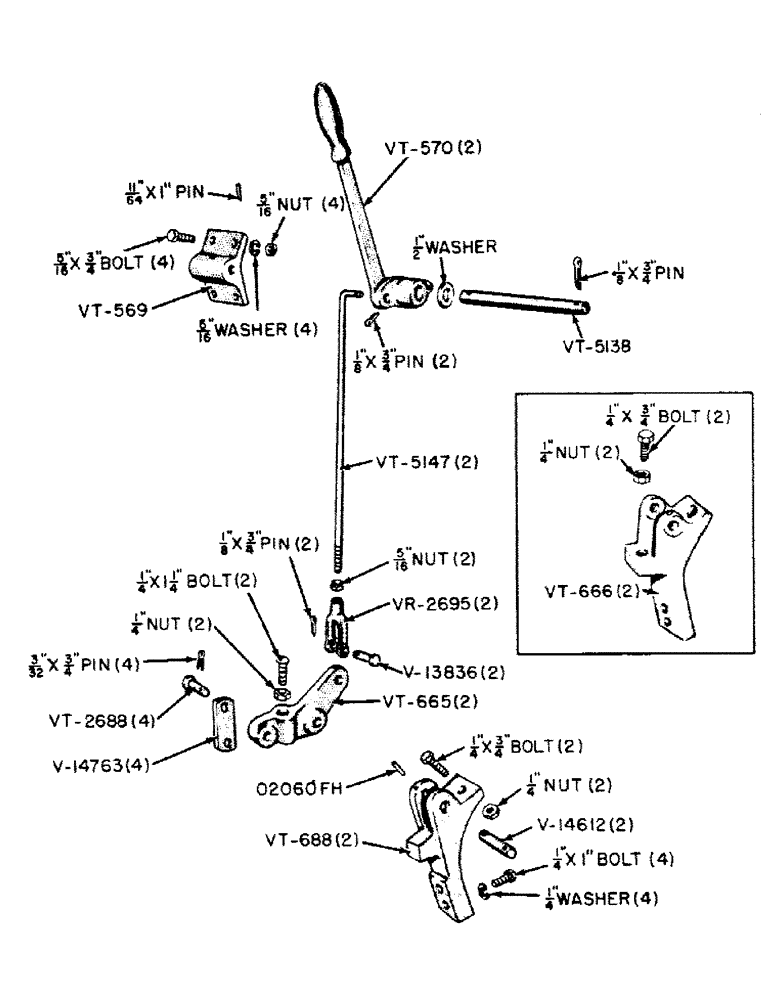

Запчасти Case IH VAI-SERIES (093) - LEVER CONTROLS FOR DOUBLE CONTROL VALVES, FOR VTA1151B AND VTA1151C (08) - HYDRAULICS

O2060FH

X

ROLLPIN - for V14612 pin

2шт.

V13836

PIN - yoke

2шт.

1/8 x 3/4" pin, cotter

2шт.

V14612

CAP COVER

PIN - pivot, bell crank

2шт.

V14763

LINK - connecting

4шт.

VR2695

X

END - yoke

2шт.

VT569

STANDARD - control

1шт.

5/16 x 3/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

4шт.

VT570

LEVER - control

2шт.

VT665

BELLCRANK

2шт.

VT666

BRACKET - mounting, bellcrank (Use VT665, VT688, and 1/4 x 1-1/4" bolt, hexagon head, U.N.C.)

1шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with hexagon jam nut

4шт.

1/4 x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT688

BRACKET - mounting, bellcrank

2шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with hexagon jam nut

2шт.

1/4 x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.

1/4 x 1-1/4" bolt, hexagon head, U.N.C. with hexagon jam nut

2шт.

VT2688

PIN - drilled

4шт.

3/32 x 3/4" pin, cotter

4шт.

VT5138

SHAFT - control lever

1шт.

1/8 x 3/4" pin, cotter

1шт.

11/64 x 1" pin, groove, type no. 2

1шт.

1/2" washer, plain, S.A.E. standard

1шт.

VT5147

ROD - control

2шт.

5/16" nut, hexagon jam, U.N.F.

2шт.

1/8 x 3/4" pin, cotter

2шт.
