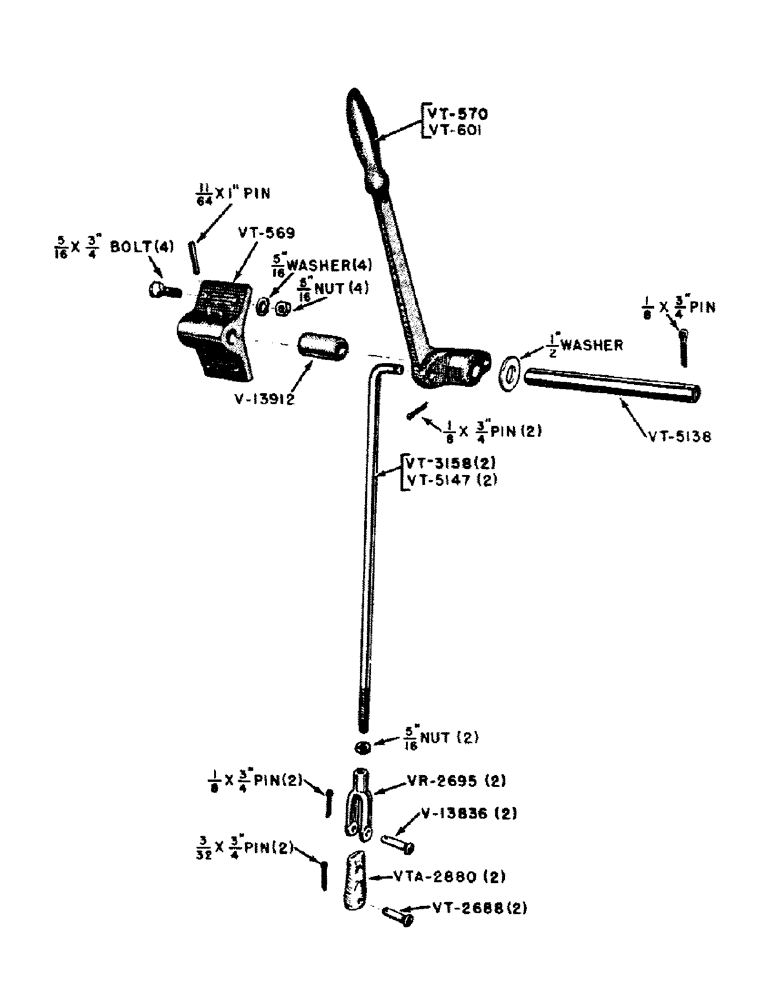

Запчасти Case IH VAI-SERIES (092) - LEVER CONTROLS FOR DOUBLE CONTROL VALVES, FOR VTA1151, VTA1151A & VTA3021 (08) - HYDRAULICS

V13836

PIN - yoke

2шт.

1/8 x 3/4" pin, cotter

2шт.

V13912

SPACER - shaft (For VTA1151A only)

1шт.

VR2695

X

END - yoke

2шт.

VT569

STANDARD - control

1шт.

5/16 x 3/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

4шт.

VT570

LEVER - control (For VTA1151 and VTA3021 only) (See VT601)

2шт.

VT601

LEVER - control (For VTA1151A only) (See VT570)

1шт.

VT2688

RIVET - drilled

2шт.

3/32 x 3/4" pin, cotter

2шт.

VT3158

ROD - control (For VTA3021 only) (See VT5147)

2шт.

5/16" nut, hexagon, jam, U.N.F.

2шт.

1/8 x 3/4" pin, cotter

2шт.

VT5138

SHAFT - control lever

1шт.

1/8 x 3/4" pin, cotter

1шт.

11/64 x 1" pin, groove, type no. 2

1шт.

1/2" washer, plain, S.A.E. standard

1шт.

VT5147

ROD - control (For VTA1151 and VTA1151A) (See VT3158)

2шт.

5/16" nut, hexagon, jam, U.N.F.

2шт.

1/8 x 3/4" pin, cotter

2шт.

VTA2880

PLUNGER EXTENSION

2шт.
