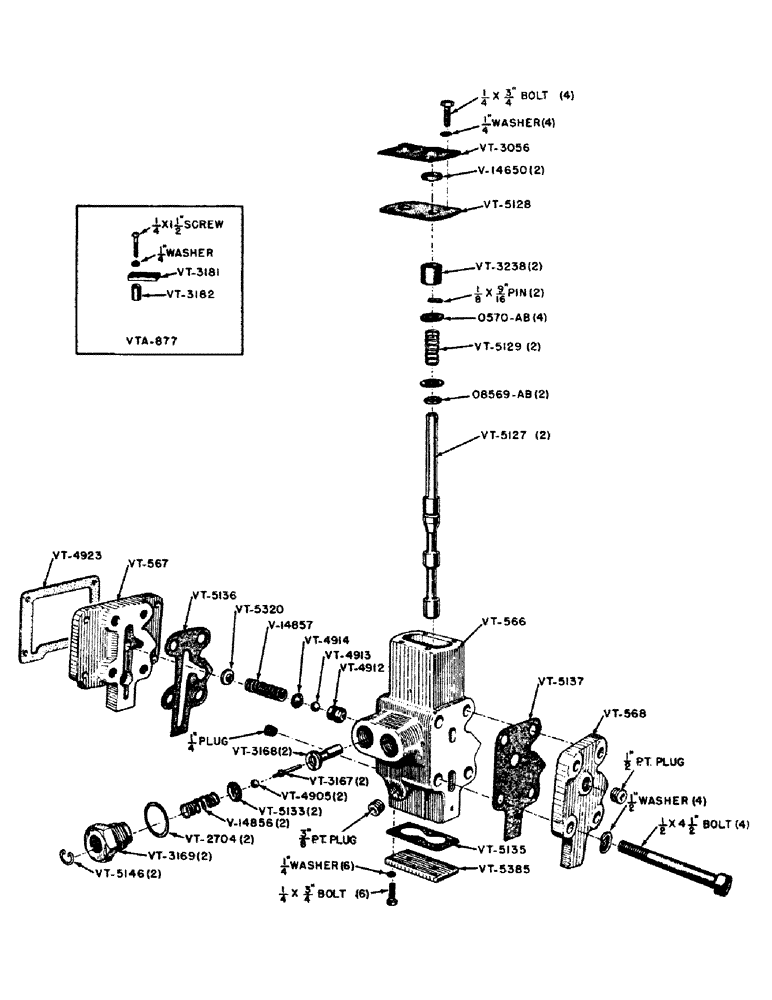

Запчасти Case IH VAI-SERIES (090) - DOUBLE CONTROL VALVE ASSEMBLIES (08) - HYDRAULICS

O570AB

WASHER

4шт.

O8569AB

X

"O" RING

2шт.

V14650

SEAL - dust, felt

2шт.

V14856

HANDLE

SPRING - check valve

2шт.

V14857

HANDLE

SPRING - relief valve

1шт.

VT566

CONTROL BODY

1шт.

1/4" P.T. plug, pipe, countersunk pattern

1шт.

3/8" P.T. plug, pipe, countersunk pattern

1шт.

1/2 x 4-1/2" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT567

ADAPTER

1шт.

VT568

COVER - end

1шт.

1/2" P.T. plug, pipe, countersunk pattern

1шт.

VT2704

GASKET

2шт.

VT3056

SHIELD - dust seal

1шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT3167

ROD - check valve

2шт.

VT3168

VALVE - check

2шт.

VT3169

PLUG - check valve spring

2шт.

VT3181

STOP - valve (See VTA877)

1шт.

1/4 x 1-1/2" screw, machine, round head, U.N.C. with lockwasher

1шт.

VT3182

BUSHING - valve stop (See VTA877)

1шт.

VT3238

X

SPACER

2шт.

VT4905

X

BALL - check valve, 5/16" diameter

2шт.

VT4912

SEAT - relief valve (Early units)

1шт.

VT4913

X

BALL - 3/8" diameter

1шт.

VT4914

X

WASHER - relief valve

1шт.

VT4923

X

GASKET - control housing

1шт.

VT5127

VALVE - lift

2шт.

1/8 x 9/16" pin, groove type no. 5

2шт.

VT5128

COVER - top

1шт.

VT5129

X

SPRING

2шт.

VT5133

RETAINER - spring

2шт.

VT5135

GASKET - bottom cover

1шт.

VT5136

GASKET - inner

1шт.

VT5137

GASKET - outer

1шт.

VT5146

SNAP RING

2шт.

VT5320

SPACER - spring pressure

1шт.

VT5385

COVER - bottom

1шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

6шт.

VTA877

DOUBLE CONTROL LOCKOUT ATTACHMENT (Machinery item)

1шт.

VTA1151B

HYDRAULIC DOUBLE CONTROL VALVE (Complete) (Used with Eagle Hitch)

1шт.

VTA1151C

HYDRAULIC DOUBLE CONTROL VALVE (Complete)

1шт.

5/16 x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.
