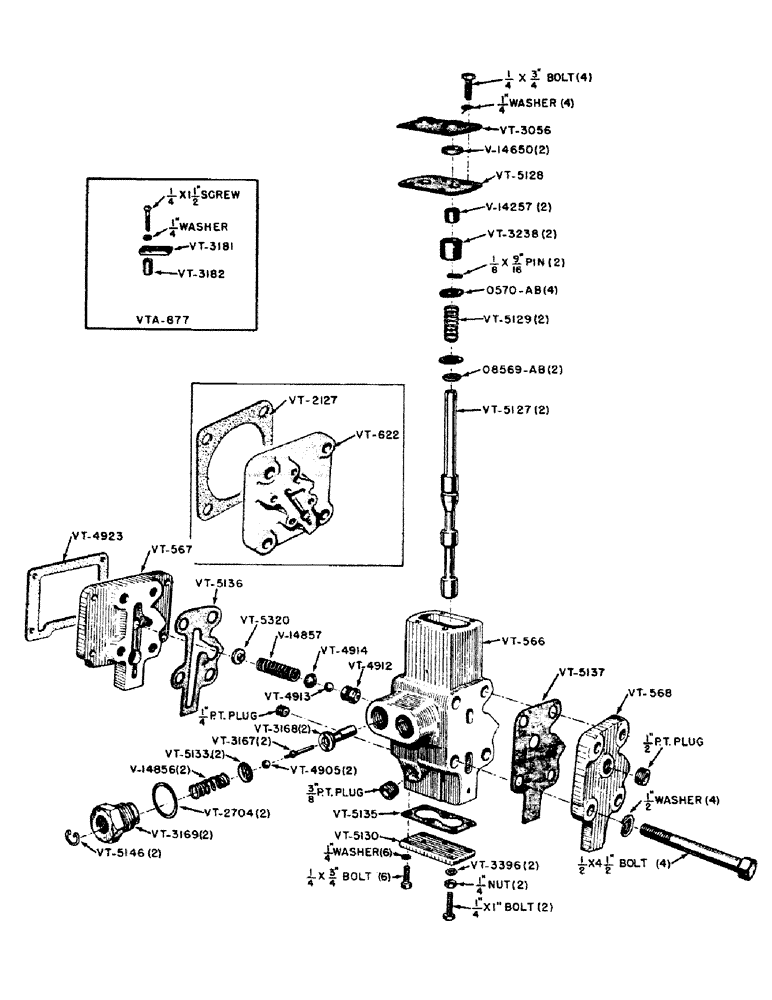

Запчасти Case IH VAI-SERIES (088) - DOUBLE CONTROL VALVE ASSEMBLIES, CAP SCREWS AT BOTTOM OF PLUNGERS REGULATE OF RAISING & LOWERING (08) - HYDRAULICS

O570AB

WASHER

4шт.

O8569AB

X

"O" RING

2шт.

O8635AB

X

BALL - check valve, 1/4" (Used with VT5131)

2шт.

V14257

X

SPACERS

2шт.

V14650

SEAL - dust, felt

2шт.

V14856

HANDLE

SPRING - check valve (Used with VT3169)

2шт.

V14857

HANDLE

SPRING - relief valve

1шт.

VT566

CONTROL BODY

1шт.

1/4" P.T. plug, pipe, countersunk

1шт.

3/8" P.T. plug, pipe, countersunk

1шт.

1/2 x 4-1/2" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT567

ADAPTER (For VTA1151 and VTA1151A) (See VT622)

1шт.

VT568

COVER - end

1шт.

1/2" P.T. plug, pipe, countersunk pattern

1шт.

VT622

ADAPTER (For VTA3021) (See VT567)

1шт.

VT2127

X

GASKET - belt pulley location (Used with VTA3021)

1шт.

VT2704

GASKET

2шт.

VT3056

SHIELD - dust seal

1шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT3167

ROD - check valve

2шт.

VT3168

VALVE - check

2шт.

VT3169

PLUG - check valve spring

2шт.

VT3181

STOP - valve (See VTA877)

1шт.

1/4 x 1-1/2" screw, machine, round head, U.N.C. with lockwasher

1шт.

VT3182

BUSHING - valve stop (See VTA877)

1шт.

VT3238

X

SPACER

2шт.

VT3396

X

GASKET

2шт.

VT4905

X

BALL - check valve, 5/16" diameter

2шт.

VT4909

X

SPRING - check valve (Use with VT5131)

2шт.

VT4910

PLUG - check valve spring (Use with VT5131)

2шт.

VT4912

SEAT - relief valve (Early units)

1шт.

VT4913

X

BALL - 3/8" diameter

1шт.

VT4914

X

WASHER - relief valve

1шт.

VT4923

X

GASKET - control housing (Used with VTA1151 and VTA1151A)

1шт.

VT5127

VALVE - lift

2шт.

1/8 x 9/16" pin, groove type no. 5

2шт.

VT5128

COVER - top

1шт.

VT5129

X

SPRING

2шт.

VT5130

COVER - bottom

1шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

6шт.

1/4 x 1" bolt, hexagon head, U.N.C. with hexagon nut

2шт.

VT5131

VALVE - check (Use VTA874)

1шт.

VT5132

ROD - check valve (Use VTA874)

1шт.

VT5133

RETAINER - spring

2шт.

VT5135

GASKET

1шт.

VT5136

GASKET - inner

1шт.

VT5137

GASKET - outer

1шт.

VT5146

RING - snap

2шт.

VT5320

SPACER - spring pressure

1шт.

VTA874

DOUBLE CONTROL CHECK VALVE (Repair kit) (Consists of: (2) V14856, (2) VT2704, (2) VT3167, (2) VT3168, (2) VT3169, and (2) VT4905)

1шт.

VTA877

DOUBLE CONTROL LOCKOUT ATTACHMENT (Machinery item)

1шт.

VTA1151

HYDRAULIC DOUBLE CONTROL VALVE (Complete)

1шт.

VTA1151A

HYDRAULIC DOUBLE CONTROL VALVE (Complete) (For used with Eagle Hitch)

1шт.

5/16 x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VTA3021

HYDRAULIC DOUBLE CONTROL VALVE AND ADAPTER

1шт.
