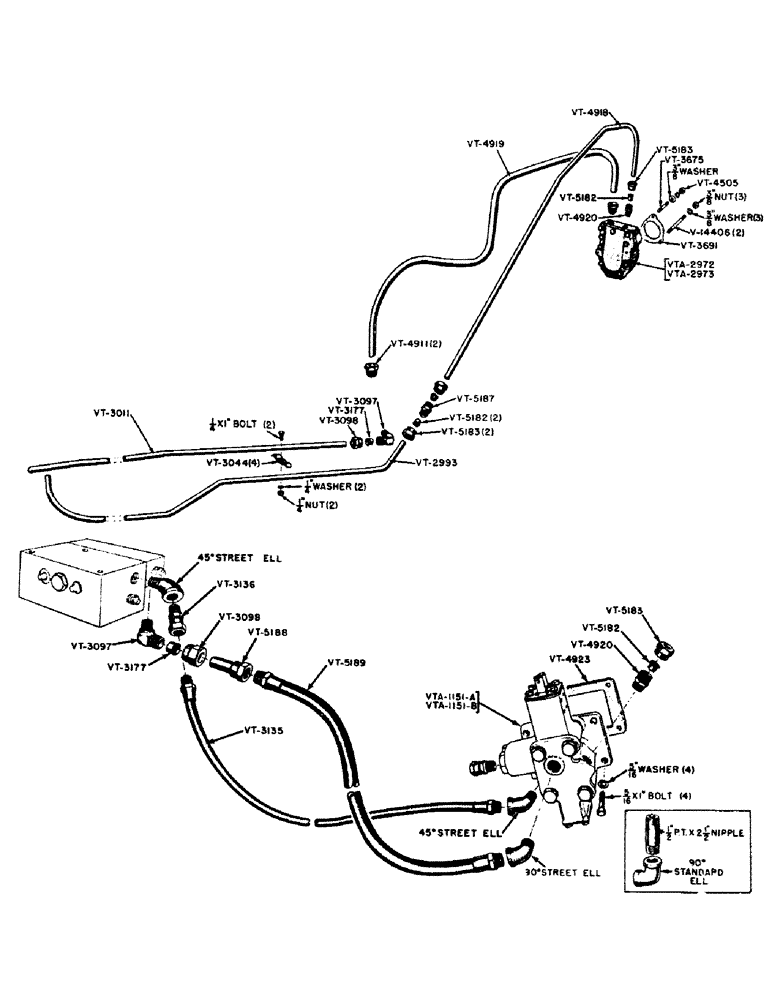

Запчасти Case IH VAI-SERIES (086) - HYDRAULIC PUMP AND LINES WITH EAGLE HITCH, LINES FOR EAGLE HITCH WITH DOUBLE CONTROL (08) - HYDRAULICS

V14406

STUD - 3/8" diameter x 5-1/4"

2шт.

3/8" nut, hexagon, U.N.C. with lockwasher

2шт.

VT2993

LINE - pressure, extension (To depth control)

1шт.

VT3011

LINE - return (Control to torque tube)

1шт.

VT3044

CLAMP - pressure and return line

4шт.

1/4 x 1" screw, machine round head, U.N.C. w/ square nut and lockwasher

2шт.

VT3097

ELBOW - coupling

1шт.

VT3098

NUT - coupling

1шт.

VT3135

HOSE - hydraulic pressure (Eagle Hitch with double control)

1шт.

VT3136

UNION - adapter, hydraulic hose (Eagle Hitch with double control)

1шт.

VT3177

X

SLEEVE - coupling

1шт.

VT3675

X

STUD - 3/8" diameter x 1-1/2" (Magneto to ignition only)

1шт.

3/8" washer, Shakeproof, I.T.

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VT3691

X

GASKET - pump mounting

1шт.

VT4505

NUT - hexagon, U.N.C. (For VT3675) (Magneto ignition only)

1шт.

VT4911

NUT - tube

2шт.

VT4918

LINE - pressure (Pump to extension or double valve)

1шт.

VT4919

LINE - intake

1шт.

VT4920

BODY - connector

2шт.

VT4923

X

GASKET - control housing

1шт.

VT5182

SLEEVE - coupling

4шт.

VT5183

NUT - coupling

4шт.

VT5187

BODY - coupling

1шт.

VT5188

EXTENSION - adapter (Eagle Hitch with double control)

1шт.

VT5189

HOSE - return (Depth control to double control)

1шт.

VTA1151A

CONTROL VALVE - double acting (See VTA1151B) (Tractors before no. 5456951)

1шт.

VTA1151B

CONTROL VALVE - double acting (See VTA1151A) (Tractors after no. 5456950)

1шт.

3/8" P.T. x 45 degree fitting, street ell

2шт.

1/2" P.T. x 90 degree fitting, street ell

1шт.

1/2" P.T. x 90 degree fitting, pipe standard ell (VAI5 mower)

1шт.

1/2" P.T. x 2-1/2" nipple, pipe (VAI5 mower)

1шт.

VTA2972

PUMP ASSEMBLY (Distributor ignition)

1шт.

VTA2973

PUMP ASSEMBLY (Magneto ignition)

1шт.
