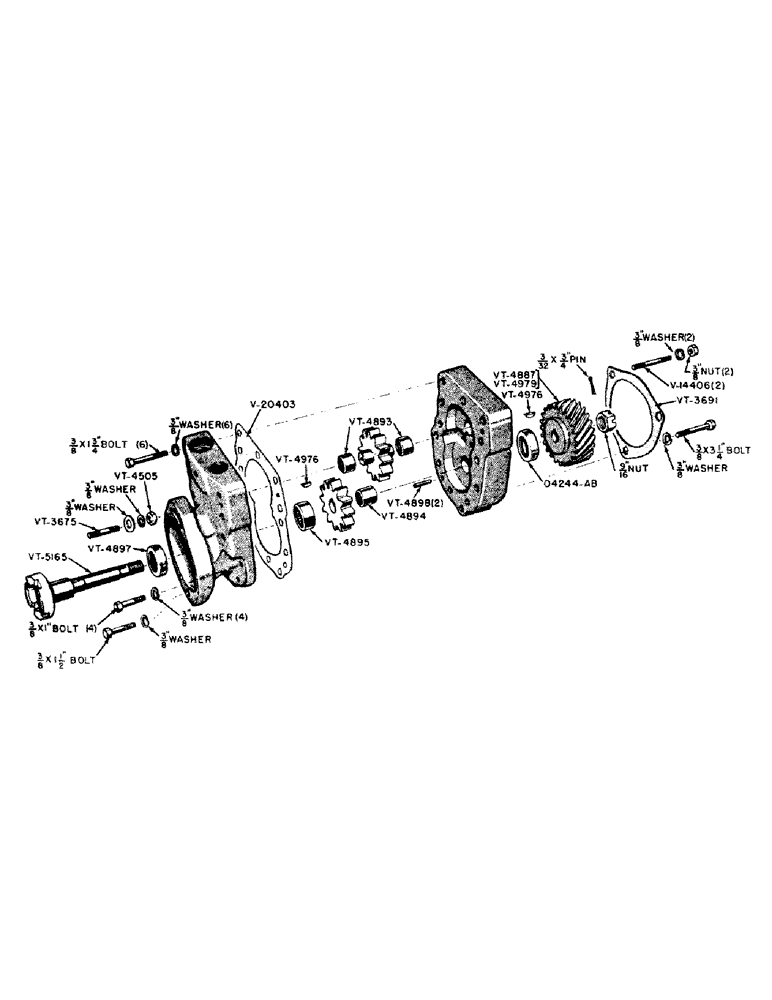

Запчасти Case IH VAI-SERIES (085) - HYDRAULIC PUMP ASSEMBLIES, FOR MAGNETO IGNITION (08) - HYDRAULICS

O4244AB

OIL SEAL - front

1шт.

V14406

STUD - 3/8 x 5-1/4"

2шт.

3/8" nut, hexagon, U.N.C. with lockwasher

2шт.

V20403

X

GASKET - body and cover

1шт.

VT3675

X

STUD - 3/8 x 1-1/2"

1шт.

3/8" washer, Shakeproof, I.T.

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VT3691

X

GASKET - mounting

1шт.

VT4505

NUT - hexagon, U.N.C.

1шт.

VT4887

GEAR - drive, 1-1/16" wide

1шт.

VT4893

X

BEARING - needle (Torrington no. B108)

2шт.

VT4894

X

BEARING - needle (Torrington no. B1012)

1шт.

VT4895

X

BEARING - needle (Torrington no. B148)

1шт.

VT4897

X

OIL SEAL - rear

1шт.

VT4898

PIN - dowel

2шт.

VT4976

X

KEY - Woodruff, no. 2

2шт.

VT4979

GEAR - drive, 7/8" wide

1шт.

VT5165

SHAFT - drive

1шт.

9/16" - 18 U.N.F. nut, hexagon, slotted light series

1шт.

3/32 x 3/4" pin, cotter

1шт.

VTA2973

HYDRAULIC PUMP COMPLETE WITH DRIVE GEAR (Engines after no. A4700000) (1-1/16" wide drive gear)

1шт.

VTA2975

HYDRAULIC PUMP COMPLETE WITH DRIVE GEAR (Engines before no. A4700000) (7/8" wide drive gear)

1шт.

3/8 x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.

3/8 x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

1шт.

3/8 x 1-3/4" bolt, hexagon head, U.N.C. with lockwasher

6шт.

3/8 x 3-1/2" bolt, hexagon head, U.N.C. with lockwasher

1шт.
