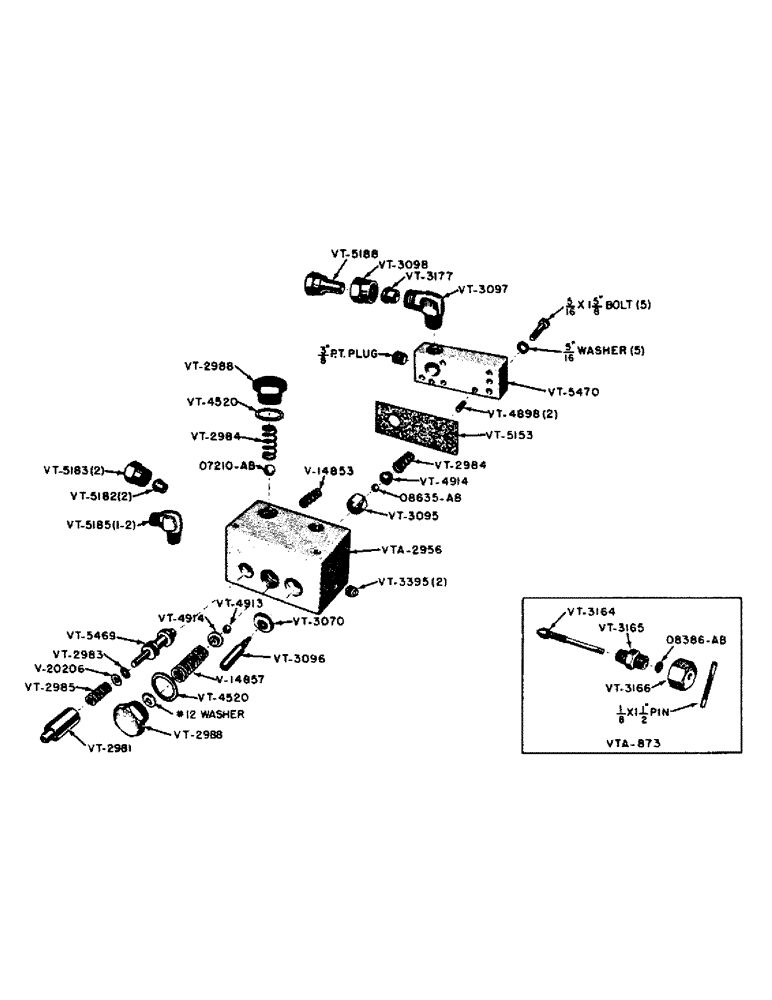

Запчасти Case IH VAI-SERIES (083) - HYDRAULIC DEPTH CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

O7210AB

X

BALL - steel, 1/2" diameter

1шт.

O8386AB

X

"O" RING - restrictor seal (See VTA873)

1шт.

O835AB

BALL - steel, 1/4" diameter

1шт.

V14583

SPRING - pressure plunger

1шт.

V14857

HANDLE

SPRING - relief plug

1шт.

No. 12 washer, plain, S.A.E. standard

1шт.

V20206

WASHER - spacer

1-2шт.

VT2980

CAP - depth control (Use VT5470)

1шт.

VT2981

PLUNGER - depth control

1шт.

VT2982

VALVE - pressure control (Use VT5469)

1шт.

VT2983

X

"O" RING - depth control valve

1шт.

VT2984

X

SPRING - depth control

2шт.

VT2985

X

SPRING - depth control bumper

1шт.

VT2988

PLUG - pressure relief

2шт.

VT3070

X

OIL SEAL - plunger

1шт.

VT3095

X

VALVE - release

1шт.

VT3096

PLUNGER - release valve

1шт.

VT3097

ELBOW - coupling

1шт.

VT3098

NUT - coupling

1шт.

VT3164

VALVE - needle (See VTA873)

1шт.

1/8 x 1-1/2" pin, groove, type no. 5

1шт.

VT3165

BODY - restrictor (See VTA873)

1шт.

VT3166

CAP - restrictor (See VTA873)

1шт.

VT3177

X

SLEEVE - coupling

1шт.

VT3395

X

PLUG - pipe 1/4"

2шт.

VT4520

X

GASKET - relief plug

2шт.

VT4898

PIN - dowel

2шт.

VT4913

X

BALL - relief plug

1шт.

VT4914

X

WASHER - relief plug

2шт.

VT5153

X

GASKET

1шт.

VT5182

SLEEVE - coupling

2шт.

VT5183

NUT - coupling

2шт.

VT5185

BODY - 90 degreee elbow coupling

2шт.

VT5188

EXTENSION - adapter unit (Used with double control valve)

1шт.

VT5469

VALVE - depth control

1шт.

VT5470

CAP - depth control

1шт.

5/16 x 1-5/8" bolt, hexagon head, U.N.C. with lockwasher

5шт.

3/8" P.T. plug, pipe, countersunk head

1шт.

VTA873

HYDRAULIC OIL FLOW RESTRICTOR ATTACHMENT (Consists of: (1) O8386AB, (1) VT3164, (1) VT3165, and (1) VT3166)

1шт.

VTA2852

DEPTH CONTROL VALVE ASSEMBLY (Complete)

1шт.

5/16 x 3-1/4" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VTA2956

DEPTH CONTROL BODY AND SLEEVE

1шт.
