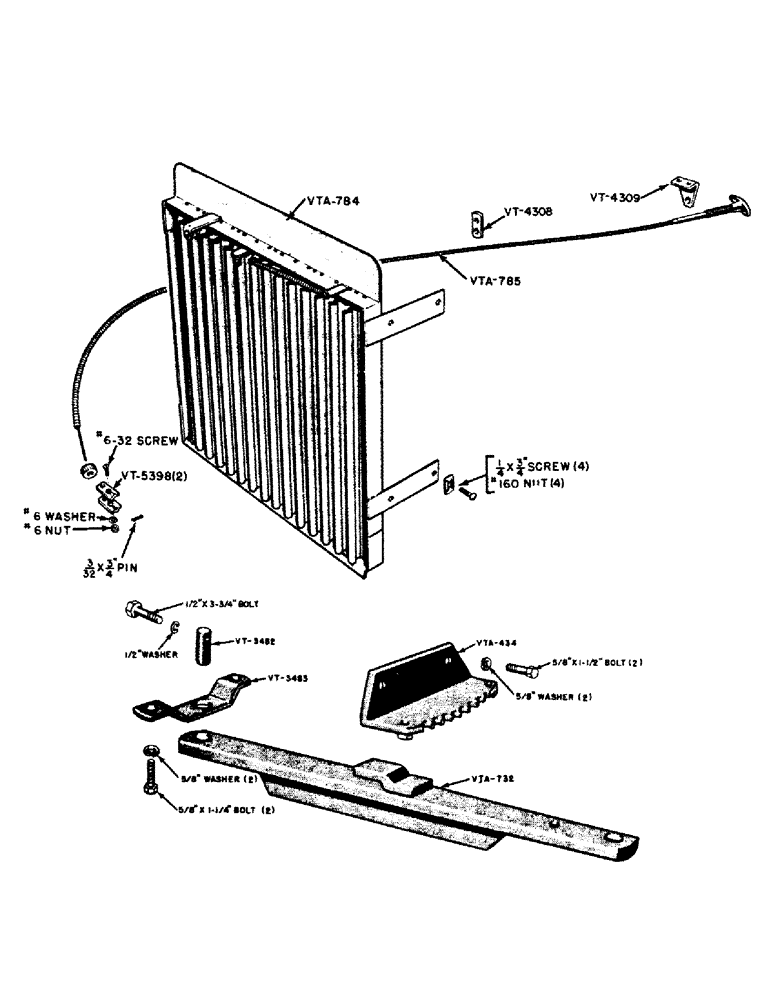

Запчасти Case IH VAI-SERIES (106) - RADIATOR SHUTTER (06) - POWER TRAIN

VT4308

CLIP - control cable support

1шт.

VT4309

BRACKET - control to instrument panel

1шт.

VT5398

LINK - connecting (Use VTA3232)

1шт.

No. 6 - 32 x 1/4" screw, machine, round head, U.N.C. with hexagon nut

1шт.

No. 6 washer, Shakeproof no. 1206

1шт.

VTA784

SHUTTER ASSEMBLY

1шт.

3/32 x 3/4" pin, cotter

1шт.

1/4 x 3/4" screw, machine, round head, U.N.C.

4шт.

No. 160 nut, speed

4шт.

VTA785

CABLE - control

1шт.

VTA3232

CONNECTING LINK ASSEMBLY (Includes: (2) VT5398, no. 6-32 x 1/4" screw, machine, with hexagon nut and Shakeproof lockwasher)

1шт.

VT3482

PIN - drawbar, swinging

1шт.

1/2 x 3-3/4" bolt, hexagon head, U.N.C. with lockwasher, swinging drawbar

1шт.

VT3483

BRACKET - drawbar, front, swinging

1шт.

5/8 x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher, swinging drawbar

2шт.

VT3541

STUD - drawbar (Use 5/8 x 1-1/2" bolt hexagon head, U.N.C.), swinging

1шт.

5/8" nut, hexagon, U.N.F. with lockwasher, swinging drawbar

2шт.

VTA434

SUPPORT ASSEMBLY - drawbar, swinging

1шт.

5/8 x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher, swinging drawbar

2шт.

VTA732

DRAWBAR, swinging

1шт.
