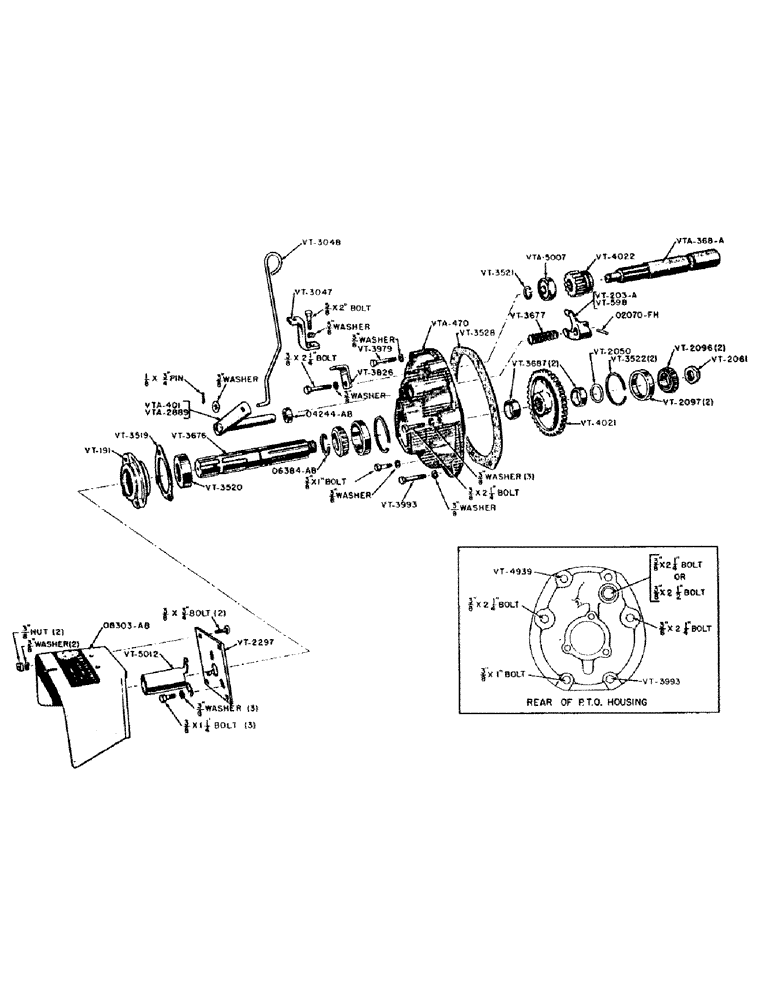

Запчасти Case IH VAI-SERIES (104) - POWER TAKE-OFF (06) - POWER TRAIN

O4244AB

OIL SEAL - shift rod

1шт.

O6384AB

SNAP RING

1шт.

O7086AB

X

BEARING - drive gear (8604 N.D.) (Use VTA5007)

1шт.

O8303AB

X

GUARD - power take-off

1шт.

O2070FH

X

ROLL PIN (1/4 x 1-1/8")

1шт.

VT189

HOUSING - power take-off (Use VTA470)

1шт.

VT191

X

RETAINER - oil seal

1шт.

VT203A

FORK - shifter (Tractors before no. 5450500) (See VT598)

1шт.

VT598

FORK - shifter (Tractors after no. 5450499) (See VT203A)

1шт.

VT2050

X

WASHER - spring

1шт.

VT2061

X

NUT - adjusting

1шт.

VT2096

X

CONE - bearing (Timken no. 14137A)

2шт.

VT2097

X

CUP - bearing (Timken no. 14276)

2шт.

VT2297

X

PLATE - mounting, guard

1шт.

3/8 x 3/4" bolt, carriage, with hexagon nut and lockwasher

2шт.

3/8 x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VT3047

BRACKET - control rod (Tractors after no. 5450499)

1шт.

5/8 x 2" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VT3048

ROD - control (Tractors after no. 5450499)

1шт.

1/8 x 3/4" pin, cotter

1шт.

3/8" washer, plain, S.A.E. standard

1шт.

VT3519

X

GASKET - bearing carrier

1шт.

VT3520

X

OIL SEAL

1шт.

VT3521

X

SNAP RING - drive shaft bearing

1шт.

VT3522

X

SNAP RING - drive shaft bearing

2шт.

VT3528

X

GASKET - power take-off housing

1шт.

VT3676

SHAFT - power take-off

1шт.

VT3677

X

SPRING - throw-out

1шт.

VT3687

X

SPACER - drive gear

2шт.

VT3826

STOP - lever (Tractors before no. 5450500)

1шт.

VT3848

X

PIN - shift fork (Use O2070FH0

1шт.

VT3979

BOLT - ground body, 3/8 x 2-1/4"

1шт.

3/8" washer, lock

1шт.

VT3993

BOLT - ground body, 3/8 x 1"

1шт.

3/8" washer, lock

1шт.

VT4021

X

GEAR - driven, 38 teeth

1шт.

VT4022

X

GEAR - drive, 14 teeth

1шт.

VT5012

X

GUARD - tubular, power take-off

1шт.

VTA368A

SHAFT AND SLEEVE - drive

1шт.

VTA401

LEVER ASSEMBLY - shift (Tractors before no. 5450500) (See VTA2889)

1шт.

VTA470

HOUSING - with bearing cups and snap rings

1шт.

3/8 x 1" bolt, hexagon head, U.N.C. with lockwasher

1шт.

3/8 x 2-1/4" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VTA2889

SHIFTER ROD AND LEVER ASSEMBLY (Tractors after no. 5450499) (See VTA401)

1шт.

VTA5007

X

BEARING - drive shaft (87604 N.D.)

1шт.
