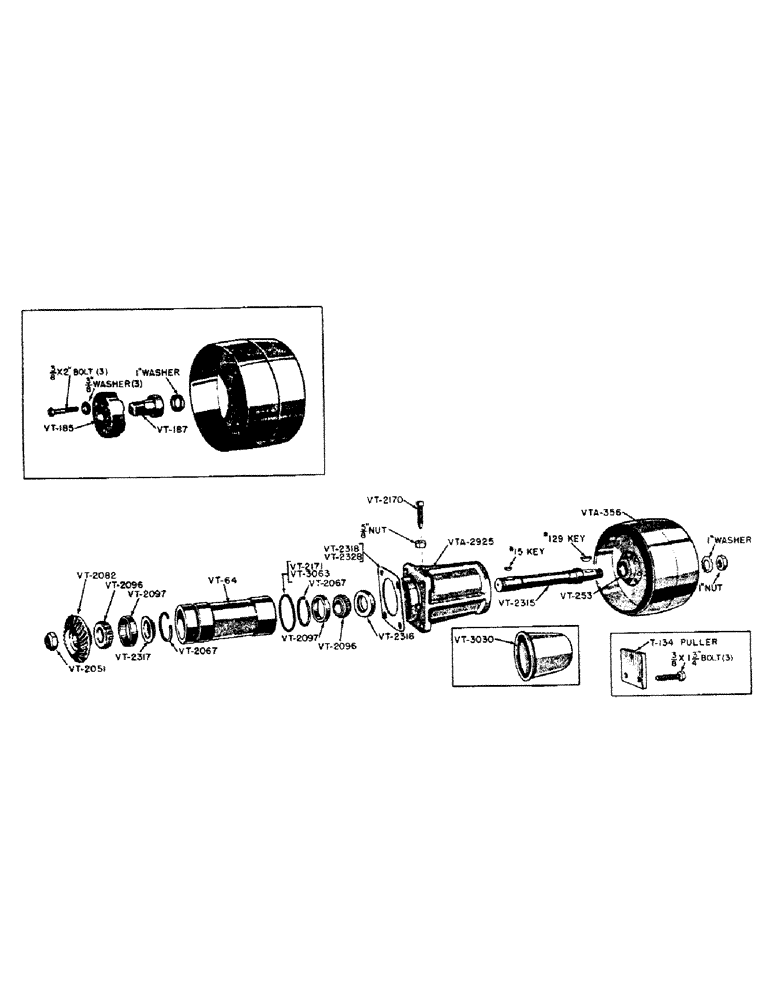

Запчасти Case IH VAI-SERIES (103) - BELT PULLEY ATTACHMENT (06) - POWER TRAIN

T134

PULLER - belt pulley

1шт.

3/8 x 1-3/4" bolt, hexagon head, U.N.C.

3шт.

V14104

SUPPORT

BOLT - puller (Use 3/8 x 1-3/4" bolt, hexagon head, U.N.C.)

1шт.

VT63

HOUSING - belt pulley (Use VTA2925)

1шт.

VT64

SLEEVE - belt pulley shaft

1шт.

VT185

FLANGE - belt pulley (Tractors before no. 4829894)

1шт.

3/8 x 2" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VT187

NUT - belt pulley (Tractors before no. 4828894)

1шт.

VT253

HUB - pulley (See VTA356)

1шт.

5/16 x 7/8" rivet, flat head

6шт.

VT2051

NUT - adjusting

1шт.

VT2067

X

SNAP RING

1шт.

VT2082

GEAR - belt pulley shaft

1шт.

VT2096

X

CONE - bearing (Timken no. 14137A)

2шт.

VT2097

X

CUP - bearing (Timken no. 14276)

2шт.

VT2170

SCREW - set, sleeve

1шт.

5/8" nut, hexagon, U.N.C.

1шт.

VT2171

OIL SEAL - sleeve, felt (Tractors before no. 5450500)

1шт.

VT2205

STUD - belt pulley mounting, 1/2 x 2" U.N.F. (Use 1/2 x 1-1/2" bolt, hexagon head, U.N.C.)

1шт.

1/2" nut, hexagon, U.N.F.

1шт.

1/2" washer, Shakeproof, E.T.

1шт.

VT2315

SHAFT - belt pulley

1шт.

No. 15 key, Woodruff

1шт.

No. 129 key, Woodruff

1шт.

1" nut, hexagon jam, U.N.F., S.F. (Tractors after no. 4829893)

1шт.

1" washer, lock (Tractors before no. 4829894)

1шт.

1" washer, Shakeproof, E.T. (Tractors after no. 4829893)

1шт.

VT2316

X

OIL SEAL - belt pulley shaft

1шт.

VT2317

SHIELD - oil, belt pulley

1шт.

VT2318

SHIM - (.005) housing to torque tube

1шт.

VT2328

SHIM - (.003) housing to torque tube

1шт.

VT3030

COVER - shaft, belt pulley

1шт.

VT3063

X

"O" RING - oil seal (Tractors after no. 5450499)

1шт.

VT3713

X

STUD - belt pulley mounting, 5/8 x 2-1/4", U.N.F. (Use 5/8 x 1-1/2" bolt, hexagon head, U.N.C.)

1шт.

5/8" nut, hexagon, U.N.F.

3шт.

5/8" washer, Shakeproof, E.T.

3шт.

VTA356

PULLEY - belt

1шт.

VTA2925

BELT PULLEY HOUSING AND "O" RING

1шт.

1/2 x 1-1/2" bolt, hexagon head, U.N.C.

1шт.

5/8 x 1-1/2" bolt, hexagon head, U.N.C.

3шт.

1/2" washer, Shakeproof, E.T.

1шт.

5/8" washer, Shakeproof, E.T.

3шт.
