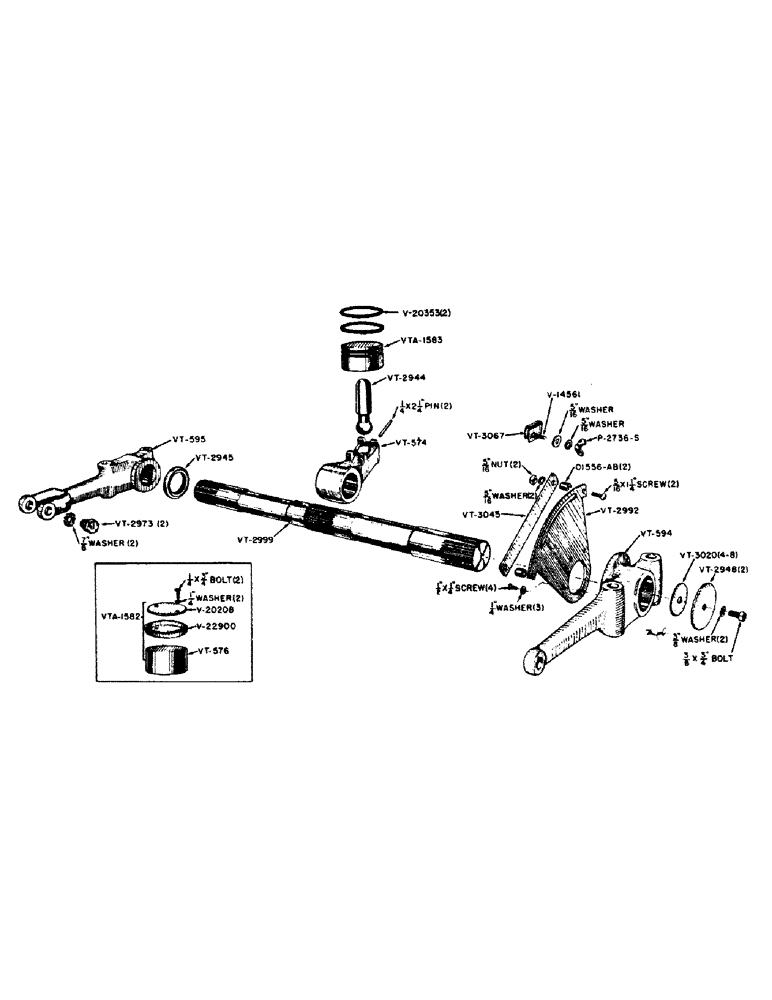

Запчасти Case IH VAI-SERIES (082) - ROCKSHAFT AND LIFT ARMS (06) - POWER TRAIN

O1556AB

SPACERS

2шт.

P2736S

NUT - wing

1шт.

V14561

BOLT - control lever stop

1шт.

5/16" washer, lock

1шт.

5/16" washer, plain, S.A.E. standard

1шт.

V20208

PLATE

WASHER - cup backing (See VT1582)

1шт.

V20353

SCREW

"O" RING - hydraulic piston

2шт.

V22900

BODY

CUP - hydraulic cylinder (See VTA1582)

1шт.

VT574

ARM - rocker

1шт.

1/4 x 2-1/4" pin, groove, type no. 2

2шт.

VT576

PISTON - hydraulic (Use VTA1583)

1шт.

1/4 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT594

ARM - lift, right-hand

1шт.

VT595

ARM - lift, left-hand

1шт.

VT658

PISTON - hydraulic (Use VTA1583)

1шт.

VT2942

CUP - hydraulic cylinder (Use VTA1582)

1шт.

VT2943

PLATE - hydraulic cylinder cup (Use VTA1582)

1шт.

VT2944

ROD - connecting

1шт.

VT2945

X

OIL SEAL

1шт.

VT2948

RETAINER - lift arm

2шт.

3/8 x 3/4" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT2973

X

SCREW - trunnion pivot

2шт.

7/8" washer, Shakeproof, E.T.

2шт.

VT2992

QUADRANT - control

1шт.

1/4 x 1/2" screw, machine, flat head, U.N.C.

4шт.

1/4" washer, Shakeproof (No. 1514) (Some units)

3шт.

VT2999

ROCKSHAFT

1шт.

VT3020

SHIM - end thrust

1шт.

VT3045

GUIDE - control lever

1шт.

5/16 x 1-1/4" screw, machine, round head, U.N.C. with square nut and lockwasher

2шт.

VT3067

STOP - control lever

1шт.

VTA1582

KIT - hydraulic cup and washer (Includes V20208 and V22900)

1шт.

VTA1583

PISTON - hydraulic cylinder with ring assembly (Includes (2) V20353 and (1) VT658)

1шт.
