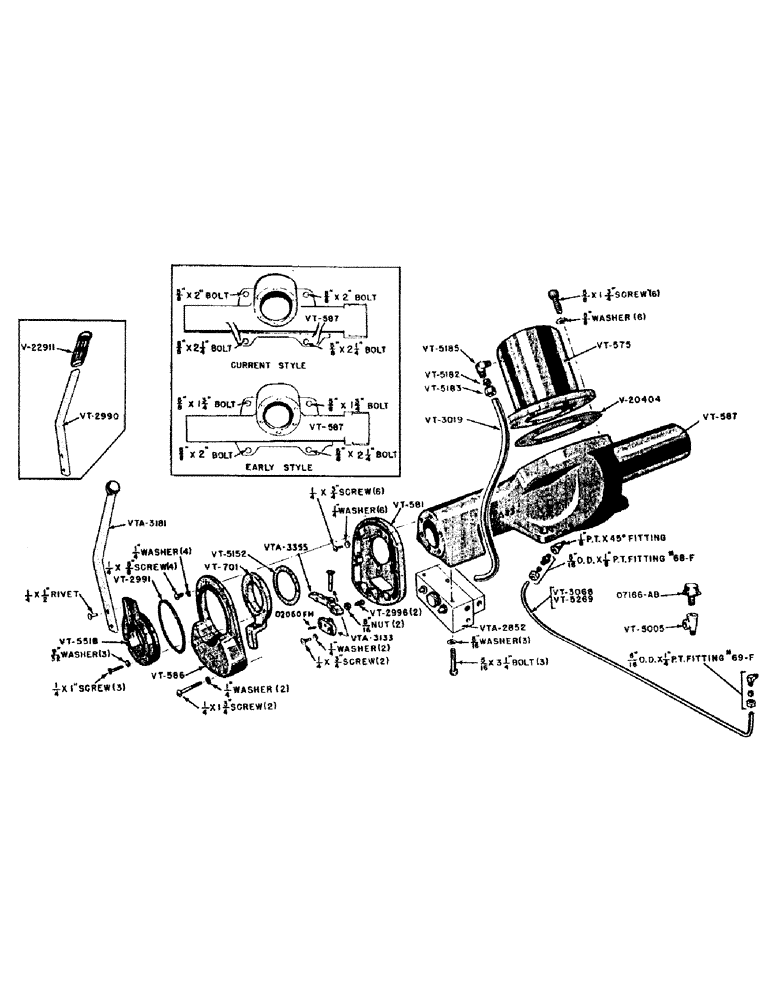

Запчасти Case IH VAI-SERIES (080) - ROCKSHAFT HOUSING AND CONTROL LEVER (06) - POWER TRAIN

O7166AB

X

BREATHER

1шт.

O2060FH

X

ROLLPIN - 1/8 x 3/4" (Used with VT14202)

1шт.

V14202

BOLT

SHAFT - pivot (Use VTA3133)

1шт.

V20404

X

GASKET

1шт.

V22911

HOSE

GRIP - control lever, rubber

1шт.

VT575

CYLINDER - hydraulic lift

1шт.

5/8 x 1-3/4" screw, cap, hexagon head (Allen) U.N.C.

6шт.

5/8" washer, Shakeproof, E.T.

6шт.

VT581

HOUSING - control cam

1шт.

1/4 x 3/4" screw, machine, flat head, U.N.C.

6шт.

1/4" washer, countersunk (Shakeproof no. 1514)

6шт.

VT582

LEVER - actuating (Tractors before no. 6002667) (Use VTA3355 and VT701)

1шт.

VT583

BLOCK - bearing (Use VT3133)

1шт.

1/4 x 3/4" screw, machine, flat head, U.N.C.

2шт.

1/4" washer, countersunk (Shakeproof no. 1514)

2шт.

VT584

BASE - control lever (Use VT5518)

1шт.

VT585

CAM - control (Tractors before no. 6002667) (Use VTA3355 and VT701) (See VT701)

1шт.

VT586

COVER - control cam housing

1шт.

1/4 x 5/8" screw, machine, round head, U.N.C. with lockwasher

4шт.

1/4 x 1-3/4" screw, machine, round head, U.N.C. with lockwasher

2шт.

VT587

HOUSING - rockshaft

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

3шт.

1/8" P.T. x 30 degree fitting, grease (Lincoln no. 5100)

1шт.

1/8" P.T. plug, pipe, square head, standard (Tractors before no. 5558605)

1шт.

1/8" P.T. x 45 degree fitting, pipe (Steet ell) (Tractors after no. 5558064)

1шт.

1/8" P.T. x 5/16" O.D. fitting, connector (Imperial no. 68F)

1шт.

5/8 x 1-3/4" bolt, hexagon head, U.N.C. with lockwasher (Front bolts)

2шт.

For rockshaft housings without reinforcing webs.

1шт.

5/8 x 2" bolt, hexagon head, U.N.C. with lockwasher (Left rear)

1шт.

For rockshaft housings without reinforcing webs.

1шт.

5/8 x 2" bolt, hexagon head, U.N.C. with lockwasher (Front bolts)

2шт.

For rockshaft housings with reinforcing webs.

1шт.

5/8 x 2-1/4" bolt, hexagon head, U.N.C. with lockwasher (Right rear)

1шт.

For rockshaft housings without reinforcing webs.

1шт.

5/8 x 2-1/4" bolt, hexagon head, U.N.C. with lockwasher (Rear bolts)

2шт.

For rockshaft housings with reinforcing webs.

1шт.

VT701

CAM - control (Tractors after no. 6002666) (See VT585)

1шт.

VT2990

LEVER - control (Use VTA3181)

1шт.

VT2991

X

"O" RING - control lever

1шт.

VT2996

SCREW - adjusting (See VTA3355)

2шт.

5/16" nut, hexagon, jam, U.N.F.

2шт.

VT3019

LINE - oil, Serial Range: (Control-ram)

1шт.

VT3043

GRIP - rubber control lever (Use V22911)

1шт.

VT3068

LINE - breather, 51" long (Tractors before no. 5558065)

1шт.

VT5005

X

TEE - adapter, breather line (Tractors before no. 5558065)

1шт.

VT5152

SHIM - depth control

1шт.

VT5182

SLEEVE COUPLING

1шт.

VT5183

NUT - coupling (See page 80)

1шт.

VT5185

FITTING - elbow

1шт.

VT5269

LINE - breather, 31-1/2" long

1шт.

1/4" P.T. x 5/16" O.D. fitting, connector (Imperial no. 69F)

1шт.

VT5518

BASE - control lever

1шт.

1/4 x 1/2" rivet, countersunk head

1шт.

1/4 x 1" screw, machine, flat head, U.N.C.

3шт.

9/32" washer, countersunk (Shakeproof no. 1516)

3шт.

VT5519

LEVER - actuating (Tractors after no. 6002666) (See VT582) (Use VTA3355)

1шт.

VTA2852

VALVE DEPTH CONTROL (See page 83)

1шт.

5/16 x 1-3/4" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VTA3133

PIVOT SHAFT AND BEARING BLOCK ASSEMBLY (Includes (1) O2060FH, (1) V14202, and (1) VT583)

1шт.

VTA3181

LEVER - depth control

1шт.

VTA3355

ACTUATING LEVER AND ADJUSTING SCREW ASSEMBLY (Includes: (2) VT2996, (1) VT5519, and (2) nuts)

1шт.
