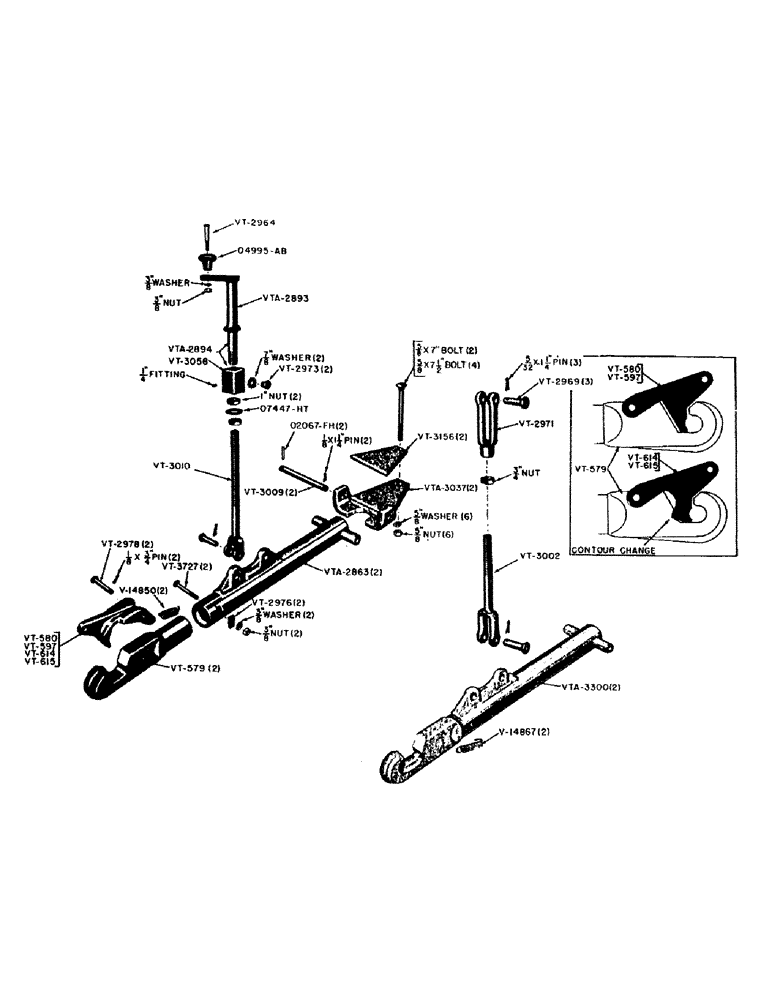

Запчасти Case IH VAI-SERIES (078) - DRAFT ARMS AND LIFT LINKS (06) - POWER TRAIN

O4995AB

X

KNOB - spinner

1шт.

O2067FH

X

ROLLPIN (For VT3009)

2шт.

O7447HT

WASHER - nut lock

1шт.

V14850

X

SPRING - latch (Use with VTA2863) (See V14867)

2шт.

V14867

SPRING - latch (Use with VTA3300) (See V14850)

2шт.

VT579

HITCH - draft arm (Use with VTA2863)

2шт.

VT580

LATCH - hitch, draft arm, right-hand (See VT614)

1шт.

VT597

LATCH - hitch, draft arm, left-hand (See VT615)

1шт.

VT614

LATCH - hitch, draft arm, right-hand (See VT580)

1шт.

VT615

LATCH - hitch, draft arm, left-hand (See VT597)

1шт.

VT2964

BOLT - spinner knob

1шт.

3/8" nut, hexagon, U.N.C. with lockwasher

1шт.

VT2969

X

PIN - yoke

3шт.

5/32 x 1-1/4" pin, cotter

3шт.

VT2971

YOKE - end, female

1шт.

VT2973

X

SCREW - trunnion pivot

2шт.

7/8" washer, Shakeproof, E.T.

2шт.

VT2976

SPACER - wear edge (Use with VTA2863)

2шт.

VT2978

X

PIN - hitch, draft arm

2шт.

1/8 x 3/4" pin, cotter

2шт.

VT3002

YOKE - end, male (6-1/2" long)

1шт.

3/4" nut, hexagon, jam, U.N.F.

1шт.

VT3009

PIN - pivot, draft arm

2шт.

1/8 x 1-1/4" pin, cotter

2шт.

VT3010

LINK - lift, adjustable (15-1/2" long)

1шт.

VT3058

TRUNNION - adjusting screw (See VTA2894)

1шт.

1/4" fitting, grease, straight drive (Lincoln no. 5029)

1шт.

VT3156

STRAP - clamp

2шт.

VT3727

BOLT - drilled, 3/8 x 3" draft arm (Use with VTA2863)

2шт.

3/8" nut, hexagon, U.N.C. with lockwasher

2шт.

VTA2863

ARM - draft, with pivot hitch (See VTA3300)

2шт.

VTA2893

SCREW - adjusting (See VTA2894)

1шт.

1" - 14 nut, hexagon, jam, U.N.F.

2шт.

VTA2894

ADJUSTING SCREW AND TRUNNION ASSEMBLY

1шт.

VTA3037

BRACKET - pivot

2шт.

5/8 x 7" bolt, carriage, with hexagon nut and lockwasher

2шт.

5/8 x 7-1/2" bolt, carriage, with hexagon nut and lockwasher

4шт.

VTA3300

ARM - draft, with hitch (See VTA2863)

2шт.
