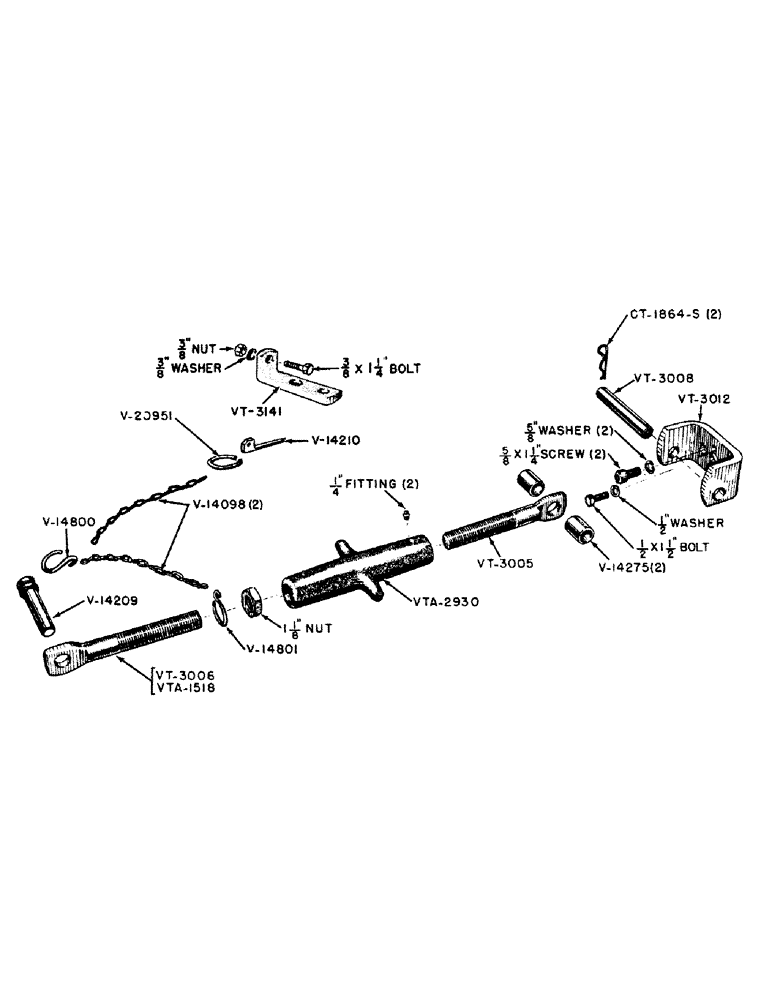

Запчасти Case IH VAI-SERIES (077) - DEPTH ADJUSTING ASSEMBLY (06) - POWER TRAIN

CT1864S

X

PIN - spring (Also used with V14204 pin)

2-3шт.

V14098

CHAIN - anchor (No. 4 Tenso, 8 links)

2шт.

V14204

PIN - mast (Use V14209)

1шт.

V14209

X

PIN - mast

1шт.

V14210

X

PIN - retaining (Use with V14209)

1шт.

V14275

SPACERS

2шт.

V14800

"S" HOOK - small

1шт.

V14801

SET OF BELTS

"S" HOOK - large

1шт.

V20951

BRACKET

SNAP RING

1шт.

VT3005

EYE - depth adjusting link, front

1шт.

VT3006

EYE - depth adjusting link, rear

1шт.

1-1/8" 7 nut - hexagon, U.N.C., S.F. light series

1шт.

VT3008

SHAFT - depth adjusting

1шт.

VT3012

BRACKET - pivot, depth adjusting link

1шт.

1/2 x 1-1/2" bolt, hexagon head, N.C. with lockwasher

1шт.

5/8 x 1-1/4" screw, cap, socket head, N.C.

2шт.

5/8" washer, Shakeproof, E.T.

2шт.

VT3141

BRACKET - chain anchor

1шт.

3/8 x 1-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VTA1518

TURNBUCKLE EYE FOR FORD OR FERGUSON, implements (Machinery item)

1шт.

VTA2930

TURNBUCKLE ASSEMBLY WITH FITTINGS

1шт.

1/4" fitting, grease, straight drive (Lincoln no. 5029)

2шт.
