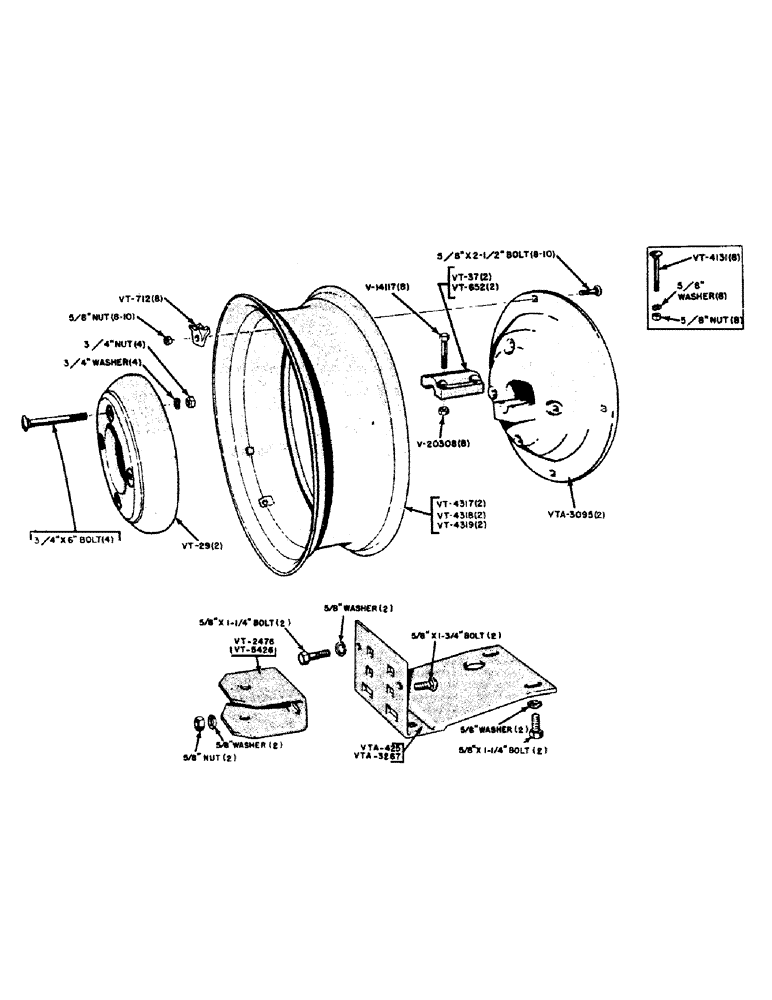

Запчасти Case IH VAI-SERIES (076) - REAR WHEELS AND RIMS (06) - POWER TRAIN

V14117

COVER

BELT - hub (Use with VT697 caps)

8шт.

V20308

NUT - hub bolt (Use with VT697 caps)

8шт.

VT29

WEIGHT - rear wheel (Use VTA109 set of two weights and bolts) (Machinery item)

1шт.

3/4 x 6" bolt, carriage, U.N.C. with hexagon nut and lockwasher

4шт.

VT37

CAP - rear wheel (For VT177 wheel) (See VT652 and VT697)

2шт.

VT177

WHEEL - rear (For 24" rim) (Use VT3095)

1шт.

VT177A

WHEEL - rear (For 24" rim) (Use VTA3095)

1шт.

VT652

CAP - rear wheel (Use VT697), (4) V14117 and (4) V20308)

1шт.

VT697

CAP - rear wheel (For VT177A wheel) (See VT37 and VT652)

2шт.

VT712

CLAMP - rim

8-1шт.

5/8 x 2-1/2" bolt, carriage, U.N.C. with hexagon nut

8-1шт.

VT2044

CLAMP - rim (Use VT712)

1шт.

VT4131

X

BOLT WITH NUT - rear wheel hub (Use with VT37 and VT652 caps)

8шт.

5/8" washer, lock

8шт.

VT4317

RIM - W-7-24, for 8-24 tires

2шт.

VT4318

RIM - W-8-24, for 9-24 tires

2шт.

VT4319

RIM - W-9-24, for 10-24 tires

2шт.

VTA3095

REAR WHEEL WITH CAP - for 24" rim

2шт.

VT2476

BRACKET - tow (Tractors before no. 6013525), stationary drawbar

1шт.

VT3541

STUD - drawbar (Use 5/8 x 1-1/4" bolt, hexagon head, U.N.C.), stationary drawbar

2шт.

5/8" nut, hexagon, U.N.F. with lockwasher, stationary drawbar

2шт.

VT5426

BRACKET - tow (Tractors after no. 6013524), stationary drawbar

1шт.

5/8 x 1-3/4" bolt, carriage, U.N.C. with hexagon nut and lockwasher, stationary drawbar

2шт.

VTA425

DRAWBAR - stationary (Tractors before no. 6013525)

1шт.

VTA3267

DRAWBAR - stationary (Tractors after no. 6013524)

1шт.

5/8 x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher, stationary drawbar

4шт.
