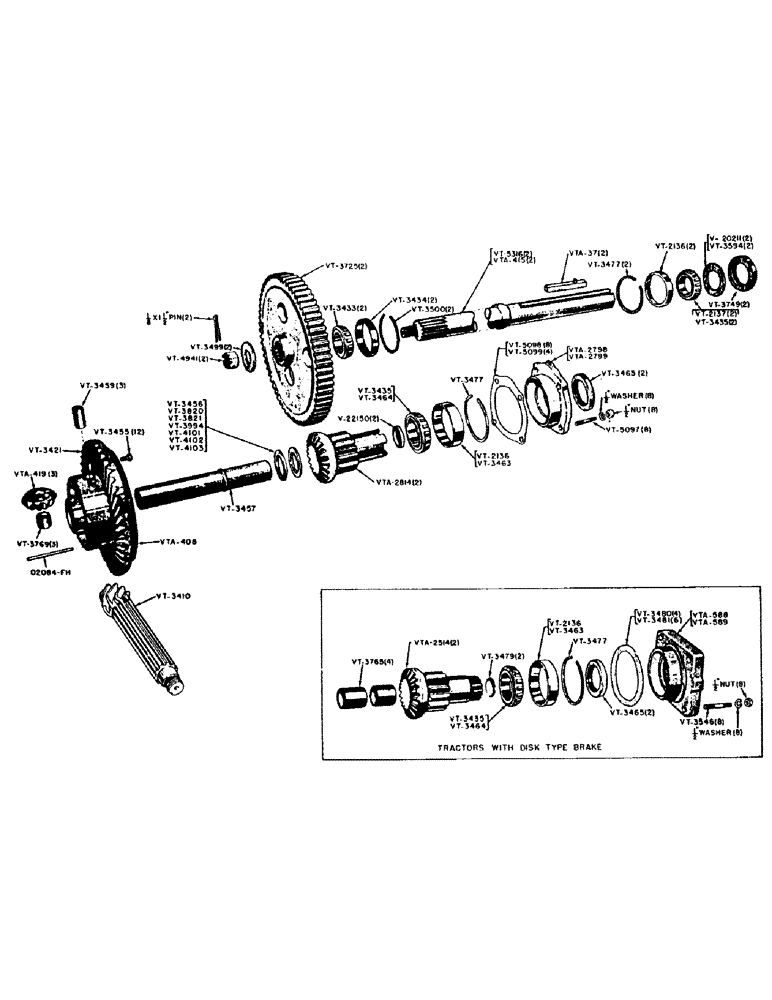

Запчасти Case IH VAI-SERIES (074) - DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

O2084FH

X

ROLLPIN - differential pinion shaft (3/16 x 1-7/8")

3шт.

V20211

TRANSMISSION

WASHER - between bearing cone and oil seal on rear axle (Use with VT5316)

2шт.

V22150

CAP

PLUG - expansion (Tractors after no. 5554999)

2шт.

VT169

CARRIER - bearing (Use VTA588 or VTA589)

1шт.

VT211

WHEEL - center (Use VTA408)

1шт.

VT555

CARRIER - bearing (Use VTA2798 or VTA2799)

1шт.

VT2136

X

CUP - bearing, right-hand differential and rear axle outer (Timken no. 382) (See VT3435)

3шт.

VT2137

CONE - bearing, axle outer (Timken no. 389A)

2шт.

VT3410

COUNTERSHAFT AND BEVEL DRIVE PINION

1шт.

VT3421

GEAR - ring, 43 teeth

1шт.

VT3433

CONE - bearing, axle inner (Timken no. 386)

2шт.

VT3434

X

CUP - bearing, axle inner (Timken no. 362)

2шт.

VT3435

X

CONE - bearing, right-hand differential and rear axle outer (Use with VT5316) (See VT2136) (Timken no. 387)

3шт.

VT3455

RIVET - ring gear

12шт.

VT3456

X

WASHER - thrust, centerwheel (.094)

1шт.

VT3457

SHAFT - differential (See VTA857)

1шт.

VT3458

X

PIN - differential, pinion shaft (Use O2084FH)

1шт.

VT3459

SHAFT - differential pinions

3шт.

VT3463

X

CUP - bearing, left-hand differential (Timken no. 28623)

1шт.

VT3464

X

CONE - bearing, left-hand differential (Timken no. 28682)

1шт.

VT3465

X

OIL SEAL - differential bearing carrier

2шт.

VT3477

X

SNAP RING - bearing carrier, right-hand side and rear axle outer

3шт.

VT3479

X

PLUG - welch, 1-3/4", side gear (Tractors before no. 5555000)

2шт.

VT3480

SHIM - differential bearing (.005) (Use with VT169 carriers)

4шт.

VT3481

SHIM - differential bearing (.010) (Use with VT169 carriers)

6шт.

VT3499

WASHER - take-up, on inner end of rear axle

2шт.

VT3500

RING

SNAP RING - axle inner

2шт.

VT3546

X

STUD - 1/2 x 2-1/2" (Tractors before no. 5555000) (See VT5097)

8шт.

VT3594

WASHER - between bearing cone and oil seal on rear axle

2шт.

VT3725

GEAR - final drive, 63 teeth

2шт.

VT3749

X

OIL SEAL - rear axle

2шт.

VT3765

BUSHING - side gear (Tractors before no. 5555000)

4шт.

VT3769

BUSHING - differential pinion

3шт.

VT3820

WASHER - thrust, centerwheel (.099)

1шт.

VT3821

WASHER - thrust, centerwheel (.104)

1шт.

VT3994

WASHER - thrust, centerwheel (.089)

1шт.

VT4101

WASHER - thrust, centerwheel (.109)

1шт.

VT4102

X

WASHER - thrust, centerwheel (.119)

1шт.

VT4103

WASHER

SHIM - centerwheel (.010)

1шт.

VT4342

SHAFT - differential (Use VT3457)

1шт.

VT4941

X

NUT - rear axle

2шт.

VT5097

STUD - 1/2 x 1-15/16" (Tractors before no. 5554999) (See VT3546)

8шт.

1/2" nut, hexagon, U.N.F.

8шт.

1/2" washer, Shakeproof, E.T.

8шт.

VT5098

SHIM - differential bearing (.005) (Tractors after no. 5554999)

8шт.

VT5099

SHIM - differential bearing (.010) (Tractors after no. 5554999)

4шт.

VT5316

SHAFT - rear axle (Forged type) (See VTA415)

2шт.

1/8 x 1-1/2" pin, cotter

2шт.

VTA37

KEY - rear axle shaft

2шт.

VTA408

RING GEAR ASSEMBLY (See VTA857)

1шт.

VTA415

X

SHAFT - rear axle (Use VT5316 and VT3435)

1шт.

VTA419

PINION - differential, includes bearing

3шт.

VTA587

X

DIFFERENTIAL RING GEAR WITH SHAFT (See VTA408)

1шт.

VTA588

CARRIER - bearing, right-hand (Tractors before no. 5555000)

1шт.

VTA589

CARRIER - bearing, left-hand (Tractors before no. 5555000)

1шт.

VTA2514

GEAR - side, with bushings, 16 teeth (Tractors before no. 55555000)

2шт.

VTA2798

CARRIER - bearing, right-hand (Tractors after no. 5554999)

1шт.

VTA2709

CARRIER - bearing, left-hand (Tractors after no. 5554999)

1шт.

VTA2814

GEAR - side, with plug, 16 teeth (Tractors after no. 5554999)

2шт.
