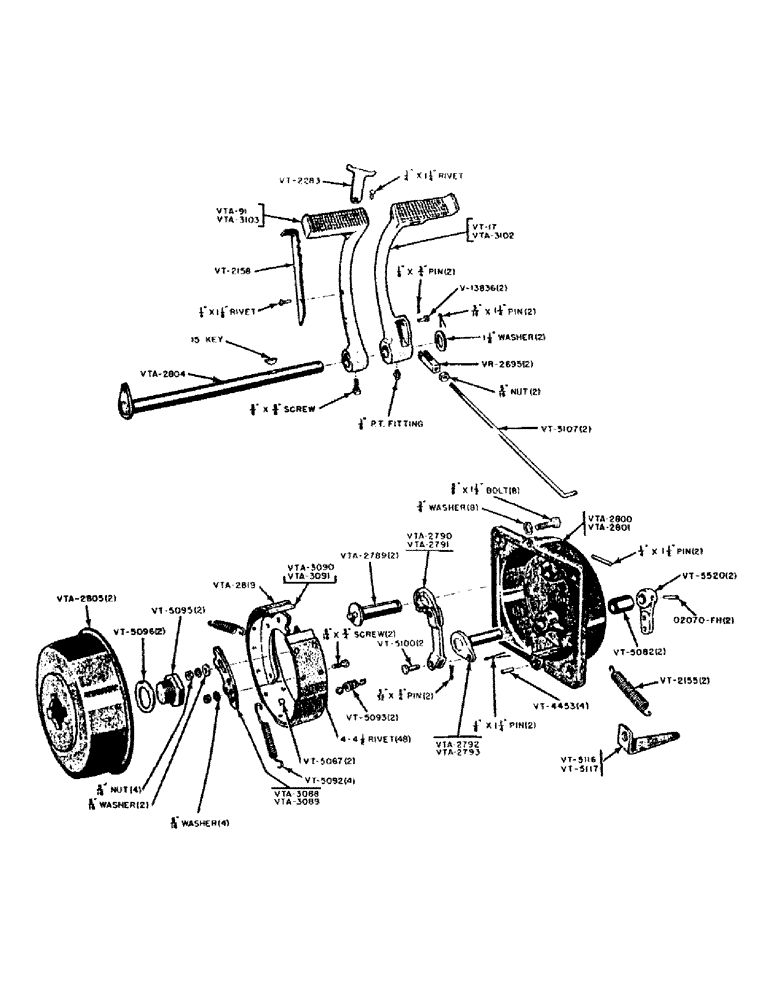

Запчасти Case IH VAI-SERIES (072) - BRAKE ASSEMBLIES, BAND TYPE, TRACTOR AFTER NO. 5554999 (06) - POWER TRAIN

O2070FH

X

ROLLPIN - for VTA2789 and VT5101 or VT5520

4шт.

V13836

PIN - clevis, 5/16" diameter x 15/16" long

2шт.

1/8" x 3/4" pin, cotter

2шт.

VR2695

X

YOKE END - adjusting

2шт.

VT16

PEDAL - brake, left-hand (Use VTA91)

1шт.

VT17

PEDAL - brake, right-hand (Tractors before no. 5558747) (See VTA3102)

1шт.

VT556

COVER - brake, right-hand (Use VTA2800)

1шт.

VT557

COVER - brake, left-hand (Use VTA2801)

1шт.

VT654

PEDAL - brake, right-hand (Use VTA3102)

1шт.

VT655

PEDAL - brake, left-hand (Use VTA3103)

1шт.

VT2155

X

SPRING - brake return

2шт.

VT2158

CATCH - brake return

1шт.

1/4" x 1-1/8" rivet, round head

1шт.

VT2283

INTERLOCK - brake pedal

1шт.

1/4" x 1-1/4" rivet, countersunk head

1шт.

VT4453

X

PIN - locating

4шт.

VT5067

RIVET - shoulder

2шт.

VT5082

BUSHING - brake cover

2шт.

VT5092

X

SPRING - brake

4шт.

VT5093

X

SPRING - brake retaining

2шт.

1/8" x 1-3/4" pin, cotter

2шт.

VT5095

NUT - brake drum

2шт.

VT5096

X

LOCK - nut

2шт.

VT5100

PIN - clevis

2шт.

3/32" x 3/4" pin, cotter

2шт.

VT5101

LEVER - outer (Tractors before no. 6002686) (Use VT5520)

1шт.

VT5107

X

ROD - brake

2шт.

5/16" nut, hexagon, U.N.F.

1шт.

VT5116

ANCHOR - spring, right-hand

1шт.

VT5117

ANCHOR - spring, left-hand

1шт.

VT5520

LEVER - brake (Tractors after no. 6002685)

2шт.

VTA91

PEDAL ASSEMBLY - brake, left-hand (Tractors before no. 5558747) (See VTA3103)

1шт.

VTA2789

PIN ASSEMBLY - spring anchor

2шт.

VTA2790

CAM AND LINK ASSEMBLY - right-hand

1шт.

VTA2791

CAM AND LINK ASSEMBLY - left-hand

1шт.

VTA2792

LEVER ASSEMBLY - internal, right-hand (Use VTA2796)

1шт.

VTA2793

LEVER ASSEMBLY - internal, left-hand (Use VTA2797)

1шт.

VTA2796

LEVER ASSEMBLY - internal, right-hand

1шт.

VTA2797

LEVER ASSEMBLY - internal, right-hand

1шт.

VTA2800

BRAKE COVER WITH BUSHING - right-hand

1шт.

VTA2801

BRAKE COVER WITH BUSHING - left-hand

1шт.

5/8" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

8шт.

VTA2804

SHAFT - clutch and brake

1шт.

No. 15 key, Woodruff

1шт.

3/16" x 1-1/4" pin, cotter

2шт.

1-1/8" washer, plain, S.A.E. standard

1шт.

VTA2805

X

DRUM ASSEMBLY - brake

2шт.

VTA2819

X

Set of four brake linings and rivets

1шт.

VTA3088

END PLATE - adjustable, right-hand

1шт.

VTA3089

X

END PLATE - adjustable, left-hand

1шт.

5/16" nut, hexagon, U.N.F.

4шт.

5/16" x 3/4" bolt, hexagon head, U.N.F.

2шт.

5/16" washer, lock

4шт.

5/16" washer, plain, S.A.E. standard

2шт.

VTA3090

X

SHOE WITH LINING AND ADJUSTABLE END PLATE - brake, right-hand

1шт.

VTA3091

X

SHOE WITH LINING AND ADJUSTABLE END PLATE - brake, left-hand

1шт.

VTA3102

PEDAL - brake, right-hand (Tractors after no. 5558746) (See VT17)

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

1шт.

VTA3103

PEDAL - brake, left-hand (Tractors after no. 5558746) (See VTA91)

1шт.

3/8" x 5/8" screw, set, square head, cup point, U.N.C.

1шт.
