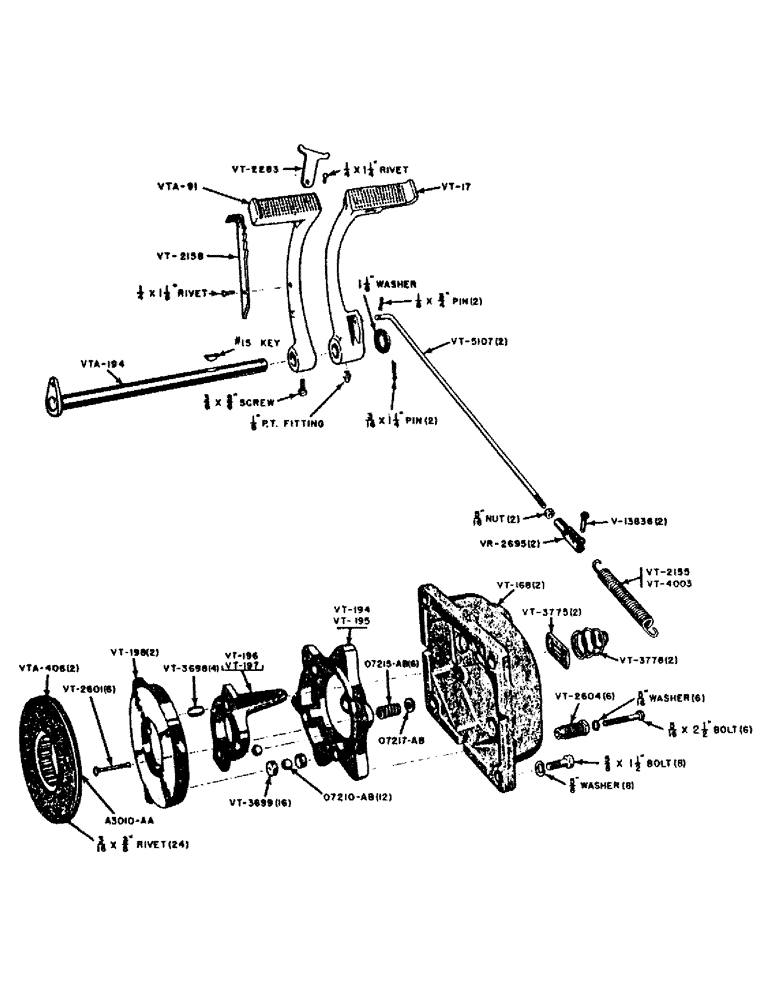

Запчасти Case IH VAI-SERIES (070) - BRAKE ASSEMBLIES, DISK TYPE, TRACTORS BEFORE NO. 5555000 (06) - POWER TRAIN

A3010AA

KIT

LINING - set of two with rivets

2шт.

3/16" x 3/8" rivet, tubular brass

24шт.

O7210AB

X

BALL - steel, 1/2" diameter

12шт.

O7215AB

SPRING

- retaining

6шт.

O7217AB

WASHER

- separating spring

6шт.

V13836

PIN - clevis, 5/16" diameter x 15/16" long

2шт.

VR2695

X

YOKE - end, adjusting

2шт.

VT16

PEDAL - brake, left-hand (Use VTA91)

1шт.

VT17

PEDAL - brake, right-hand

1шт.

3/8" x 5/8" screw, set, square head, cup point, U.N.C.

1шт.

VT168

COVER - brake

2шт.

5/8" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

8шт.

VT194

PLATE - power, right-hand (Auto Specialties no. BP-6306-R)

1шт.

VT195

PLATE - power, left-hand (Auto Specialties no. BP-6306-L)

1шт.

VT196

LEVER - actuating, right-hand (Auto Specialties no. BP-6316-R)

1шт.

VT197

LEVER - actuating, left-hand (Auto Specialties no. BP-6316-L)

1шт.

VT198

DISK - primary (Auto Specialties no. BP-6311)

2шт.

VT2155

X

SPRING - brake return (Tractors before no. 4828245) (See VT4003)

2шт.

VT2158

CATCH - brake

1шт.

1/4" x 1-1/8" rivet, round head

1шт.

VT2283

INTERLOCK - brake pedal

1шт.

1/4" x 1-1/4" rivet, countersunk head

1шт.

VT2601

PIN

- spring

6шт.

VT2604

X

SCREW - adjusting

6шт.

5/16" x 2-1/4" bolt, hexagon head, U.N.C. with lockwasher

6шт.

VT3698

PLUNGER

4шт.

VT3699

INSERT - ball type, 3/4"

16шт.

VT3701

X

SCREW - adjusting (Use VT2604)

1шт.

VT3775

COVER - hole, brake housing

2шт.

VT3776

SPRING

- brake cover

2шт.

VT4003

SPRING - brake return (Tractors after no. 4828244)

2шт.

VT5107

X

ROD - brake

2шт.

5/16" nut, hexagon, U.N.F.

2шт.

1/8" x 3/4" pin, cotter

2шт.

VTA91

PEDAL ASSEMBLY - brake, left-hand

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

1шт.

VTA194

SHAFT - clutch and brake

1шт.

No. 15 key, Woodruff

1шт.

3/16" x 1-1/4" pin, cotter

2шт.

1-1/8" washer, plain, S.A.E. standard

1шт.

VTA406

X

RING - middle, with brake linings

2шт.

VTA3102

PEDAL - brake, right-hand (Tractors after no. 5558746) (See VT17)

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

1шт.

VTA3103

PEDAL - brake, left-hand (Tractors after no. 5558746) (See VTA91)

1шт.

3/8" x 5/8" screw, set, square head, cup point, U.N.C.

1шт.
