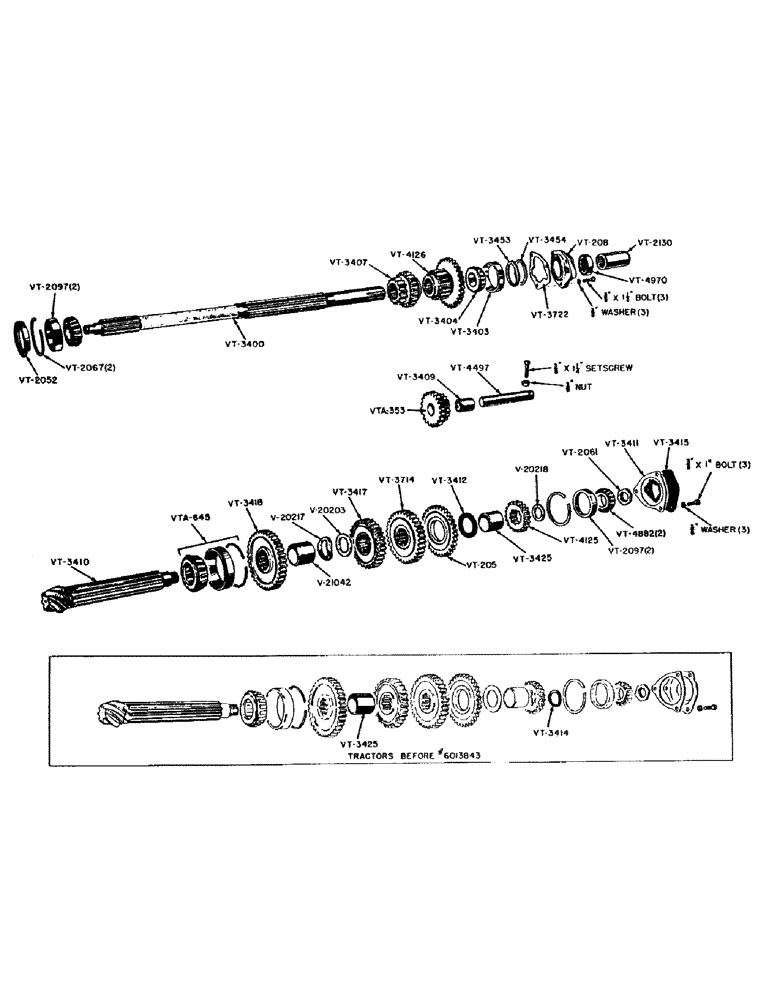

Запчасти Case IH VAI-SERIES (066) - TRANSMISSION SHAFT AND GEARS (06) - POWER TRAIN

V20203

PLATE

WASHER - thrust, gear spacer (Tractors after no. 6013842)

1шт.

V20217

X

WASHER - spring tension (Tractors after no. 6013842)

1шт.

V20218

X

WASHER - thrust (Tractors after no. 6013842)

1шт.

V21042

X

SPACER - 1st and 2nd gears (Tractors after no. 6013842)

1шт.

VT205

GEAR - oil slinger, 26 teeth

1шт.

VT208

CAP - mainshaft

1шт.

3/8" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VT2052

RETAINER - oil mainshaft bearing rear

1шт.

VT2061

X

NUT - adjusting, countershaft

1шт.

VT2067

X

SNAP RING - bearing retaining

2шт.

VT2097

X

CUP - bearing (Timken no. 14276)

2шт.

VT2130

SLEEVE - connector

1шт.

VT3400

SHAFT - main drive

1шт.

VT3403

X

CUP - bearing, main drive shaft (Timken no. 15244)

1шт.

VT3404

X

CONE - bearing, main drive shaft (Timken no. 15120)

1шт.

VT3407

GEAR - mainshaft, 1st speed and 14 teeth, 2nd speed 20 teeth

1шт.

VT3409

BUSHING - reverse idler (See VTA353)

1шт.

VT3410

COUNTERSHAFT AND DRIVE PINION

1шт.

VT3411

X

GASKET - countershaft, front bearing cap

1шт.

VT3412

WASHER - retaining, oil slinger

1шт.

VT3414

WASHER - spring (Use VTA1649)

1шт.

VT3415

CAP - countershaft, front bearing

1шт.

3/8" x 1" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VT3417

GEAR - countershaft, 2nd speed 29 teeth

1шт.

VT3418

GEAR - countershaft, 1st speed 35 teeth

1шт.

VT3420

GEAR - countershaft, 4th speed (Use VT4125 and VT4126)

1шт.

VT3425

SPACER - countershaft gear (1-21/32" long) (Tractors before no. 6013843)

2шт.

(Tractors after no. 6013842) (See V21042)

1шт.

VT3453

SHIM - mainshaft bearing cap (.005")

1шт.

VT3454

SHIM - mainshaft bearing cap (.010")

1шт.

VT3714

GEAR - countershaft, 3rd speed 26 teeth

1шт.

VT3722

X

GASKET - mainshaft bearing cap

1шт.

VT3724

GEAR - mainshaft, 3rd and 4th speed (Use VT4125 and VT4126)

1шт.

VT4125

GEAR - countershaft, 4th speed 18 teeth

1шт.

VT4126

GEAR - mainshaft, 3rd speed 23 teeth, 4th speed 38 teeth

1шт.

VT4497

SHAFT - reverse idler

1шт.

3/8" x 1-1/4" screw, set, square head, dog point, U.N.C. with hexagon nut

1шт.

VT4882

X

CONE - bearing (Timken no. 14116)

2шт.

VT4970

X

OIL SEAL - mainshaft

1шт.

VTA353

GEAR - reverse idler

1шт.

VTA645

X

BEARING - countershaft (Includes cup, cone and snap ring)

1шт.

VTA1649

SPRING WASHER AND SPACER KIT (Includes (1) V20203, (1) V20217, (1) V20218, and (1) V20142) (See Service Bulletin 29-54 dated 6-24-54)

1шт.
