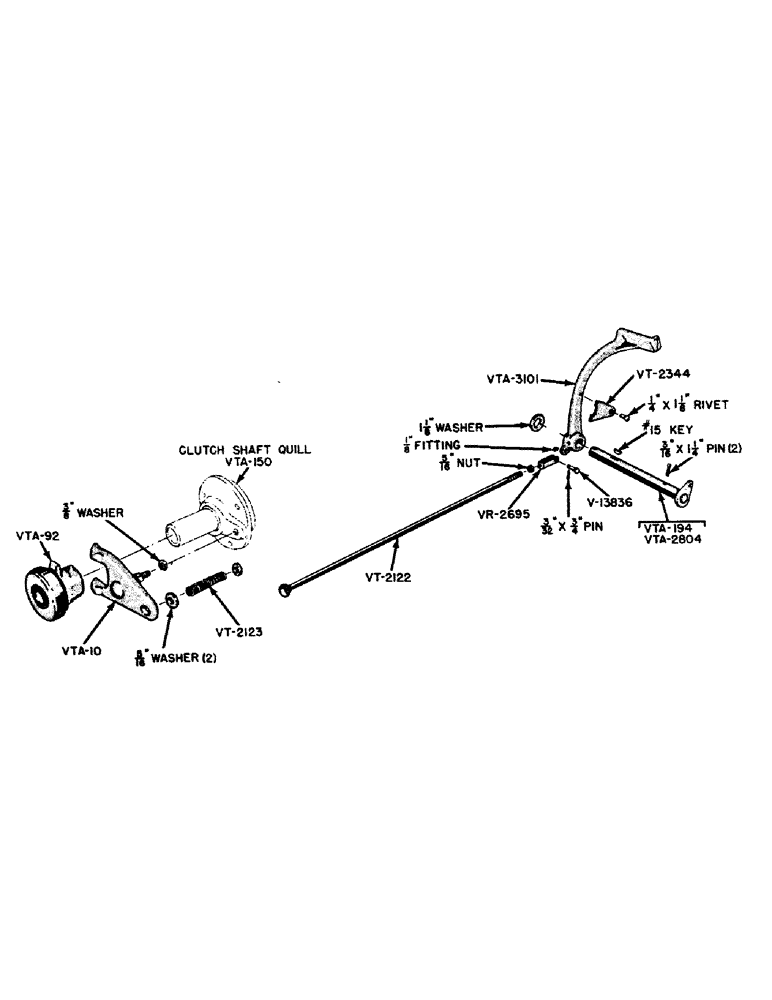

Запчасти Case IH VAI-SERIES (064) - CLUTCH ACTUATING PARTS (06) - POWER TRAIN

V13836

PIN - clevis

1шт.

3/32" x 3/4" pin, cotter

1шт.

VR2695

X

YOKE END

1шт.

VT15

PEDAL - clutch (Use VTA3101)

1шт.

VT34

X

CARRIER - bearing (Use VTA92)

1шт.

VT653

PEDAL - clutch (Use VTA3101)

1шт.

VT2119

X

BEARING - release (Use VTA92)

1шт.

VT2122

X

ROD - clutch throw-out

1шт.

5/16" nut, hexagon, U.N.F.

1шт.

5/16" washer, plain, S.A.E. standard

2шт.

VT2123

X

SPRING - clutch pedal rod

1шт.

VT2344

LATCH - clutch pedal

1шт.

1/4" x 1-1/8" rivet, round head

1шт.

VTA10

X

YOKE - throw-out

1шт.

3/8" washer, lock

1шт.

VTA92

X

RELEASE BEARING ASSEMBLY

1шт.

VTA194

SHAFT - clutch and brake (Tractors before no. 5555000) (See VTA2804)

1шт.

No. 15 Woodruff key

1шт.

3/16" x 1-1/2" pin, cotter

1шт.

1-1/8" washer, plain, S.A.E. standard

1шт.

VTA2666

PEDAL - clutch (Use VTA3101)

1шт.

VTA2804

SHAFT - brake assembly (Tractors after no. 5554999) (See VTA194)

1шт.

No. 15 Woodruff key

1шт.

3/16" x 1-1/4" pin, cotter

1шт.

1-1/8" washer, plain, S.A.E. standard

1шт.

VTA3101

PEDAL - clutch

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

1шт.
