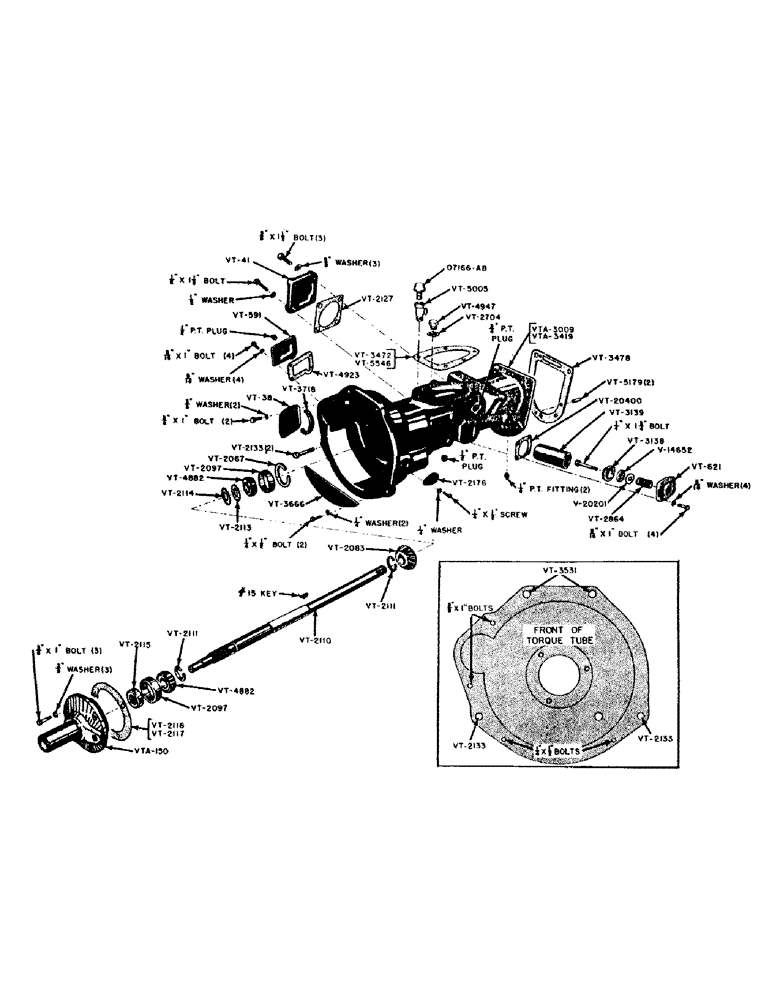

Запчасти Case IH VAI-SERIES (062) - TORQUE TUBE AND CLUTCH SHAFT (06) - POWER TRAIN

O7166AB

X

BREATHER (Tractors after no. 6002842)

1шт.

V14652

WASHER - felt (Tractors after no. 5458563)

1шт.

V20201

DECAL

WASHER - felt retaining (Tractors after no. 5458563)

1шт.

V20400

X

GASKET - oil filter cap (Tractors after no. 5458563)

1шт.

VT7

QUILL - clutch bearing carrier (Use VTA150)

1шт.

VT38

TAPE

COVER - starting motor

1шт.

3/8" x 1" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT41

COVER - belt pulley mounting

1шт.

5/8" x 1-1/2" bolt, hexagon head, U.N.C.

3шт.

1/2" x 1-1/2" bolt, hexagon head, U.N.C.

1шт.

5/8" washer, Shakeproof, E.T.

3шт.

1/2" washer, Shakeproof, I.T.

1шт.

VT164A

TORQUE TUBE (Use VTA3009 and VTA3117)

1шт.

VT521

TORQUE TUBE (Use VTA3009 and VTA3117)

1шт.

VT523

X

COVER - control valve opening (Use VT591)

1шт.

VT591

COVER - control valve opening (Tractors after no. 5370499)

1шт.

5/16" x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.

1/2" P.T. plug-pipe, countersunk head

1шт.

VT620

TORQUE TUBE (Tractors after no. 5458563 to no. 6014292 and tractors after no. 6014314) (Use VTA3009)

1шт.

VT621

CAP - oil filler retaining (Tractors after no. 5458563)

1шт.

1/4" x 1-3/4" bolt, hexagon head, U.N.C.

1шт.

5/16" x 1" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT720

TORQUE TUBE (Tractors no. 6014292 thru no. 6014314) (Use VTA3419)

1шт.

VT2067

X

SNAP RING - clutch shaft bearing

1шт.

VT2083

GEAR - drive, 17 teeth, belt pulley

1шт.

VT2097

X

CUP - bearing, clutch shaft (Timken no. 14276) (See VTA150)

2шт.

VT2110

SHAFT - clutch

1шт.

No. 15 Woodruff key

1шт.

VT2111

X

SNAP RING - clutch shaft

2шт.

VT2113

SHIM - drive gear (.005)

1шт.

VT2114

SHIM - drive gear (.010)

2шт.

VT2115

X

OIL SEAL - clutch shaft (See VTA150)

1шт.

VT2116

SHIM - clutch quill (.003)

1шт.

VT2117

X

SHIM - clutch quill (.005)

1шт.

VT2127

X

GASKET - belt pulley opening

1шт.

VT2133

BOLT - ground bolt, 5/8" x 3", U.N.F.

2шт.

5/8" nut, hexagon, U.N.F. and lockwasher

2шт.

VT2176

X

COVER - timing hole

1шт.

1/4" x 1/2" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VT2205

STUD - belt pulley mounting (Use 1/2" x 1-1/2" bolt, hexagon head, U.N.C.)

1шт.

1/2" nut, hexagon, U.N.F.

1шт.

1/2" washer, Shakeproof, E.T.

1шт.

VT2704

GASKET - intake line port plug (Tractors without hydraulics)

1шт.

VT2864

SPRING

- oil filter tension (Tractors after no. 5458563)

1шт.

VT3138

X

CAP - filter (Tractors after no. 5458563)

1шт.

VT3139

X

ELEMENT - filter (Tractors after no. 5458563)

1шт.

VT3472

X

GASKET - steering gear housing (Tractors before no. 6014293 and after no. 6014314)

1шт.

VT3478

X

GASKET - torque, Serial Range: tube-transmission

1шт.

VT3666

COVER - flywheel

1шт.

1/4" x 1/2" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT3713

X

STUD - belt pulley mounting (Use 5/8" x 1-1/2" bolt, hexagon head, U.N.C.)

1шт.

5/8" nut, hexagon, U.N.F.

3шт.

5/8" washer, Shakeproof, E.T.

3шт.

VT3718

SEAL - starting motor mounting cover

1шт.

VT4306

PLUG - button, 3/4" diameter (Tractors before no. 5159895)

2шт.

VT4307

PLUG - button, 1" diameter (Tractors before no. 5159895)

1шт.

VT4882

X

CONE - bearing (Timken no. 14116)

2шт.

VT4923

X

GASKET - control cover opening (Tractors after no. 5159894)

1шт.

VT4947

PLUG - intake line (Tractors without hydraulics)

1шт.

VT5005

X

ADAPTER TEE - filter (Tractors after no. 6002842)

1шт.

VT5179

X

PIN - dowel (Torque tube to transmission case) (Tractors after no. 5458210)

2шт.

VT5546

GASKET - steering gear housing (Tractors no. 6002843 to no. 6014292 and tractors after no. 6014314)

1шт.

VTA150

QUILL ASSEMBLY - bearing assembly

1шт.

3/8" x 1" bolt, hexagon head, U.N.C. with lockwasher

3шт.

VTA3009

TORQUE TUBE ASSEMBLY - stripped (Includes snap rings, bearing cups) (Tractors before no. 6014292 and after no. 6014314)

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

2шт.

1/2" P.T. plug, pipe, square head, standard

1шт.

3/4" P.T. plug, pipe, square head, standard

1шт.

VTA3117

X

OIL FILTERING UNIT - for hydraulic system

1шт.

VTA3419

TORQUE TUBE ASSEMBLY - stripped (Includes snap rings and bearing cups) (Tractors no. 6014292 thru no. 6014314)

1шт.
