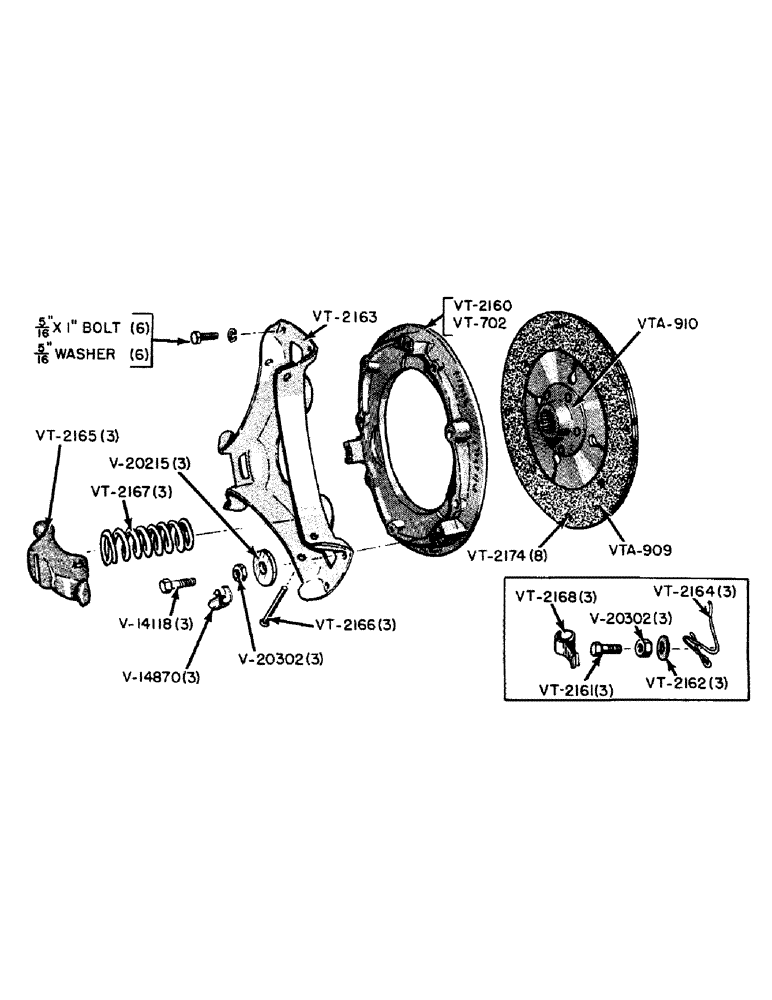

Запчасти Case IH VAI-SERIES (061) - CLUTCH PRESSURE PLATE AND LININGS (06) - POWER TRAIN

V14118

SPRING

SCREW - adjusting (Use with VT702)

3шт.

V14870

CLIP - clutch return (Use with VT702)

3шт.

V20215

ADJUSTMENT ROD

WASHER - adjusting screw (Use with VT702)

3шт.

V20302

NUT - hexagon jam, adjusting nut

3шт.

VT702

PLATE - pressure (See VT2160)

1шт.

VT2160

X

PLATE - pressure (See VT702)

1шт.

VT2161

SCREW - adjusting (Use with VT2160)

3шт.

VT2162

X

WASHER - adjusting screw (Use with VT2160)

3шт.

VT2163

BRACKET

1шт.

VT2164

SPRING - return (Use with VT2160)

3шт.

VT2165

LEVER - clutch

3шт.

VT2166

PIN - lever pivot

3шт.

VT2167

SPRING - lever

3шт.

VT2168

CUSHION - spring (Use with VT2160)

3шт.

VT2174

RIVET - clutch housing (See VTA909)

8шт.

VTA11

PLATE - pressure assembly (Use VTA4706)

1шт.

VTA12

PLATE - friction assembly (Use VTA910)

1шт.

VTA909

KIT - clutch linings (Includes linings and 10 rivets)

1шт.

VTA910

PLATE - friction assembly

1шт.

VTA4706

X

PLATE - pressure assembly

1шт.

5/16" x 1" bolt, hexagon head, U.N.C. with lockwasher

6шт.
