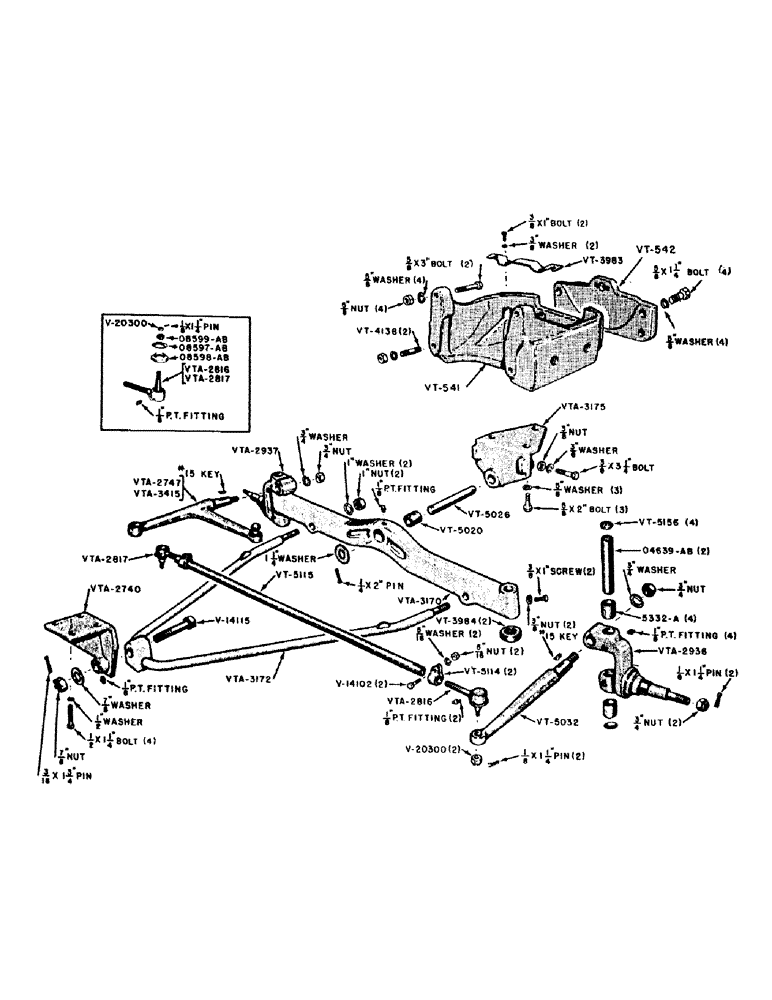

Запчасти Case IH VAI-SERIES (054) - FRONT SUPPORT AND AXLE ASSEMBLY, TRACTORS AFTER NO. 5658074 (06) - POWER TRAIN

5332-A

BUSHING - steering spindle

4шт.

O4639AB

X

PIN - king

2шт.

O8597AB

X

DUST COVER (For VTA2816 and VTA2817)

1шт.

O8598AB

X

WASHER FOR DUST COVER (For VTA2816 and VTA2817)

1шт.

O8599AB

X

SEAL - dust cover rubber (For VTA2816 and VTA2817)

1шт.

V14102

SEAL KIT

BOLT - tie rod clamp

2шт.

5/16" nut, hexagon, U.N.F. with lockwasher

2шт.

V14115

BOLT - rear pivot

1шт.

3/16" x 1-3/4" cotter pin

1шт.

7/8" nut, hexagon, U.N.C., S.F. regular slotted

1шт.

7/8" washer, plain, S.A.E. standard

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end, hexagon, slotted

2шт.

VT541

SUPPORT - front axle

1шт.

5/8" x 3" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

2шт.

VT542

PLATE - support cover

1шт.

5/8" x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT659

BRACKET - front pivot (Use VTA3175)

1шт.

VT3983

BRACKET - radiator support

1шт.

3/8" x 1" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT3984

X

BEARING - spindle thrust

2шт.

VT4138

X

STUD - support to engine block (5/8" x 2-7/8")

2шт.

5/8" nut hexagon, U.N.F. with lockwasher

2шт.

VT5020

BUSHING - front axle pivot

1шт.

VT5026

PIN - front axle pivot (See VTA3175)

1шт.

VT5032

ARM - spindle, right-hand

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. with lockwasher

1шт.

VT5114

CLAMP

- tie rod end

2шт.

VT5115

TIE ROD (36" long)

1шт.

VT5156

PLUG - steering spindle

4шт.

VTA2740

BRACKET - rear pivot

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

1/2" x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VTA2747

ARM - steering spindle, left-hand (Tractors before no. 6014292 and after no. 6014314)

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. with lockwasher

1шт.

VTA2816

END - tie rod, right-hand

1шт.

VTA2817

END - tie rod, left-hand

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

VTA2936

SPINDLE - steering, right-hand with bushings

1шт.

VTA2937

SPINDLE - steering, left-hand with bushings

1шт.

1/8" P.T. fitting, 45 degree elbow (Lincoln no. 5200)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

3/4" nut, hexagon, U.N.F. light thick slotted

1шт.

VTA3170

FRONT AXLE WITH BUSHING

1шт.

1/8" P.T. fitting, 67-1/2 degree elbow (Lincoln no. 5300)

1шт.

3/8" x 1" set screw, square head, cup point, U.N.C.

2шт.

3/8" nut, hexagon, U.N.C., S.F. jam light series

2шт.

VTA3172

RADIUS ROD AND PIVOT BLOCK

1шт.

1" nut, hexagon, U.N.C.

2шт.

1" washer, Shakeproof, I.T. (No. 1236)

2шт.

VTA3175

BRACKET AND PIN - front pivot

1шт.

1/4" x 2" cotter pin

1шт.

3/8" x 3-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

5/8" x 2" bolt, hexagon head, U.N.C. with lockwasher

3шт.

1-1/4" washer, plain, S.A.E. standard

1шт.

VTA3415

ARM - steering spindle, left-hand (Tractors no. 6014292 thru no. 6014314 only)

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. with lockwasher

1шт.
