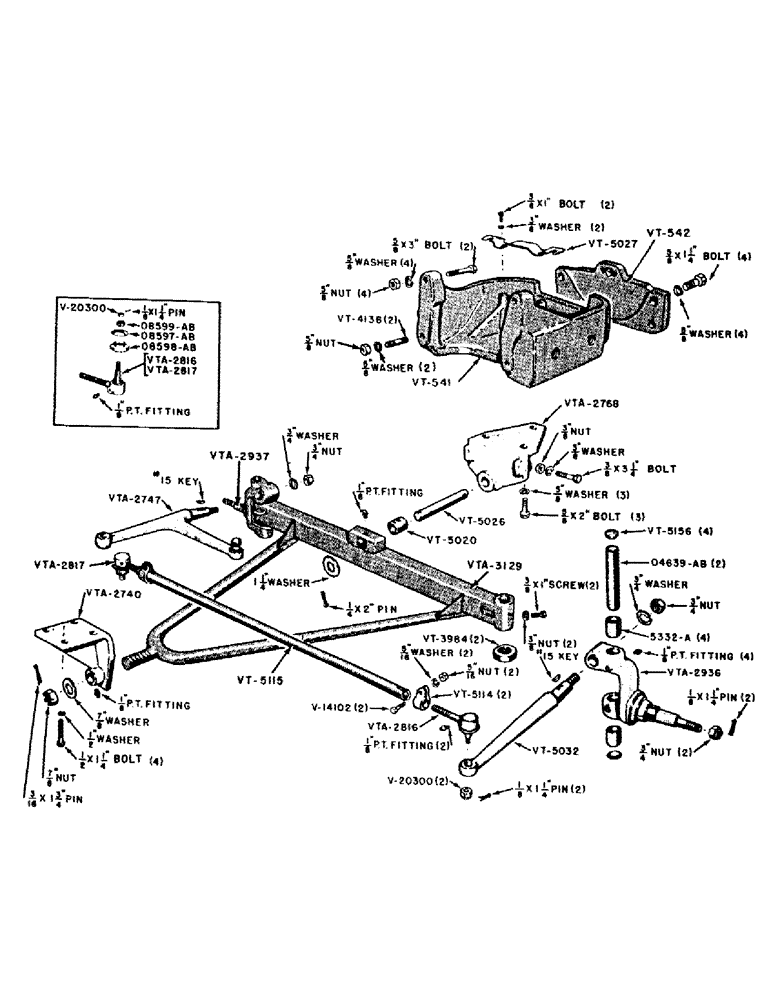

Запчасти Case IH VAI-SERIES (052) - FRONT SUPPORT AND AXLE ASSEMBLY, TRACTORS NO. 5265953 TO NO. 5658074 (06) - POWER TRAIN

5332-A

BUSHING - steering spindle

4шт.

O4639AB

X

PIN - king, front axle

2шт.

O8597AB

X

WASHER - dust cover, tie rod end, lower

2шт.

O8598AB

X

WASHER - dust cover, tie rod end, upper

2шт.

O8599AB

X

RING - rubber, tie rod

2шт.

V14102

SEAL KIT

BOLT, - tie rod clamp

2шт.

5/16" nut, hexagon, U.N.F. with lockwasher

2шт.

V20300

OPERATOR MANUAL

NUT - hexagon slotted, tie rod end

2шт.

VT541

SUPPORT - front axle

1шт.

5/8" x 3" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

2шт.

VT542

PLATE - cover, front support

1шт.

5/8" x 1-1/4" bolt, hexagon head, U.N.C. with lockwasher

4шт.

VT3984

X

BEARING - spindle thrust

2шт.

VT4138

X

STUD - support to engine (5/8" x 2-7/8")

2шт.

5/8" nut, hexagon, U.N.F. with lockwasher

2шт.

VT5020

BUSHING - front axle pivot

1шт.

VT5026

PIN - pivot

1шт.

1-1/4" washer, plain, S.A.E. standard

1шт.

1/4" x 2" cotter pin

1шт.

VT5027

BRACKET - radiator support

1шт.

3/8" x 1" bolt, hexagon head

2шт.

VT5032

ARM - spindle, right-hand

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. with lockwasher

1шт.

VT5114

CLAMP

- tie rod

2шт.

VT5115

TIE ROD (36" long)

1шт.

VT5156

PLUG - steering spindle)

4шт.

VTA2737

AXLE AND RADIUS ROD ASSEMBLY (Use VTA3129)

1шт.

VTA2740

BRACKET - rear pivot

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

1/2" x 1-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

4шт.

VTA2747

ARM - steering spindle, left-hand

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. with lockwasher

1шт.

VTA2768

BRACKET AND PIN - front pivot

1шт.

3/8" x 3-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

5/8" x 2-1/2" bolt, hexagon head, U.N.C. with lockwasher

3шт.

1-1/4" plain washer, S.A.E. standard

1шт.

1/4" x 2" cotter pin

1шт.

VTA2816

END - tie rod, right-hand

1шт.

VTA2817

END - tie rod, left-hand

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

2шт.

1/8" x 1-1/4" cotter pin

2шт.

VTA2936

SPINDLE - steering, right-hand with bushing

1шт.

VTA2937

SPINDLE - steering, left-hand with bushing

1шт.

1/8" P.T. fitting, 45 degree (Lincoln no. 5200)

4шт.

3/4" nut, hexagon, U.N.F. light thick slotted

2шт.

1/8" x 1-1/4" cotter pin

2шт.

VTA3129

AXLE AND RADIUS ROD ASSEMBLY

1шт.

1/8" P.T. fitting, drive 67-1/2 degree (Lincoln no. 3318)

1шт.

3/8" x 1" setscrew, square head, cup point, U.N.C. with hexagon nut

2шт.

7/8" nut, hexagon, slotted, U.N.C.

1шт.

3/16" x 1-3/4" cotter pin

1шт.

7/8" washer, plain S.A.E. standard

1шт.
