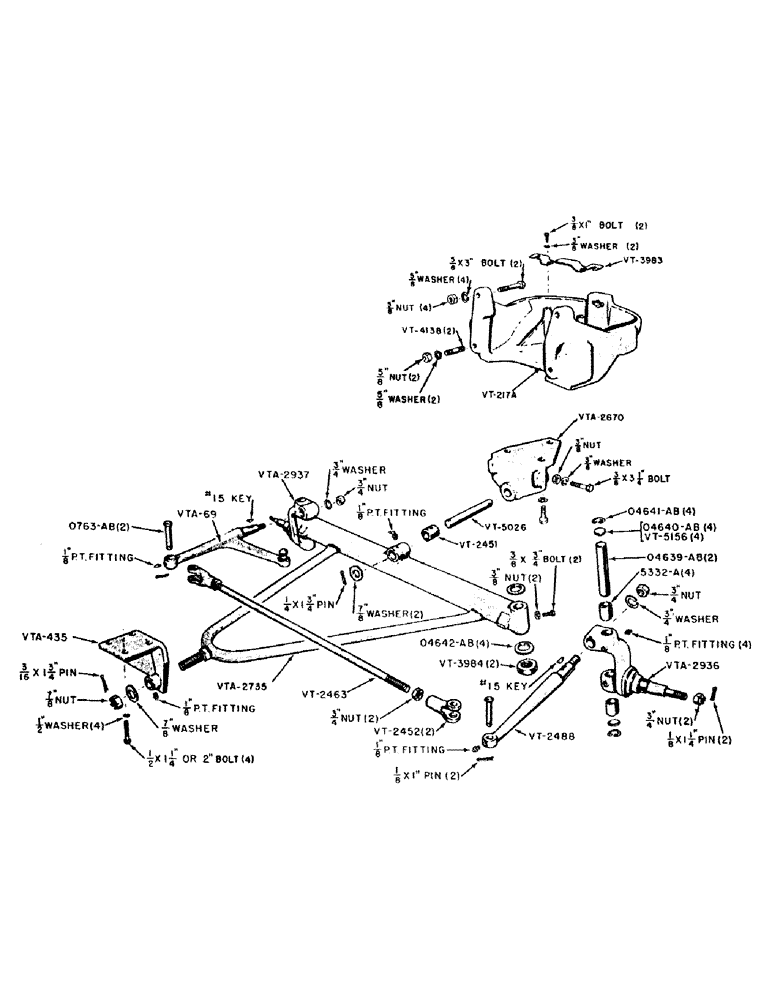

Запчасти Case IH VAI-SERIES (050) - FRONT SUPPORT AND AXLE ASSEMBLY, TRACTORS BEFORE NO. 5265953 (06) - POWER TRAIN

5332-A

BUSHING - steering spindle

4шт.

O763AB

PIN - tie rod yoke end

2шт.

1/8" x 1" cotter pin

2шт.

O4639AB

X

PIN - king, front axle

2шт.

O4640AB

DISK - steering spindle (Used with VTA74 and VTA75)

4шт.

O4641AB

SNAP RING - steering spindle (Used with VTA74 and VTA75)

4шт.

O4642AB

X

WASHER - thrust, steering spindle (Tractors before no. 4831659)

4шт.

VT217A

SUPPORT - front axle

1шт.

5/8" x 3-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

5/8" x 3" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VT2451

BUSHING - front axle pivot

1шт.

VT2452

YOKE END - tie rod

2шт.

VT2463

TIE ROD

1шт.

3/4" hexagon nut, U.N.F.

2шт.

VT2488

ARM - right hand spindle

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. with lockwasher

1шт.

VT3716

STUD (Use VT4138)

1шт.

VT3983

BRACKET - radiator support

1шт.

3/8" x 1" bolt, hexagon head, U.N.C. with lockwasher

2шт.

VT3984

X

BEARING - spindle thrust (Tractors after no. 4831658)

2шт.

VT4138

X

STUD - front support (5/8" x 2-7/8")

2шт.

5/8" nut, hexagon, U.N.F. with lockwasher

2шт.

VT5026

PIN - axle pivot

1шт.

7/8" washer, plain, S.A.E. standard

1шт.

1/4" x 1-3/4" cotter pin

1шт.

VT5156

PLUG - steering spindle (Used with VTA2936 and VTA2937)

4шт.

VTA60

BRACKET - front pivot (Use VTA2670)

1шт.

VTA69

ARM - left-hand spindle

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

No. 15 Woodruff key

1шт.

3/4" nut, hexagon, U.N.F. and lockwasher

1шт.

VTA74

X

SPINDLE - right-hand (Use (1) VTA2936, (1) V13801 and (2) VT5156)

1шт.

VTA75

X

SPINDLE - left-hand (Use (1) VTA2937, (1) V13801 and (2) VT5156)

1шт.

VTA384

X

AXLE AND RADIS ROD (Tractors before no. 4831658) use (1) VTA2735 and (2) VT3984

1шт.

VTA435

PIVOT ASSEMBLY - radius rod

1шт.

1/2" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

4шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

VTA629

AXLE AND RADIUS ROD (Tractors after no. 4831658) (Use VTA2735)

1шт.

VTA2670

BRACKET - front pivot, assembly

1шт.

5/8" x 2-1/2" bolt, hexagon head, U.N.C. with lockwasher

3шт.

3/8" x 3-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

1шт.

VTA2735

AXLE AND RADIUS ROD (Tractors before no. 5265953)

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

1шт.

3/8" x 3/4" bolt, hexagon head, U.N.C. with hexagon nut

2шт.

7/8" nut, hexagon, U.N.C. slotted

1шт.

3/16" x 1-3/4" cotter pin

1шт.

7/8" washer, plain, S.A.E. standard

1шт.

VTA2936

SPINDLE - right-hand with bushings

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

2шт.

3/4" nut, hexagon, U.N.F. light thick slotted

1шт.

1/8" x 1-1/4" cotter pin

1шт.

VTA2937

SPINDLE - left-hand with bushings

1шт.

1/8" P.T. fitting, straight (Lincoln no. 5000)

2шт.

3/4" nut hexagon, U.N.F. light thick slotted

1шт.

1/8" x 1-1/4" cotter pin

1шт.
