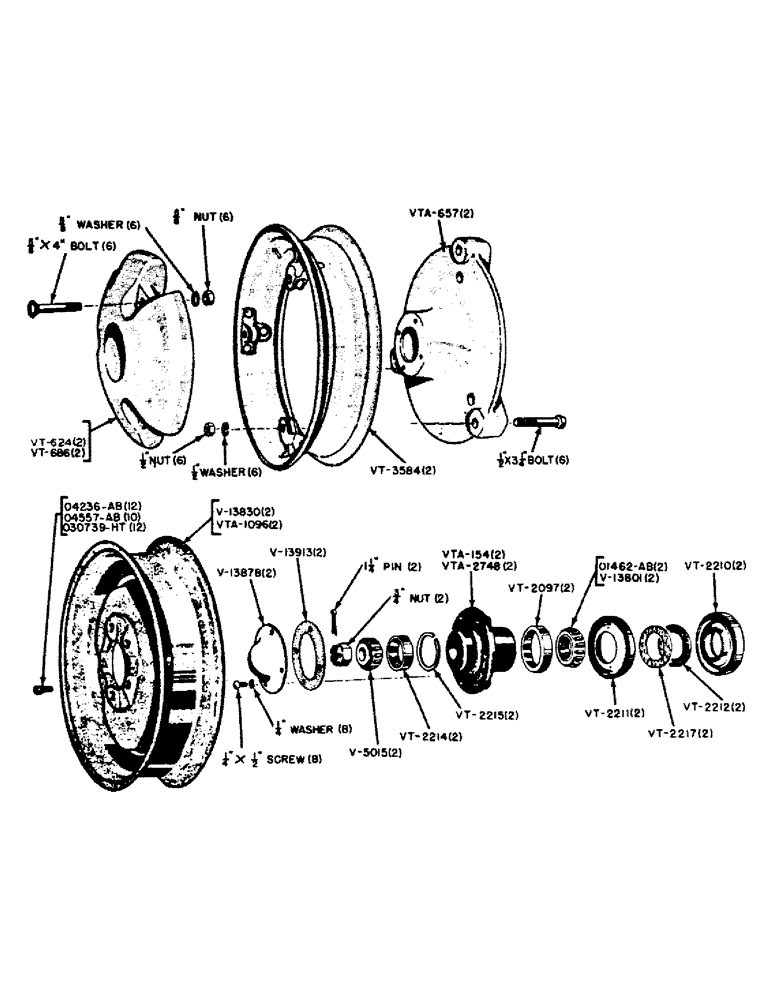

Запчасти Case IH VAI-SERIES (049) - FRONT WHEEL AND HUB ASSEMBLIES (06) - POWER TRAIN

O1462AB

X

CONE - inner bearing (Timken no. 14125A) (Use VTA74, VTA75)

2шт.

O4236AB

X

BOLT - hub (Use O30739HT)

1шт.

O4557AB

BOLT - hub (Use with VTA2748 hub)

10шт.

O4780AB

BOLT - hook, wheel weight (For V13830 wheels)

4шт.

3/8" nut, hexagon, U.N.C. with lockwasher

4шт.

O30739HT

X

BOLT - hub (Used with V13830 and VTA154)

12шт.

V13801

X

CONE - bearing (Timken no. 14138A) (Use with VTA2936 and VTA2937)

2шт.

V13830

WHEEL - disk, 4.50-16 (For 6.00 x 16 tires) (For VT52 hub)

2шт.

V13878

CAP - hub

2шт.

1/4" x 1/2" screw, machine, U.N.C. round head (Recessed) with lockwasher

8шт.

V13913

X

GASKET - hub cap

2шт.

VT22

WEIGHT - wheel, front (For VT174 wheel)

2шт.

VT52

X

HUB - front wheel (Use VTA154)

1шт.

VT174

WHEEL - front (Use VTA657)

1шт.

VT175

WEIGHT - front wheel (Use VT686)

2шт.

5/8" x 4" bolt, carriage, U.N.C. with hexagon nut and lockwasher

6шт.

VT546

HUB - front wheel, (Use VTA2748)

1шт.

VT624

WEIGHT - front wheel (Machinery item) (For V13830)

2шт.

VT686

WEIGHT - front wheel (Machinery item) (For VT174 wheel)

2шт.

5/8" x 4" bolt, carriage, U.N.C. with hexagon nut and lockwasher

6шт.

VT2097

X

CUP - inner bearing (Timken no. 14276)

2шт.

VT2210

X

SHIELD - dust, steering spindle

2шт.

VT2211

X

RETAINER - felt seal

2шт.

VT2212

X

WASHER - felt seal

2шт.

VT2214

X

CUP - outer bearing (Timken no. O9195)

2шт.

VT2215

X

SNAP RING, hub

2шт.

VT2217

X

WASHER - cork seal

2шт.

VT3584

RIM - with lugs (For 5.00 x 15 tires) (Use with VTA657)

2шт.

1/2" x 3-1/4" bolt, hexagon head, U.N.C. with hexagon nut and lockwasher

6шт.

VT5015

X

CONE - outer bearing (Timken no. O9067)

2шт.

VT5036

X

WHEEL - disk, 4.00-16 (For 6.00-16 tires) (Use VTA1096)

1шт.

VTA154

HUB

- with bearing cups and snap ring (For V13830 wheel)

2шт.

VTA657

WHEEL - cast, with bearing cups and snap ring

2шт.

1/8" x 1-1/4" cotter pin

2шт.

3/4" nut, hexagon, U.N.F., S.F. light thick slotted

2шт.

VTA1096

X

WHEEL - disk, 4.50-16 (For 6.00-16 tires) (For VT546 hub)

2шт.

VTA2748

HUB - with bearing cups and snap ring (Use O4557AB bolts)

2шт.
