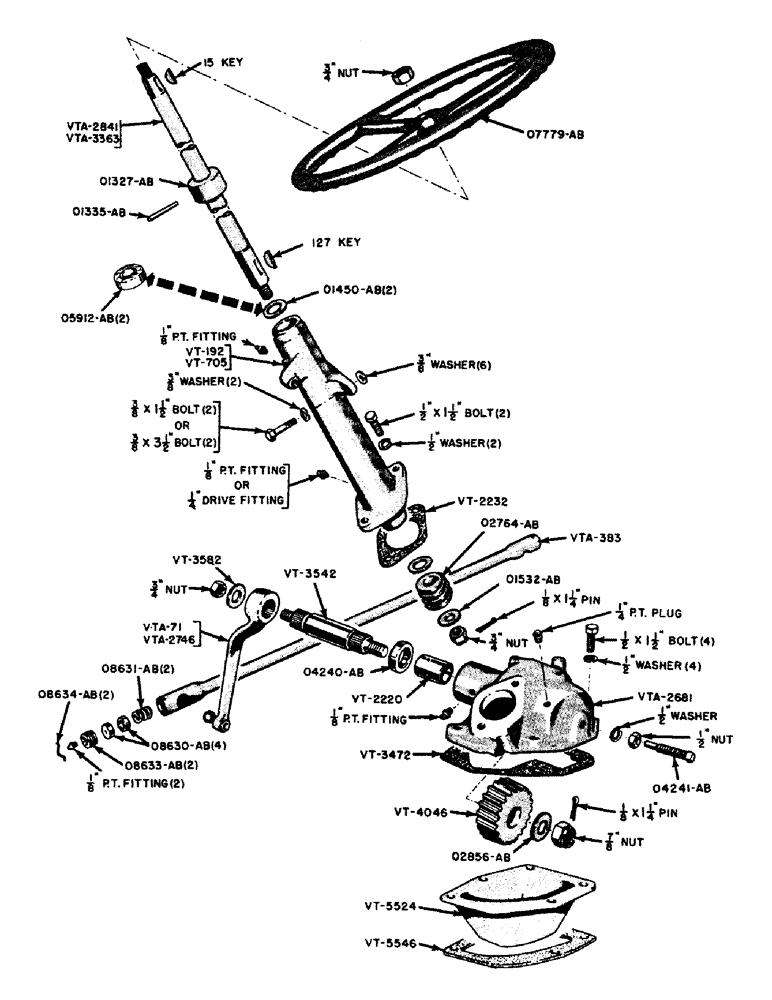

Запчасти Case IH VAI-SERIES (056) - STEERING GEAR AND DRAG LINK, TRACTORS BEFORE NO. 6014292 AND AFTER NO.6014314 (05) - STEERING

O1327AB

COLLAR - steering shaft (Tractors before no. 5359394)

1шт.

O1335AB

PIN - steering shaft collar (Tractors before no. 5359394)

1шт.

O1450AB

WASHER - steering shaft (Before tractor no. 6002844) (See O5912AB)

2шт.

O1532AB

WASHER - steering worm gear

1шт.

O2764AB

GEAR - worm

1шт.

O2856AB

WASHER - steering gear shaft (Gear end)

1шт.

O4240AB

X

OIL SEAL

1шт.

O4241AB

SCREW - adjusting, with 1/2" nut, hexagon, U.N.C. and lockwasher

1шт.

O5912AB

BEARING - thrust (Timken no. T-107) (After tractor no. 6002843)

2шт.

O7779AB

X

WHEEL - steering, 17-3/4" diameter

1шт.

O8630AB

X

BEARING - tie rod

4шт.

O8631AB

X

SPRING - tie rod bearing

2шт.

O8633AB

X

SCREW - tie rod adjusting

2шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

2шт.

O8634AB

X

WIRE - screw lock

2шт.

VT179

HOUSING - steering gear (Use VTA2681)

1шт.

VT192

COLUMN - steering shaft (Tractors before no. 6002844)

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

2шт.

3/8" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher (Column to panel)

2шт.

1/2" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher, (Column, Serial Range: -housing)

2шт.

3/8" washer, plain, S.A.E. standard (Used as spacers)

6шт.

VT522

HOUSING - steering gear (Use VTA2681)

1шт.

VT705

HOUSING - steering gear (After tractor no. 6002843)

1шт.

VT2220

X

BUSHING - steering housing

1шт.

VT2231

SHAFT - steering (Without collar) (Use VTA2841)

1шт.

VT2232

X

GASKET -, Serial Range: column-housing

1шт.

VT3472

X

GASKET - steering housing

1шт.

VT3542

SHAFT - steering arm

1шт.

3/4" nut, hexagon, U.N.F.

1шт.

7/8" nut, hexagon, U.N.F. regular slotted

1шт.

1/8" x 1-1/4" cotter pin

1шт.

VT3582

WASHER - steering arm shaft (Arm end)

1шт.

VT4046

WHEEL - worm

1шт.

VT4148

X

GASKET - steering gear housing (Use VT3472)

1шт.

VT5524

PAN - oil (Torque tube to steering gear housing) (After tractor no. 6002843)

1шт.

VT5546

GASKET - steering housing oil pan (Lower) (After tractor no. 6002843)

1шт.

VTA71

ARM - steering (Tractors before no. 565800) (See VTA2746)

1шт.

VTA383

DRAG LINK ASSEMBLY (36-1/2" link)

1шт.

VTA2681

HOUSING - with bushing (Tractors after no. 5370499)

1шт.

1/8" P.T. fitting, grease (Lincoln no. 5000)

1шт.

1/2" x 1-1/2" bolt, hexagon head, U.N.C. with lockwasher

4шт.

1/4" P.T. plug

1шт.

VTA2746

ARM - steering (Tractors after no. 5657999) (See VTA71)

1шт.

VTA2841

SHAFT ASSEMBLY - steering (39-5/16" long)

1шт.

1/8" x 1-1/4" cotter pin

1шт.

No. 15 key, Woodruff (Steering, Serial Range: wheel-shaft)

1шт.

No. 127 key, Woodruff (Worm wheel, Serial Range: -shaft)

1шт.

3/4" nut, hexagon, U.N.F.

1шт.

3/4" nut, hexagon, castellated, U.N.F.

1шт.

VTA3363

STEERING SHAFT AND COLLAR ASSEMBLY (Tractors after no. 5370499)

1шт.
