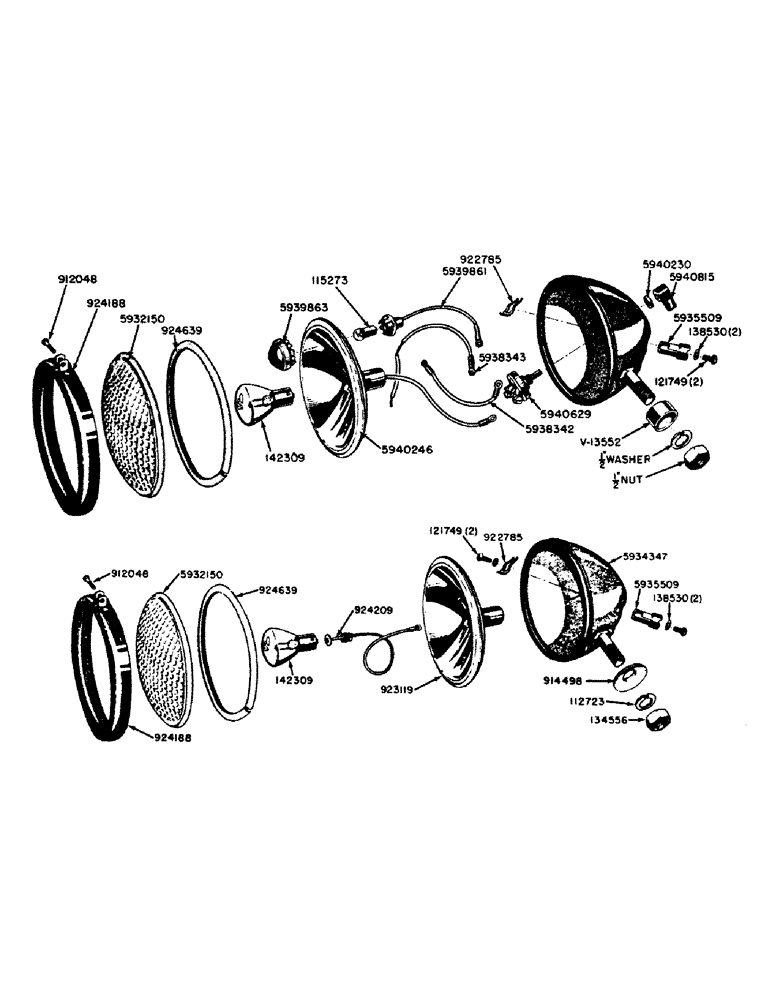

Запчасти Case IH VAI-SERIES (042) - VTA3029 FLOOD AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

115273

BULB - light, small no. 51, 1 C.P. single contact, 6-8 volt

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal Int Tooth, #8

2шт.

B50206

LAMP

BULB - light, large no. 1133L, 32 C.P. single contact, 6-8 volt

1шт.

912048

SCREW - door

1шт.

922785

SUPPORT

SPRING - terminal

1шт.

924188

MOLDING ASSEMBLY

1шт.

924639

GASKET ASSEMBLY

1шт.

5932150

LENS - tail lamp

1шт.

5935509

PLATE - terminal

1шт.

5938342

WIRE ASSEMBLY, Serial Range: (Terminal-switch)

1шт.

5938343

WIRE ASSEMBLY (Large bulb-switch)

1шт.

5939861

SOCKET AND WIRE ASSEMBLY

1шт.

5939863

JEWEL ASSEMBLY

1шт.

5940230

SWITCH RETANING NUT

1шт.

5940246

REFLECTOR ASSEMBLY

1шт.

5940629

SWITCH ASSEMBLY

1шт.

5940815

SWITCH KNOB ASSEMBLY

1шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, , Nut, VT3665 tail lamp 5/16"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal nut, VT3665 tail lamp

2шт.

134556

NUT - retaining, VT3665 tail lamp

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Terminal screw, VT3665 tail lamp Int Tooth, #8

2шт.

B50206

LAMP

BULB - light, large no. 1133L, C.P. single contact, 6-8 volt, VT3665 tail lamp

1шт.

912048

SCREW - door, VT3665 tail lamp

1шт.

922785

SUPPORT

SPRING - terminal, VT3665 tail lamp

1шт.

923119

REFLECTOR ASSEMBLY, VT3665 tail lamp

1шт.

924188

MOLDING ASSEMBLY, VT3665 tail lamp

1шт.

924209

WIRING ASSEMBLY, VT3665 tail lamp

1шт.

924639

GASKET - lens, VT3665 tail lamp

1шт.

5930006

SCREW - ground (Early lamps), VT3665 tail lamp

1шт.

5932150

LENS - clear, spot, VT3665 tail lamp

1шт.

5934347

BODY ASSEMBLY - complete, VT3665 tail lamp

1шт.

5935509

PLATE - terminal, VT3665 tail lamp

1шт.
