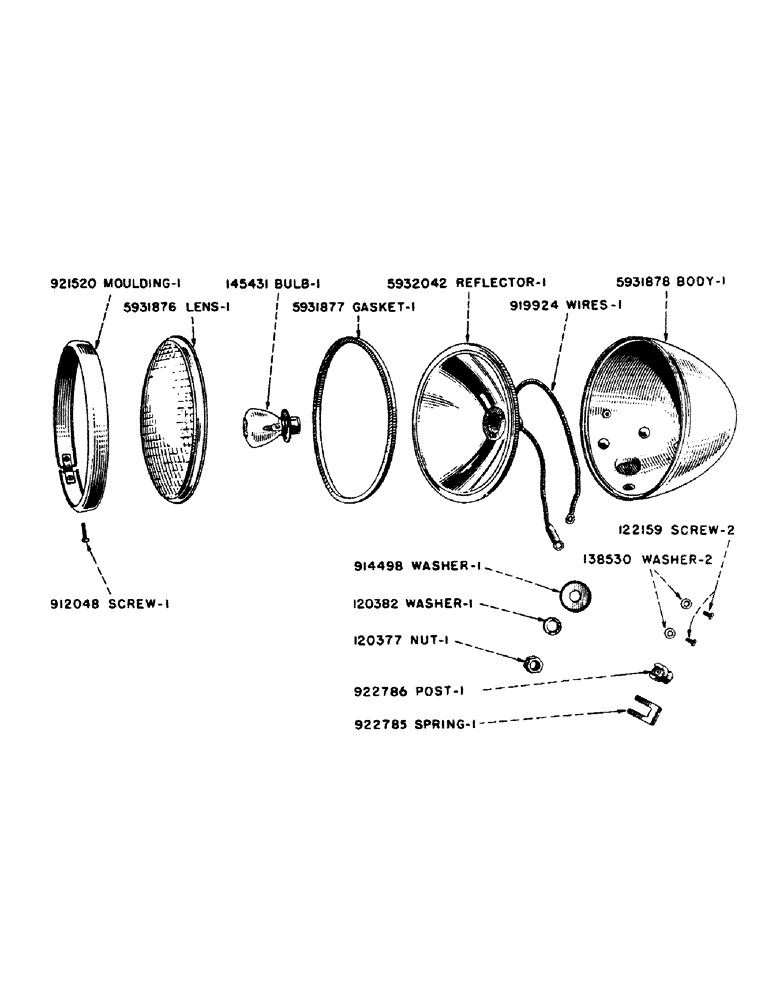

Запчасти Case IH VAI-SERIES (040) - O6330AB HEAD LAMP (04) - ELECTRICAL SYSTEMS

120377

NUT,3/8" - 16, Gr 5

Mounting bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Mounting bolt 3/8"

1шт.

122159

HOUSING

SCREW - terminal

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof for terminal screw Int Tooth, #8

2шт.

145431

BULB - 32 C.P. single contact, 6-8 volts

1шт.

912048

SCREW - moulding

1шт.

914498

WASHER - bearing, mounting plate

1шт.

919924

WIRING ASSEMBLY (Use 5940399)

1шт.

921520

MOULDING ASSEMBLY

1шт.

922785

SUPPORT

SPRING - terminal post

1шт.

922786

POST - terminal (Use 5935509)

1шт.

924409

GASKET - reflector seal

1шт.

5931876

LENS

1шт.

5931877

GASKET - reflector seal (Use 924409)

1шт.

5931878

BODY ASSEMBLY

1шт.

5932042

REFLECTOR - with gasket

1шт.

5935509

TERMINAL PACKAGE (Consists of: (2) 122159, (2) 138530, (1) 922785 and (1) 922786)

1шт.

5940399

WIRING ASSEMBLY

1шт.
