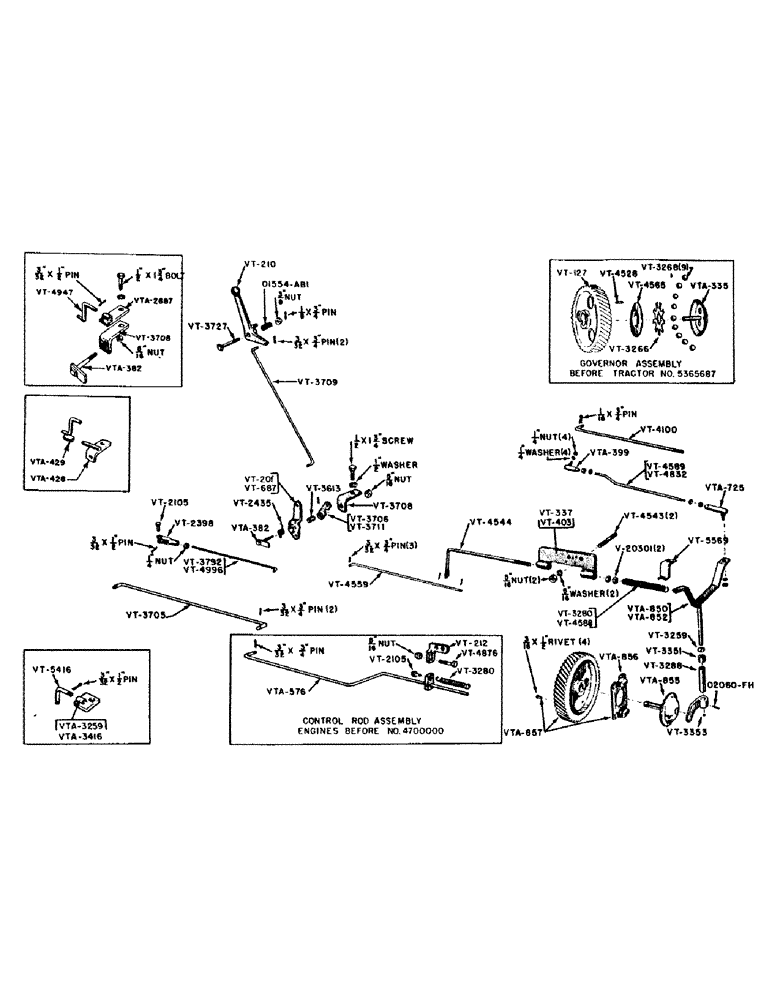

Запчасти Case IH VAI-SERIES (026) - GOVERNOR AND THROTTLE LINKAGE (03) - FUEL SYSTEM

O1554AB1

X

SPRING - tension belt

1шт.

O2060FH

X

ROLLPIN (1/8" x 3/4") (Use with VTA850)

1шт.

V20301

LOCK WASHER

NUT - governor rod

2шт.

VT127

X

GEAR - camshaft timing (Tractors before no. 5365687) (See VTA857)

1шт.

VT201

LEVER - speed control (See VT687)

1шт.

VT210

LEVER - hand speed control

1шт.

VT212

GUIDE - control rod (Engines before no. A4700000)

1шт.

VT337

GUIDE - control rod (Engines after no. A4700000 and tractors before no. 536587)

1шт.

VT339

GUIDE - control rod (Tractors after no. 5365686) (Use VT403)

1шт.

VT403

GUIDE - control rod (Tractors after no. 5365686)

1шт.

5/16" x 1" bolt, hex. head, U.N.C. with lockwasher

2шт.

VT687

LEVER - speed control (See VT201) (Offset for double control)

1шт.

VT2105

X

PIN - clevis (Tractors after no. 5370000)

1шт.

VT2398

X

YOKE - adjustable (Tractors after no. 5370000)

1шт.

VT2435

X

SPRING - foot feed

1шт.

VT3259

X

SEAL - dust, felt, governor shaft

1шт.

VT3266

DRIVER - ball, governor (Tractors before no. 5365687)

1шт.

VT3268

BALL - 3/4" (Tractors before no. 5365687)

9шт.

VT3280

X

SPRING - governor (Tractors before no. 5365687)

1шт.

VT3288

X

SPACER - thrust, rocker arm

1шт.

VT3351

X

BEARING - rocker shaft (Torrington no. B-610)

1шт.

VT3353

X

BALL - 3/16"

1шт.

VT3613

BUSHING - speed control lever

1шт.

VT3705

LINK - foot feet (Tractors before no. 5370000)

1шт.

3/32" x 3/4" pin, cotter

2шт.

VT3706

LEVER - hand control (Tractors before no. 5370000)

1шт.

VT3708

BRACKET - speed control lever (Tractors before no. 5370000)

1шт.

1/2" x 3/4" bolt, hex. head, U.N.C. with lockwasher

1шт.

VT3709

ROD - hand control

1шт.

3/32" x 3/4" pin, cotter

2шт.

VT3711

LEVER - hand control (Tractors after no. 5370000)

1шт.

VT3727

BOLT - tension control handle

1шт.

3/8" nut, hexagon, U.N.C.

1шт.

1/16" x 3/4" pin, cotter

1шт.

VT3792

LINK - foot feed (Engines before no. A4700000)

1шт.

VT4100

ROD - throttle (Gasoline engines before no. A4700000)

1шт.

1/4" nut, hexagon, U.N.F.

1шт.

1/8" x 3/4" pin, cotter

1шт.

VT4528

PIN - 1/8" dia. x 1/4" tractors before no. 5365687

1шт.

VT4543

X

STUD - governor rod guide, 5/16 x 1-1/2"

2шт.

5/16" NUT, hexagon, U.N.F. with lockwasher

2шт.

VT4544

ROD - governor control (Engines after no. A4700000)

1шт.

VT4559

ROD - governor control (Engines after no. A4700000)

1шт.

3/32" x 3/4" pin, cotter

3шт.

VT4565

RACE - inner governor (Tractors before no. 5365687)

1шт.

VT4588

X

SPRING - governor (Tractors after no. 5365686)

1шт.

VT4589

ROD - throttle (Tractors after no. 5365686)

1шт.

1/4" nut, hexagon, U.N.F.

2шт.

1/4" washer, Shakeproof, IT

2шт.

VT4832

ROD - throttle (All low cost fuel manifold engines before tractor no. 5365687; gasoline engines after no. A4700000 to tractor no. 5365687)

1шт.

1/4" nut, hexagon, U.N.F.

1шт.

1/16" x 3/4" pin, cotter

1шт.

VT4876

SCREW - adjusting, governor stop (Engines before no. A4700000)

1шт.

5/16" nut, hexagon, jam, U.N.F.

1шт.

VT4947

LEVER - speed blocking (Engines after no. A4700000 and before tractor no. 5658475)

1шт.

3/32" x 1/2" pin, cotter

1шт.

VT4996

LINK - foot feed (Tractors after no. 5370000)

1шт.

1/4" nut, hexagon, U.N.F.

1шт.

3/32" x 3/4" pin, cotter

1шт.

VT5416

LEVER - speed control lockout (Tractors after no. 5658474)

1шт.

3/32" x 1/2" pin, cotter

1шт.

VT5569

DAMPER - governor spring

1шт.

VTA335

GOVERNOR SHAFT AND OUTER RACE (Tractors before no. 5365687)

1шт.

VTA382

BOLT - spring

1шт.

5/16" nut, hexagon, U.N.C.

1шт.

VTA399

X

BALL AND SOCKET ASSEMBLY (Tractors after no. 5365686)

1шт.

VTA428

BRACKET - speed control lever (Engines before no. A4700000) (Use VT4947, VT3708 and VTA2687)

1шт.

VTA429

LEVER - speed blocking (Engines before no. A4700000) (Use VT4947, VT3708 and VTA2687)

1шт.

VTA576

ROD - control (Engines before no. A4700000)

1шт.

3/32" x 3/4" pin, cotter

1шт.

VTA725

BALL JOINT

BALL AND SOCKET ASSEMBLY

1шт.

1/4" nut, hexagon, U.N.F. with lockwasher

1шт.

VTA850

X

LEVER AND ARM ASSEMBLY (Engines after no. A4700000)

1шт.

VTA852

LEVER AND ARM ASSEMBLY (Engines before no. A4700000)

1шт.

VTA855

X

GOVERNOR SHAFT ASSEMBLY (Tractors after no. 5365686)

1шт.

VTA856

GOVERNOR WEIGHT ASSEMBLY (Tractos after no. 5365686)

1шт.

3/16" x 1/2" rivet, round head

4шт.

VTA857

X

GOVERNOR WEIGHT AND DRIVE GEAR (Tractors after no. 5365686)

1шт.

VTA2687

BRACKET ASSEMBLY - speed control lever (Engines after no. A4700000 and before tractor no. 5658475)

1шт.

1/2" x 1-3/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VTA3259

BRACKET ASSEMBLY - speed control lever (Tractors after no. 5658474 to no. 6014292; tractors after no. 6014314)

1шт.

1/2" x 1-3/4" bolt, hexagon head, U.N.C. with lockwasher

1шт.

VTA3416

BRACKET ASSEMBLY - speed control lever (Tractors no. 6014292 through no. 6014314 only)

1шт.
