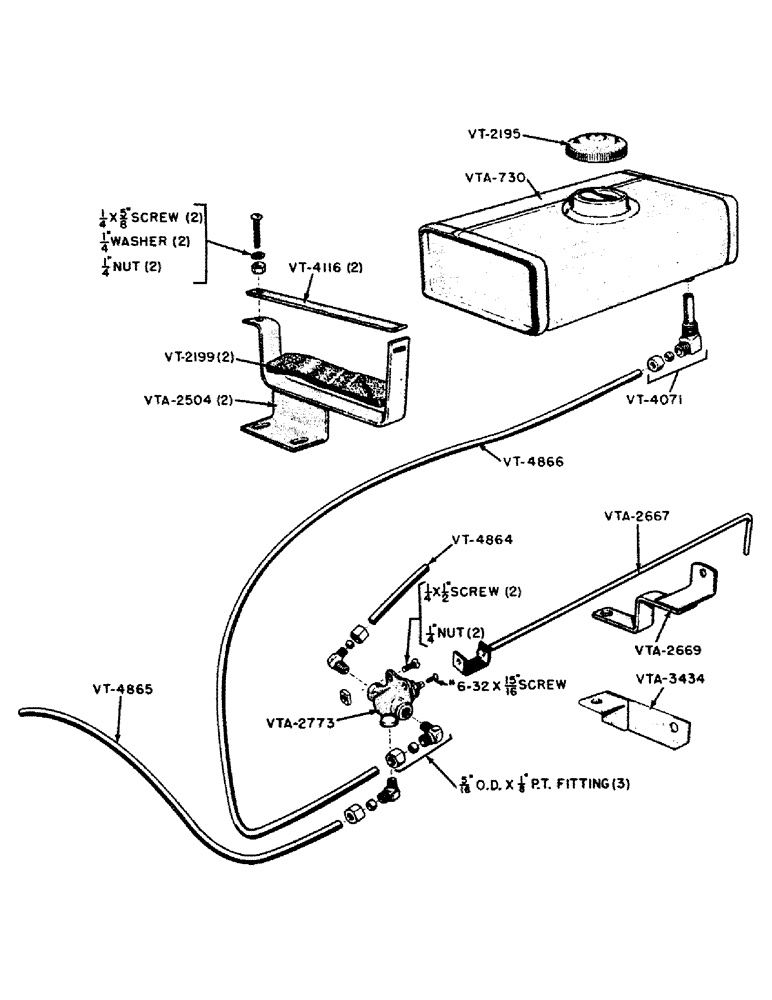

Запчасти Case IH VAI-SERIES (025) - AUXILIARY FUEL TANK AND LINES (03) - FUEL SYSTEM

VT2195

X

CAP - priming tank

1шт.

VT2199

FELT - fuel tank

2шт.

VT4071

STRAINER - fuel tank

1шт.

VT4116

CLAMP - priming tank

2шт.

1/4" x 5/8" screw, machine, round head, U.N.C. with square nut and lockwasher

2шт.

VT4864

LINE - fuel, three way valve to main tank

1шт.

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-FL)

1шт.

VT4865

LINE - fuel, three way, Serial Range: valve-carburetor

1шт.

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-FL)

1шт.

VT4866

LINE - fuel, three way valve to priming tank

1шт.

5/16" O.D. x 1/8" P.T. elbow - compression, with sleeve and nut (Imperial #69-FL)

1шт.

VTA730

TANK - priming, with cap

1шт.

VT2504

BRACKET - priming tank

2шт.

VTA2667

CONTROL - valve

1шт.

VTA2669

BRACKET - control valve (Tractors before no. 6014292 and tractors after no. 6014314) (See VTA3434)

1шт.

VTA2773

VALVE - three way, compete

1шт.

1/4" x 1/2" screw, machine, round head, U.N.C. with square nut

2шт.

No. 6 - 32 x 15/16" screw, cap hexagon head (Steel)

1шт.

VTA3434

BRACKET - control valve (Tractors no. 6014292 thru no. 6014314 only) (See VTA2669)

1шт.
