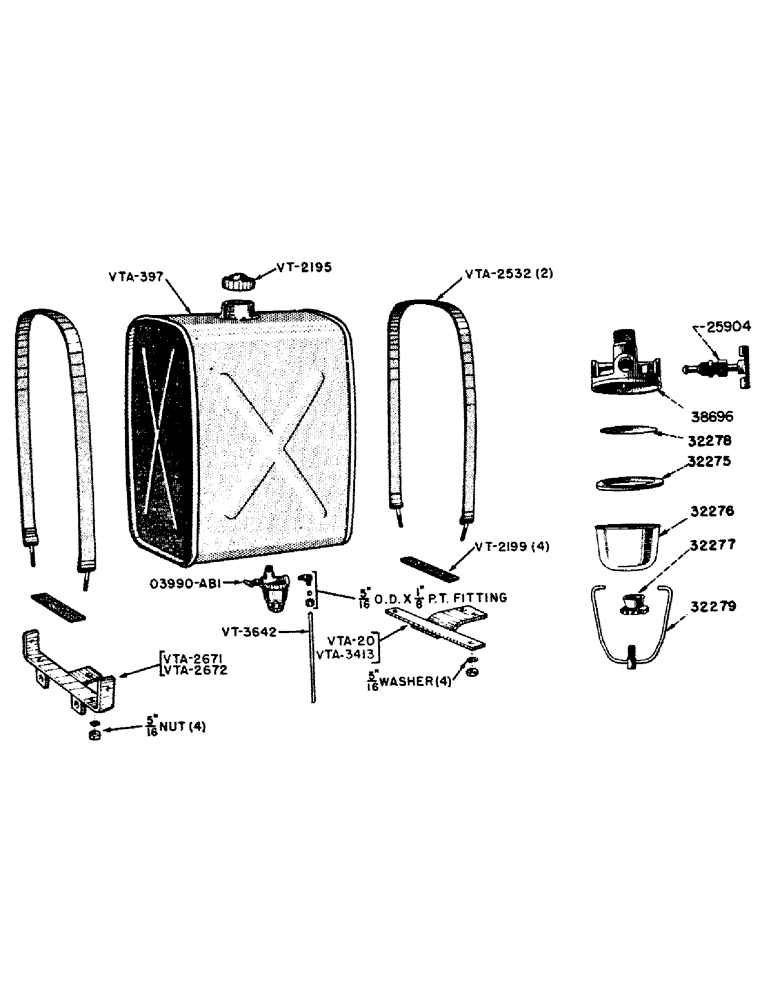

Запчасти Case IH VAI-SERIES (024) - MAIN FUEL TANK (03) - FUEL SYSTEM

O3990AB1

X

STRAINER - fuel complete

1шт.

VT2195

X

CAP - fuel tank

1шт.

VT2199

FELT - fuel tank

4шт.

VT3642

LINE - fuel

1шт.

5/16" O.D. x 1/8" P.T. elbow - compression with sleeve and nut (Imperial #69-FL)

1шт.

VTA20

BRACKET - support, rear (Tractors before no. 6014292 and after no. 6014314) (See VTA3413)

1шт.

VTA22

STRAP - fuel tank, front (Use VTA2532)

1шт.

VTA185

STRAP - fuel tank, rear (Use VTA2532)

1шт.

VTA375

BRACKET - front (Use VTA2671)

1шт.

VTA397

TANK - fuel

1шт.

VTA2532

STRAP - fuel tank, front and rear

2шт.

5/16" nut, hexagon, U.N.C. with lockwasher

4шт.

VTA2671

BRACKET - fuel tank, front (Gasoline manifolds) (See VTA2672)

1шт.

VTA2672

BRACKET - fuel tank, front (Low cost fuel manifolds) (See VTA2671)

1шт.

VTA3413

BRACKET - support, rear (Tractors no. 6014292 thru no. 6014314) (See VTA20)

1шт.

25904

VALVE - fuel strainer, parts for 03990AB1

1шт.

NLS

NO LONGER SERVICED

GASKET - fuel strainer, parts for 03990AB1

1шт.

32276

BOWL - fuel strainer, parts for 03990AB1

1шт.

32277

CUP AND NUT - fuel strainer, parts for 03990AB1

1шт.

32278

ROLLER

SCREEN ASSEMBLY - fuel strainer, parts for 03990AB1

1шт.

32279

ADAPTER

BALL ASSEMBLY - fuel strainer, parts for 03990AB1

1шт.

80038696

BRACKET

HEAD - fuel strainer, parts for 03990AB1

1шт.
