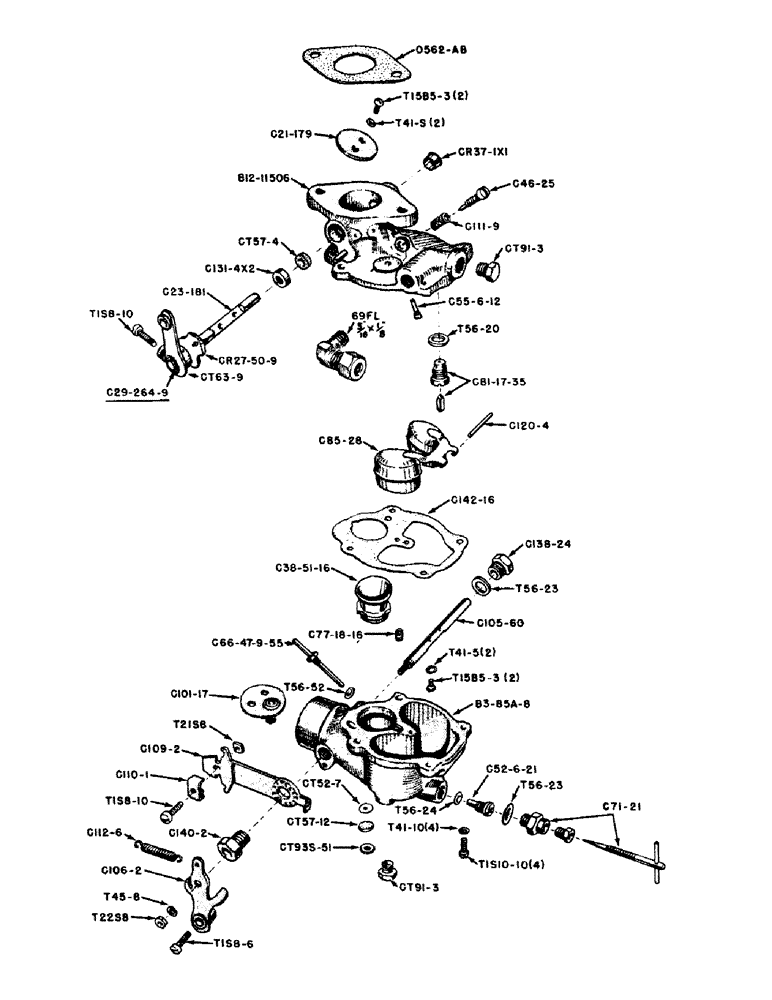

Запчасти Case IH VAI-SERIES (022) - VTA4703 ZENITH CARBURETORS (03) - FUEL SYSTEM

B1211506

BODY - throttle, assembly

1шт.

CT574

WASHER - shaft packing

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C1314X2

RETAINER - shaft packing

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

CR371X1

PLUG - shaft hole

1шт.

C292649

SHAFT AND LEVER - throttle

1шт.

C23181

SHAFT - throttle

1шт.

CR27509

LEVER - throttle stop

1шт.

CT639

TAPER PIN - lever

1шт.

T1S810

SCREW - lever stop

1шт.

C21179

PLATE - throttle

1шт.

T15B53

SCREW - throttle plate

2шт.

Part of Service Parts Kit, P/N K11506

1шт.

T41S

LOCKWASHER FOR T15B5-3

2шт.

C4625

NEEDLE - idle adjusting

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C1119

SPRING - adjusting needle

1шт.

C8528

FLOAT

1шт.

C1204

AXLE - float

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

CT913

PLUG - 1/8" pipe (Fuel inlet)

1шт.

C14216

GASKET -, Serial Range: bowl-body

1шт.

Part of Gasket Kit, P/N C18166

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

T1S1010

SCREW - bowl to body assembly

4шт.

T4110

LOCKWASHER FOR T1S10-10

4шт.

B385A8

BOWL - fuel

1шт.

CT527

WASHER - intake drain

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

CT5712

WASHER - drain, felt

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

CT93S51

RETAINER - felt washer

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C10560

SHAFT - choke

1шт.

C10117

PLATE - choke

1шт.

T15B53

SCREW - choke plate

2шт.

Part of Service Parts Kit, P/N K11506

1шт.

T415

LOCKWASHER FOR T15B5-3

2шт.

C1062

LEVER - choke

1шт.

T1S86

SCREW - lever swivel

1шт.

T22S8

NUT - choke shaft

1шт.

T458

LOCKWASHER - shaft nut

1шт.

C1092

PACKAGE

BRACKET - choke

1шт.

C1101

CYLINDER

CLAMP - bracket tube

1шт.

T1S810

SCREW - tube clamp

1шт.

T21S8

NUT - clamp screw

1шт.

C1402

SCREW - bracket assembly

1шт.

C1126

SPRING - lever return

1шт.

C7121

ADJUSTMENT - main jet

1шт.

T5623

WASHER - adjusting fibre

1шт.

Part of gasket kit P/N C18166

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C13824

PLUG - shaft hole

1шт.

T5623

WASHER - shaft hole plug fibre

1шт.

Part of gasket kit P/N C18166

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

CT913

PLUG - bowl drain (1/8" pipe)

1шт.

C385116

VENTURI

1шт.

C52621

JET - main

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

T5624

WASHER - main jet fibre

1шт.

Part of gasket kit P/N C18166

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C55612

JET - idle

1шт.

Part of gasket kit P/N C18166

1шт.

C6647955

JET - discharge

1шт.

Part of gasket kit P/N C18166

1шт.

T5652

WASHER - discharge jet fibre

1шт.

Part of gasket kit P/N C18166

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C771816

JET - well vent

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

T5620

WASHER - fuel valve seat fibre

1шт.

Part of gasket kit P/N C18166

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C811735

VALVE AND SEAT - fuel

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C14146

GASKET - flange (Not in C181-66 kit) (See O562-AB)

1шт.

Part of Service Parts Kit, P/N K11506

1шт.

C18166

KIT - gasket Includes: PN C14216, PN T5623, PN T5624, PN T5652, PN T5620

1шт.

K11506

KIT - service parts Includes: PN CT574, PN C1314X2, PN T15B53, PN C4625, PN C1204, PN C14216, PN CT527, PN CT5712, CT93S51, PN T15B53, PN T5623, PN C52621, PN T5624, PN C55612, PN C6647955, PN T5652, PN C771816, PN T5620, PN C811735, PN C14146

1шт.

O562AB

X

GASKET -, Serial Range: carburetor-manifold

1шт.

VTA4703

X

ZENITH CARBURETOR (Model 161JX7, outline #11506)

1шт.
