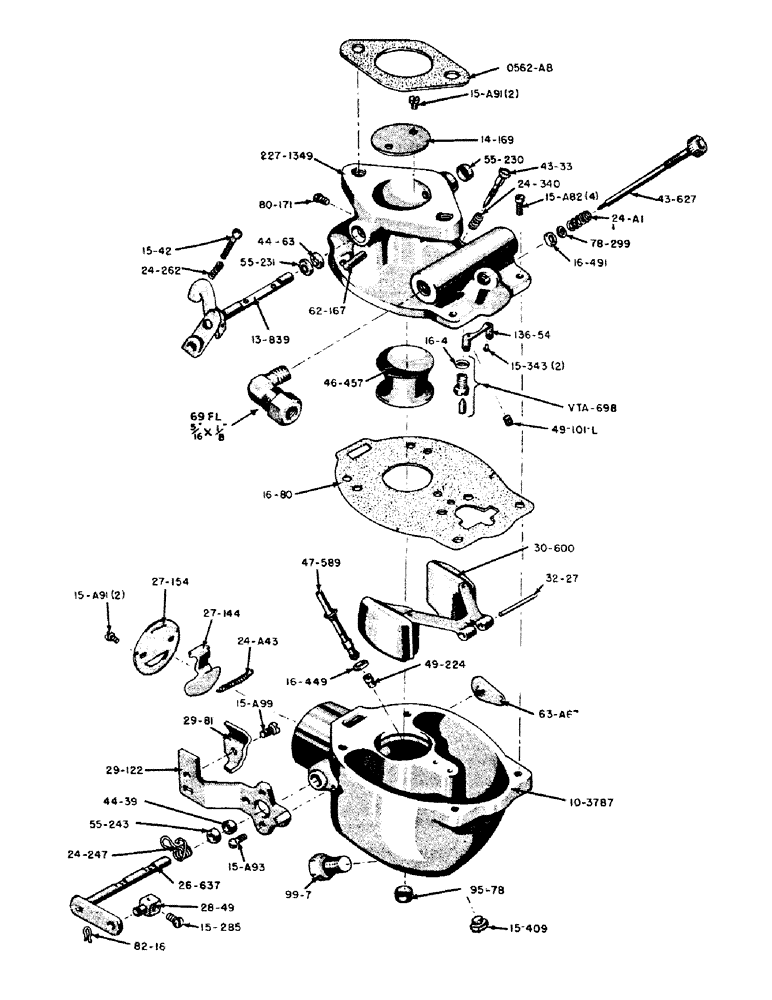

Запчасти Case IH VAI-SERIES (018) - VTA4714 MARVEL SCHEBLER CARBURETOR (03) - FUEL SYSTEM

10-3787

CARBURETOR BODY ASSEMBLY

1шт.

13-839

THROTTLE SHAFT, throttle stop and lever assembly

1шт.

Part of repair kit P/N VTA4717

1шт.

14-169

THROTTLE FLY

1шт.

15-42

SCREW - throttle stop

1шт.

15-A82

SCREW - throttle, Serial Range: body-bowl

4шт.

15-A91

SCREW - choker fly and throttle fly

4шт.

Part of repair kit P/N VTA4717

1шт.

15-A93

SCREW - choker bracket

1шт.

15-A99

SCREW - choke bracket clip

1шт.

15-285

SCREW - choker swivel

1шт.

15-343

SCREW - float, bracket

2шт.

15-409

SCREW - nozzle hole plug

1шт.

16-4

GASKET - float valve seat

1шт.

Part of gasket kit P/N VTA690

1шт.

16-80

CARRIER

GASKET - throttle, Serial Range: body-bowl

1шт.

Part of gasket kit P/N VTA690

1шт.

16-449

GASKET - main nozzle

1шт.

Part of gasket kit P/N VTA690

1шт.

16-491

GASKET - high speed needle

1шт.

Part of gasket kit P/N VTA690

1шт.

24-A1

SPRING - high speed needle

1шт.

24-A43

SPRING - choker fly flapper

1шт.

24-247

SPRING - choker return

1шт.

Part of repair kit P/N VTA4717

1шт.

24-262

SPRING - throttle stop screw

1шт.

24-340

SPRING - idle needle

1шт.

26-637

CHOKE - shaft and lever assembly

1шт.

27-144

CHOKER FLY FLAPPER

1шт.

27-154

CHOKER FLY

1шт.

28-49

CHOKER SWIVEL

1шт.

29-81

CHOKER BRACKET CLIP

1шт.

29-122

CHOKER BRACKET

1шт.

30-600

FLOAT AND LEVER ASSEMBLY

1шт.

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

FLOAT LEVER SHAFT

1шт.

Part of repair kit P/N VTA4717

1шт.

43-33

IDLE ADJUSTING NEEDLE

1шт.

Part of repair kit P/N VTA4717

1шт.

43-627

HIGH SPEED NEEDLE ASSEMBLY

1шт.

44-39

PACKING - choker shaft

1шт.

Part of repair kit P/N VTA4717

1шт.

44-63

PACKING - throttle shaft

1шт.

46-457

VENTURI

1шт.

47-589

NOZZLE ASSEMBLY

1шт.

49-101-L

JET - idle

1шт.

Part of repair kit P/N VTA4717

1шт.

49-224

JET - power

1шт.

Part of repair kit P/N VTA4717

1шт.

55-230

CUP - throttle shaft

1шт.

Part of repair kit P/N VTA4717

1шт.

55-231

RETAINER - throttle shaft packing

1шт.

Part of repair kit P/N VTA4717

1шт.

55-243

RETAINER - packing, choker shaft

1шт.

Part of repair kit P/N VTA4717

1шт.

62-167

PIN - throttle stop

1шт.

63-A67

PLATE - name

1шт.

78-299

WASHER - plain, high speed needle

1шт.

80-171

PLUG - pipe

1шт.

82-16

COTTER PIN - choker swivel

1шт.

95-78

STRAINER - gasoline

1шт.

99-4

PLUG - pipe

1шт.

99-7

PLUG - bowl drain

1шт.

136-54

PIN

BRACKET - float

1шт.

227-1349

THROTTLE BODY ASSEMBLY

1шт.

5/16" O.D. x 1/8" P.T. FITTING - elbow (Imp. no. 69-FL) with sleeve and nut

1шт.

O562-AB

GASKET - carburetor

1шт.

VTA690

X

GASKET ASSEMBLY, Includes: Ref. P/N 16-4, 16-80, 16-449, 16-491

1шт.

VTA698

X

FLOAT VALVE, set and gasket assembly

1шт.

VTA4717

X

REPAIR KIT, Includes: Ref. 13-839, 15-A91, 24-247, 32-27, 43-33, 44-39, 49-101-L, 49-224, 55-230, 55-231, 55-243

1шт.
