Запчасти Case IH VAI-SERIES (016) - MARVEL SCHEBLER CARBURETORS, VT3593 AND VT4062, VT3593 CARBURETOR, (03) - FUEL SYSTEM

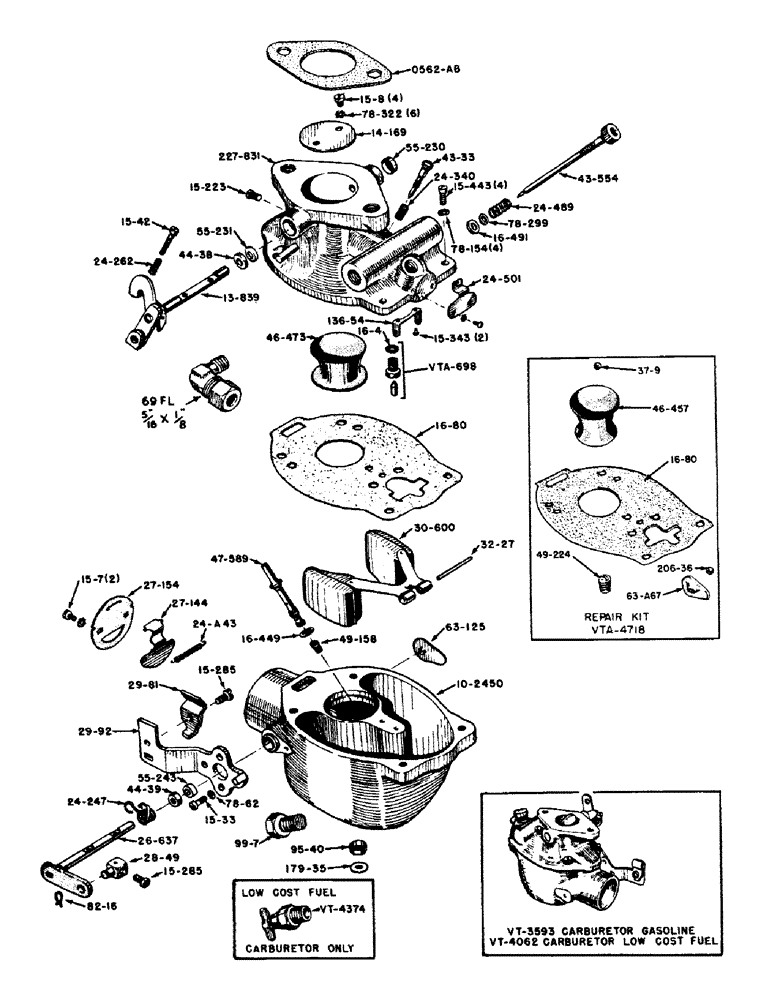

Схема запчастей Case IH VAI-SERIES - (016) - MARVEL SCHEBLER CARBURETORS, VT3593 AND VT4062, VT3593 CARBURETOR, (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

10-2450

CARBURETOR BODY ASSEMBLY

1шт.

13-839

THROTTLE SHAFT - throttle stop, and lever

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

14-169

FLY - throttle

1шт.

15-7

BALL BEARING,2.25" ID x 3.5625" OD x 1.969"

SCREW

2шт.

Part of carburetor repair kit P/N VTA697

1шт.

15-8

BALL

SCREW

4шт.

Part of carburetor repair kit P/N VTA697

1шт.

15-33

BEARING

SCREW

1шт.

15-42

SCREW

1шт.

15-223

SCREW

1шт.

15-285

SCREW

2шт.

15-343

SCREW

2шт.

15-443

SCREW

4шт.

16-4

GASKET

1шт.

Part of gasket kit P/N VTA690

1шт.

16-80

CARRIER

GASKET

1шт.

Part of gasket kit P/N VTA690

1шт.

16-449

GASKET

1шт.

Part of gasket kit P/N VTA690

1шт.

16-491

GASKET

1шт.

Part of gasket kit P/N VTA690

1шт.

24-A43

SPRING

1шт.

24-247

SPRING

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

24-262

SPRING

1шт.

24-340

SPRING

1шт.

24-489

SPRING

1шт.

24-501

HIGH SPEED ADJUSTING SPRING ASSEMBLY

1шт.

26-637

CHOKE SHAFT AND LEVER ASSEMBLY

1шт.

27-144

CHOKER FLY FLAPPER

1шт.

27-154

CHOKER FLY

1шт.

28-49

CHOKER SWIVEL

1шт.

29-81

CHOKER BRACKET CLIP

1шт.

29-92

CHOKER BRACKET

1шт.

30-600

FLOAT AND LEVER ASSEMBLY

1шт.

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

FLOAT LEVER SHAFT

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

43-33

IDLER ADJUSTING NEEDLE

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

43-554

HIGH SPEED NEEDLE ASSEMBLY

1шт.

44-38

PACKING

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

44-39

PACKING

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

46-473

VENTURI

1шт.

47-589

NOZZLE

1шт.

49-101-I

JET (Idle)

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

49-145

JET (Economizer)

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

49-158

JET (Power)

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

55-230

CAP

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

55-231

RETAINER

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

55-243

RETAINER - packing

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

63-125

PLATE - name

1шт.

78-62

WASHER - lock no. 8

1шт.

78-154

WASHER - lock no. 12

4шт.

78-299

WASHER - plain

1шт.

78-322

WASHER - lock

6шт.

82-16

PIN - cotter

1шт.

95-40

WASHER,2 1/2" x 5" x .238"

STRAINER

1шт.

99-7

PLUG - drain (Gasoline carburetor only)

1шт.

136-54

PIN

BRACKET - float

1шт.

179-35

PLUG

1шт.

227-831

THROTTLE BODY ASSEMBLY

1шт.

5/16" O.D. x 1/8" complete elbow with sleeve and nut

1шт.

O562AB

X

GASKET - carburetor

1шт.

VT4374

COCK - drain (Low cost fuel carburetor only)

1шт.

VTA690

X

GASKET KIT, Includes: Ref. P/N 16-4, 16-80, 16-449, 16-491

1шт.

Part of carburetor repair kit P/N VTA697

1шт.

VTA697

X

CARBURETOR REPAIR KIT, Includes: Ref. 13-839, 15-7, 15-8, 24-247, 32-27, 43-33, 44-38, 44-39, 49-101-I, 49-145, 49-158, 55-230, 55-231, 55-243, VTA690

1шт.

VTA698

X

FLOAT - valve, seat and gasket assembly

1шт.

16-80

CARRIER

GASKET, CARBURETOR CONVERSION KIT (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

37-9

BALL - lead, CARBURETOR CONVERSION KIT (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

46-457

VENTURI, CARBURETOR CONVERSION KIT (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

49-224

JET - power, CARBURETOR CONVERSION KIT (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

63-A67

NAME PLATE, CARBURETOR CONVERSION KIT (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

206-36

X

BALL - name plate, CARBURETOR CONVERSION KIT (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

VTA4718

CARBURETOR CONVERSION KIT (Includes above parts), (TO CONVERT VT3593 OR VT4062 TO VTA4714)

1шт.

Выбрано товаров: 84
